Chapter 2 : CONNECTING (continued)
2-1. CONNECTING THE NATIX™ (continued)
2-1-2. OUTPUT 1 AND OUTPUT 2
The device is equipped with 2 outputs 1 on HD15 female connector, and two outputs 2 on HD15 female connector.
Connect the display devices and the control monitor to the output 1 & 2.

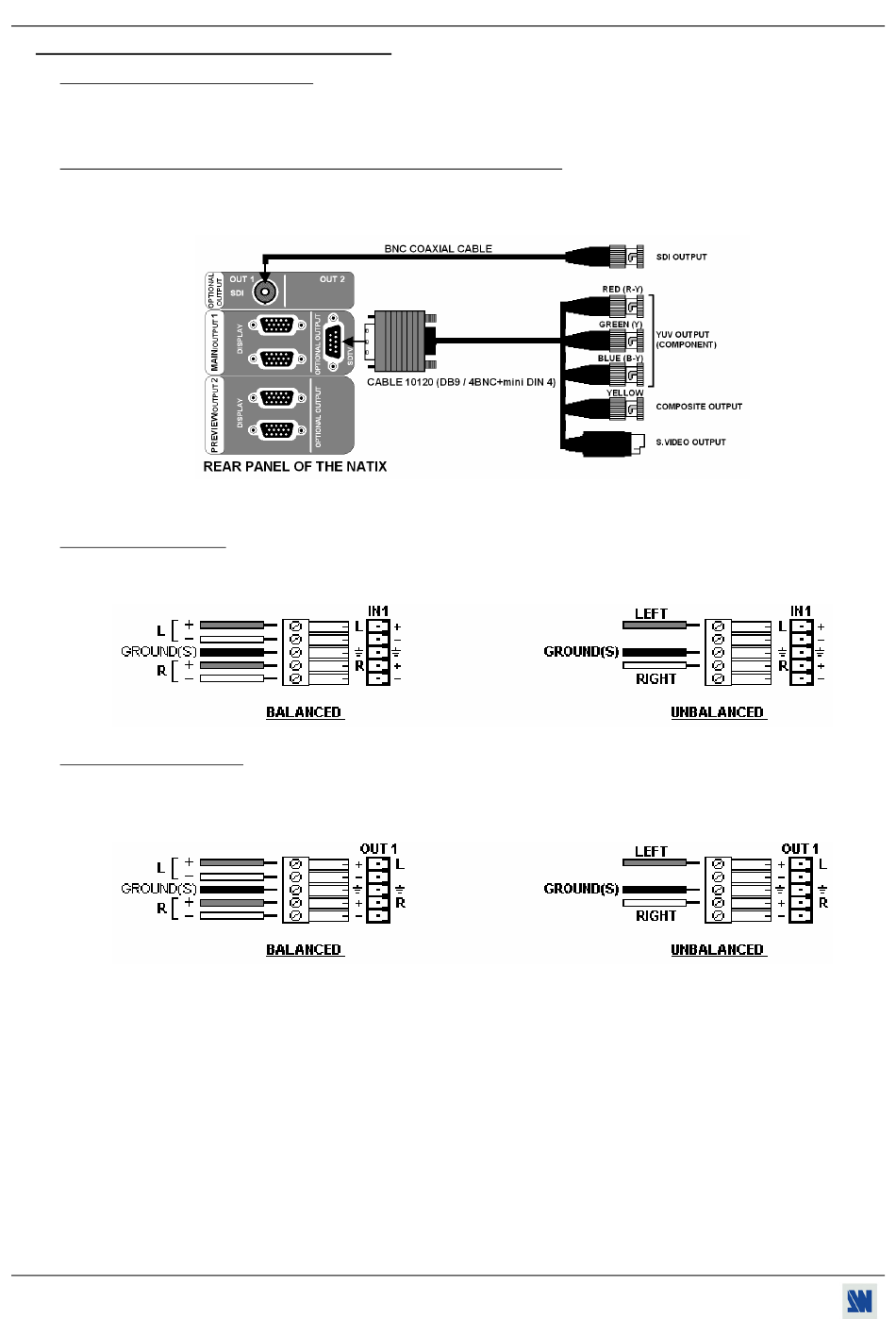

2-1-3. OPTIONAL SDTV VIDEO OUTPUT (OPT-iX-SDTVD1 option)
The device equipped with this option provides simultaneously 4 SDTV video output signals (composite video,
S.VIDEO, YUV and SDI). These four video outputs display the same image as the output 1. Therefore you can
record your presentation onto one or many video recorders of your choice.
2-1-4. AUDIO INPUTS
The device is equipped with 8 audio inputs & 1 auxiliary input (on 5-pin MCO male connectors). This connector allows
connecting BALANCED or UNBALANCED audio sources. Connect your audio sources as follow:
2-1-5. AUDIO OUTPUTS
The device is equipped with 2 audio outputs (MAIN / OUT1 & PRELIST / OUT2 on 5-pin MCO male connectors).
This connector allows connecting BALANCED or UNBALANCED audio systems. Connect your audio systems as
follow:
PAGE 14
Figure 10
