QUICK START GUIDE
Thank you for choosing Analog Way and the Opus. By following these simple steps, you should be able
to setup and use your powerful scaler/switcher within minutes. Discover the Opus extensive capabilities
and intuitive interface while configuring your first show, and unleash your creativity for a new experience
in show and event management by Analog Way.
What's in the box
1 x Opus seamless scaler/switcher
1 x Power supply cord
2 x DVI male to HD15 female and DVI female cable
1 x HD15 to 5 BNC cable
1 x Ethernet cross cable
1 x DB9 to 4 BNC cable + mini-Din 4
1 x Set of 3 audio 10 pin screw terminals
1 x RCS CD-ROM (PC only)
1 x User manual
1 x Quick Start guide

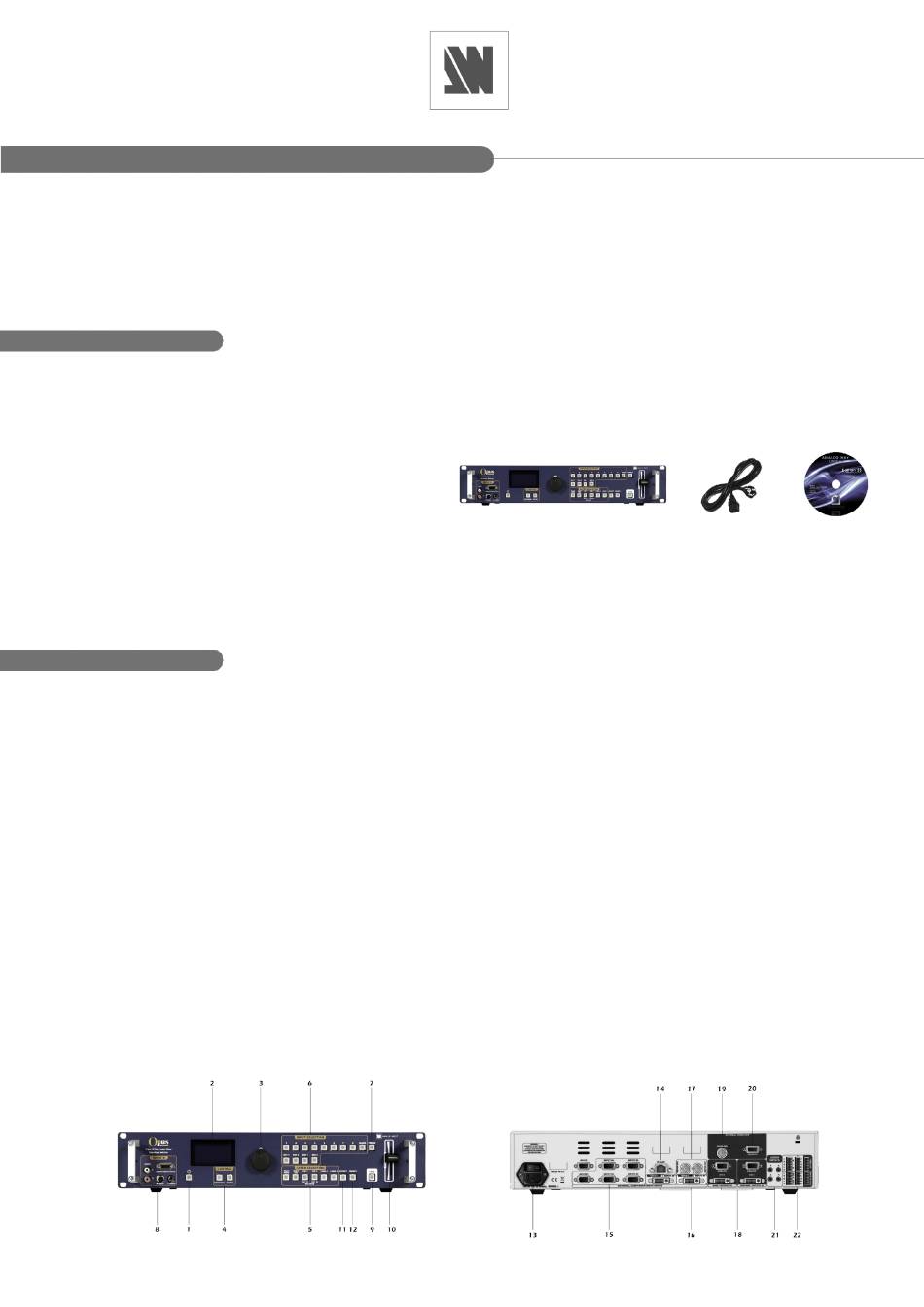

Opus Overview
The Opus front panel is comprised of several sections, each carefully labelled and self explanatory,
corresponding to all of the machine's versatile functions.
The STANDBY button (1) will allow users to turn the device on and off once the main outlet switch (13) is
turned on. The menu screen (2), menu scroll knob (3), and Control section (4) will give users access to the
Opus menu. The Layer Selection section (5) will allow users to select which layer the Opus will work on,
while the Input Selection section (6), determines which of the 12 available input sources will be used in
that layer. The FREEZE button (7) allows users to take a snapshot of the current state of a source. AV input
#8 (8) is a handy front panel universal audio/video source input. The TAKE button (9), and the T-Bar (10) of
the Opus will let you switch from the Preview output, to the Main output (18). The EFFECT button (11) and
the PRESET button (12) are both shortcuts to Opus menu functions (Layer Effects and Presets).
The rear panel of the Opus will let you connect all your inputs sources and outputs to your device. Plug
universal analog sources (15), DVI-I sources (16) or HD-SDI sources (17) to your Opus. Connect an HD or
universal analog recording/broadcasting device to your Opus video output (19 and 20), audio inputs and
outputs (21 and 22), and a remote controller to the IP/LAN connector (14).
