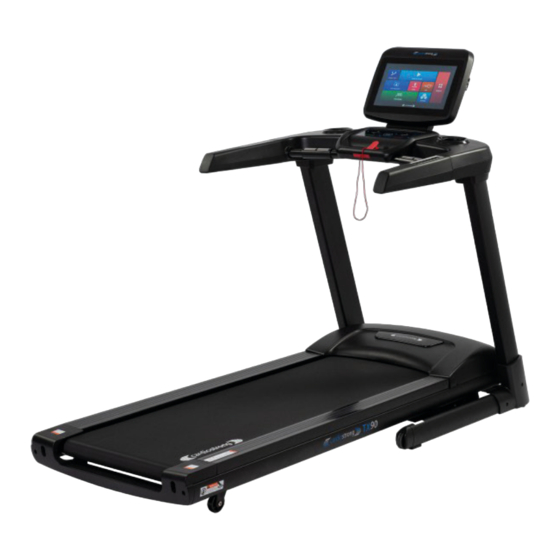

CARDIOSTRONG TX90 Assembly And Operating Instructions Manual

For more information, please visit cardiostrong.com, sport-tiedje.com
Hide thumbs Also See for TX90:
Table of Contents

Advertisement

Quick Links

Assembly and operating instructions
CSTTX90.02.01
Art.-No. CST-TX90-2
Treadmill
TX90

Advertisement

Table of Contents
loading

Related Manuals for CARDIOSTRONG TX90

Summary of Contents for CARDIOSTRONG TX90

  • Page 1 Assembly and operating instructions CSTTX90.02.01 Art.-No. CST-TX90-2 Treadmill TX90...
  • Page 2 TX90...
  • Page 3 Dear Customer, Thank you for deciding for a high-quality training equipment of the brand cardiostrong®, the brand that makes athlete‘s hearts beat faster. cardiostrong® offers a wide range of home fitness equipment like elliptical cross trainers, ergometers, treadmills and rowing machines. cardiostrong® equipment is the optimal equipment for all those who want to train at home independent of goals and fitness level.

  • Page 4: Table Of Contents

    4.3.4 User-defined programmes 4.3.5 Heart rate-oriented programmes 4.4 Fitness test 4.5 Media 4.6 Heart rate measuring WARRANTY INFORMATION DISPOSAL ORDERING ACCESSORIES ORDERING SPARE PARTS 8.1 Service hotline 8.2 Serial number and model name 8.3 Parts list 8.4 Exploded drawing TX90...

  • Page 5: General Information

    GERNERAL INFORMATION Technical data TFT display of speed in km/h training time in min training distance in km calories burnt in kcal heart rate (when using the hand sensors or a chest strap) incline in % Motor output: 3.5 HP continuous output (DC motor) Speed range: 1 - 20 km/h Speed hot keys:...

  • Page 6: Personal Safety

    Without prior agreement from your authorized contract partner, opening the equipment is prohibited. The equipment has stable steps on the sides that you can stand on in case of an emergency and leave the equipment. The safety key should be inserted during all training. TX90...

  • Page 7: Electrical Safety

    Safety Key The equipment has an EMERGENCY STOP mechanism for your safety. The equipment may only be operated when the safety key is properly attached to the contact point of the cockpit. The equipment will automatically stop immediately if the safety key is no longer on the contact point.

  • Page 8: Set-Up Place

    The equipment should be placed on a level and solid surface, any unevenness in the floor should be leveled out. A floor protective mat / equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. TX90...

  • Page 9: Assembly Instructions, Maintenance And Care

    You should therefore immediately replace damaged or worn components. Please contact your contract partner in such a case. The equipment should no longer be used until it has been repaired. When needed, only use original cardiostrong® spare parts. Check the tightness of all screw connections once a month.

  • Page 10: Faults And Troubleshooting

    WLAN, mover- the room and cleaning robot, etc.) With chest strap Use suitable chest strap (see Unsuitable chest strap No pulse display recommended accessories) Position of the chest strap Reposition chest strap and/or moisten incorrect electrodes Batteries empty Change batteries TX90...

  • Page 11: Care And Maintenance

    Care and maintenance The most important maintenance measure is taking care of the running belt. This includes the adjustment, tensioning and lubrication of the running belt. Damage caused due to a lack of care or negligence will not be covered by the warranty. Thus, check for maintenance in regular intervals. Be extremely careful when adjusting and tightening the belt, because a strong over or under tension may lead to damage.
  • Page 12 This maintenance must also be done after the equipment has not been used for a longer pe- riod of time. Note: The lubricating oil is included in delivery. Alternatively you can use silicone spray instead of the lubricating oil. TX90...

  • Page 13: Maintenance And Service Calendar

    Maintenance and service calendar The cockpit, casing, handrails and entire frame must be cleaned after every training session with a moist towel (no solvent!) in order to avoid damage caused by sweat. After every 150 hours of operation the treadmill should be cleaned and inspected thoroughly. The following routine work must be done in the specified time intervals: Part Weekly...

  • Page 14: Assembly

    ASSEMBLY Package contents The package contains the parts represented in the illustration, including a power cable with mains plug. If one of the illustrated parts is missing, please contact your contract partner. TX90...

  • Page 15: Assembly Instructions

    Assembly instructions Assembly instructions Step 1 Step 1 1. Connect the two cables (115 and 116) with one another. 1. Connect the two cables (115 and 116) with one another. Caution: Be careful not to pinch the cables in the following step. Caution: Be careful not to pinch the cables in the following step.
  • Page 16 Caution: Be careful not to pinch the cables in the following step. 2. Fix the handlebar (4) to the handlebar posts (2 and 3) with four allen screws (10), four spring washers (8) and four fl at washers (11). M8x1.25x30L D15.4xD8.2x2T D16xD8.5x1.2T Step2 TX90...
  • Page 17 Step 3 Step 3 1. Connect the cables (92, 93, 110 und 114) with their counterparts of the console (88). 1. Connect the cables (92, 93, 110 und 114) with their counterparts of the console (88). Caution: Be careful not to pinch the cables in the following step. Caution: Be careful not to pinch the cables in the following step.
  • Page 18 Serial number TX90...
  • Page 19 Transport and storage The treadmill is foldable and thus saves space when it is stored. It also makes it easier to transport. Folding up the treadmill 1. Turn off the on/off switch and remove the plug from the outlet. 2. Make sure that nothing is on or next to the equipment that can be spilled or knocked over or that makes it impossible to fold up the treadmill.
  • Page 20 1. Lift the treadmill on the desired side and rotate the setting screws under the main frame. 2. Rotate the screws clockwise in order to remove them and to raise the running surface. 3. Rotate them counterclockwise in order to lower the running surface. down TX90...

  • Page 21: Operating Instructions

    OPERATING INSTRUCTIONS Console display Incline Indicates the current incline level between 0 - 15 %. Distance Indicates the covered or remaining distance between 0.0 - 9999 km. Time Indicates the already elapsed or remaining training time between 00:00 – 99:59 minutes.

  • Page 22: Button Functions

    COOL DOWN With this button you can start the cool down phase at any time. Speed and incline will be reduced until the treadmill has come to a stop and has returned to its original position. TX90...

  • Page 23: Training Programmes

    Training programmes This treadmill overs many different programmes. This includes: a quick start programme, target programmes, pre-set programmes, user-defined programmes, heart rate-oriented programmes and one fitness test. 4.3.1 Quick Start When you are in the main menu, simply press the START button to start a training session via quick start.

  • Page 24: Pre-Set Programmes

    5.1 Press the STOP button again to end your training and an overview of the collected training data will be displayed. 5.2 Press the START button to continue with your training. Upon completion of the programme the console will start the cool down phase automatically. TX90...
  • Page 25 PROGRAM details Setting time / 30 = period in each section Program 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 SPD 2 INC 1 SPD 2 INC 1 SPD 2 INC 1...
  • Page 26 TX90...

  • Page 27: User-Defined Programmes

    4.3.4 User-defined programmes 1. Tap on "USER PROGRAM" in the main menu. 2. Choose one of the four user profiles (U1-U4). Note: The chosen user profile will be displayed on the upper border of the screen. The name of the user profile can be changed. To do this, simply tap on the user profile and type in the desired name.

  • Page 28: Heart Rate-Oriented Programmes

    6.1 Press the STOP-button again to end your training and an overview of the collected training data will be displayed. 6.2 Press the START-button to continue with your training. Upon completion of the programme the console will start the cool down phase automatically. TX90...

  • Page 29: Fitness Test

    Fitness test The fitness test consists of two phases. One is the warm up phase and the other is the actual fitness test. We recommend a chest strap for this test. Note: The speed will be adjusted automatically in dependence of your heart rate but you can still adjust the incline manually.

  • Page 30: Media

    Under "SETTINGS" in the main menu, you can make your system settings. This includes: Language, screen brightness and volume. Bluetooth: You can connect your mobile device and bluetooth speakers with the console. Wireless: Here you can connect the console with the internet. TX90...

  • Page 31: Heart Rate Measuring

    Heart rate measuring Pulse measurement through hand sensors The hand sensors integrated in the handles allow you to determine your heart rate. You can measure your heart rate by lightly grasping the sensors with both hands at the same time. Blood pressure changes occur due to the heartbeat.
  • Page 32 = (220 - age) x 0.9. Heart rate diagram for training intensity Maximum pulse (220-age) 90% of maximum pulse - anaerobic (maximum) intensity training 75% of maximum pulse - cardiovascular training (cardio training) 55% of maximum pulse - fat burning (weight control) TX90...

  • Page 33: Warranty Information

    WARRANTY INFORMATION cardiostrong‘s fitness equipment is subject to strict quality controls. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 34 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. TX90...

  • Page 35: Disposal

    DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an electricals recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols.

  • Page 36: Ordering Spare Parts

    9:00 - 21:00 9:00 - 18:00 10:00 - 17:00 Serial number and model name Find the serial number on the white sticker and enter it in the appropriate space. Serial number: Brand / category: Model name: cardiostrong treadmill TX90-2 TX90...

  • Page 37: Parts List

    Parts list Description Part number Specification Qty. (Supplier) Main frame 261D8-3-1000-J0 Left handlebar post 26100-3-1300-J2 Right handlebar post 26100-3-1400-J2 Handlebar 261D8-3-1500-B20 Base tube 26100-3-1600-J2 Connecting tube 26100-3-1900-J1 Allen bolt 50108-5-0020-F0 M8x1.25x20L Spring washer 55108-2-1520-FA D15.4xD8.2x2T Flat washer 55108-1-2520-FA D25xD8.5x2T Allen screw 54008-5-0030-F0 M8*1.25*30L Flat washer...
  • Page 38 Cover for transporting wheel 26100-6-1672-B0 55*80*69.4L Square buffer 26100-6-1674-B0 60*42*10.5T, 80degree Left cover for end of handlebar 261D2-6-1371-B0 299*55*211 post Right cover for end of handelbar 261D2-6-1471-B0 299*55*211 post Square cap 55310-2-2020-B1 20*20*1.5T*9.5 Square cap 55316-2-3030-B8 30*30*14 Bolt 52605-2-0010-N0 M5*0.8*10L TX90...
  • Page 39 Description Part number Specification Qty. (Supplier) Folding unit 26100-3-1650-J1 Locking bracket 26100-3-1660-J0 Inner tube of folding unit 26100-6-1652-N1 20*20*1.5T*440L Spring 58003-6-1069-N0 D1.5*14.6L Cylinder 26100-6-1661-B0 760*53KG Allen bolt 50308-5-0030-F0 M8*1.25*30 Hollow cap 26100-6-1676-B0 30*30*65L Allen bolt 50308-5-0050-F3 M8*1.25*50 Allen screw 54006-5-0035-F3 M6*1.0*35L Nylon nut 55206-1-2006-FA...
  • Page 40 Safety key 26200-6-1732-R0 78.6*35*18.2 Left speaker 261D8-6-1722-01 B00202050,4Ω 3W，300L Inner case of safety key 26100-6-1734-B0 39*15*13.3 Safety key board 26200-6-1733-B0 74*45*7 Safety clip 26200-6-1793-R0 830L Emergency stop pin 26100-6-1731-C1 21*18*1.5T Tablet pad 261D8-6-1777-B0 Cable for emergency stop 261D8-6-1736-00 450L function TX90...
  • Page 41 Description Part number Specification Qty. (Supplier) Electric cable 26100-6-1775-02 1700L Filter 26100-6-1067-01 Inductance 26100-6-1066-00 Upper computer cable 261D8-6-1771-01 650L Middle computer cable 261D8-6-1772-00 1100L Lower computer cable 261D8-6-1773-00 1250L neutral wire 1 26100-6-1791-00 100L neutral wire 2 26100-6-1792-00 190L live wire 1 26100-6-1789-00 100L live wire 2...

  • Page 42: Exploded Drawing

    Exploded drawing TX90...
  • Page 43 DISCLAIMER ©2010 cardiostrong® is a registered brand of the company Sport- Tiedje GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Sport-Tie- dje is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
  • Page 44 Notes TX90...
  • Page 45 Notes...
  • Page 46 Notes TX90...
  • Page 48 Treadmill TX90...
