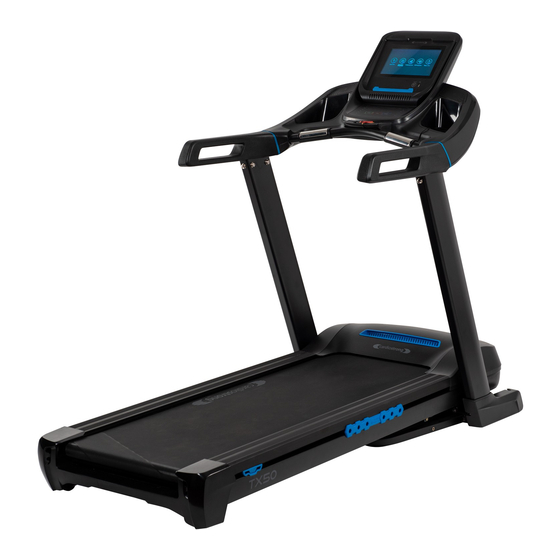

- Page 1 Assembly and Operating Instructions max. 130 kg ~ 60 Min. 100 kg L 187 | B 84.5 | H 146 CSTTX50.03.03 Art. No. CST-TX50-3 Treadmill TX50...
- Page 2 TX50...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Overview Assembly OPERATING INSTRUCTIONS Console Display Button Functions Home Screen Buttons Programmes 3.4.1 Quick Start Programme 3.4.2 Manual Programme 3.4.3 Pre-set Programmes 3.4.4 Heart Rate Control Programmes 3.4.5 Fitness-Test Mirror Function STORAGE AND TRANSPORT... - Page 4 Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List WARRANTY CONTACT TX50...
- Page 5 Train at home no matter what the weather or time of the day. cardiostrong fitness equipment offers training programmes and a variety of equipment for all training levels and all training goals. Further information can be found at www.sport-tiedje.com or www.cardiostrong.de.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data TFT - Display of: Training time Speed Calories Distance Steps Heart rate (when using the hand pulse sensors or a chest strap) Programmes in total: Manual programme (Quick Start): Target programmes: Pre-set programmes: Heart rate controlled programmes: User-defined programmes: Motor type: DC motor... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Make sure that there is a safety area behind the treadmill with a length of at least 2 m and a width at least equal to the width of the treadmill. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING The treadmill is equipped with high- pressure shock absorbers that can cause the treadmill to suddenly open if handled... -
Page 12: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... - Page 13 Hardware package...
-
Page 14: Overview
Overview TX50... -
Page 15: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Checking the Scope of Delivery Take all parts that are included in the scope of delivery out of the box and place them on the... - Page 16 Step 2: Assembly of the Upright Posts Attach the two upright posts (85) to the main frame with four bolts (86), four spring washers (87) and four spring washers (88) each. ATTENTION Be careful not to pinch the cables in the following step. TX50...
- Page 17 Step 3: Assembly of the Console Unit Connect the cable of the right upright post (23) to the cable of the console unit (108). ࣑ ATTENTION Be careful not to pinch the cables during the next step. Place the console unit on both upright posts (85). Mount the console unit to both upright posts (85) with three bolts (86), three spring washers (87), and three spring washers (88) on each side.
- Page 18 Step 4: Assembly of the Covers Mount the covers (68) to both sides of the treadmill with two screws (69) on each side. Remove the packaging fixed plate (77) by removing both screws (78). NOTICE: Do not dispose of the packaging fixed plate and screws. Assemble it once you want to transport the treadmill in folded condition.
- Page 19 Step 5: Alignment of the Feet If the floor is uneven, you can stabilize the treadmill by turning the two setting screws under the main frame. ⚠ WARNING The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly.
-
Page 20: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit. -
Page 21: Console Display
Console Display Display Description Display of the current speed in km/h Display range: 0.8–18 km/h SPEED Setting range: 0.8-18 km/h (Adjustable in steps of 0.1 km/h increments) PULSE Display of the current heart rate in beats per minute Display of the current inclince level Display range: 0–15 INCLINE Setting range: 0–15 (Adjustable in steps of 1) -
Page 22: Button Functions
Button Functions Taste Beschreibung INCLINE ▲▼ Press to increase or decrease the incline level. START Press to start a program. Press during a paused program to continue the program. Press to pause a program. PAUSE STOP Press during the program to pause a program. SPEED ▲▼... -
Page 23: Home Screen Buttons
Home Screen Buttons A. Quick Start This program allows you to start exercising and use your desired incline or speed and time. B. Manual This program allows you to set a desired workout time as well as age and weight. C. -
Page 24: Programmes
Programmes In total, 23 programmes are available to you: Quick Start programme: 1 Manual programme: 1 Pre-set programmes: 17 Heart rate controlled programmes: 2 User-defined programmes: 2 3.4.1 Quick Start Programme To start the programme, tap the Quick Start button. The treadmill will start with a speed of 0.8 km/h. -
Page 25: Pre-Set Programmes
3.4.3 Pre-set Programmes Pre-set programmes is sub-divided into four categories: Weight Loss, Sport Training, and Healthy Living. The custom user category will be expanded upon in chapter 3.3.4. A total of 17 pre-defined profile programs are available, which differ in duration, intensity and intensity changes. When selecting the program, you can decide whether the intensity changes by changing the incline value or the speed. - Page 26 P-01: Long, Slow Distance (40 min. default) This is a great training for everyone. Beginners start with an easy workout and include this programme in their weekly workouts to maximize cardiovascular endurance. On days that follow a hard, intensive workout, this program is ideal for experienced users. P-02: Short Interval (20 min.
- Page 27 Advanced Programmes: P-04: Long Interval (40 min. default) These exercises are amazing to maximise your calories consumption and improve your anaerobic fitness. Just like the moderate intervals, after every high-intensity interval comes a recovery interval - for an incrementally increasing training intensity. P-05: Negative Interval 1 (30 min.
- Page 28 P-08: Uphill Climb (30 min. default) Incrementally increase your training intensity with this workout. During this training, you want to stimulate your body in order to improve your circulatory system and maximise muscle cell growth. Your body will be able to train over a longer period of time and will profit from the high intensity. P-09: Pyramid Climb (30 min.
- Page 29 P-13: Steady Pace (40 min. default) Improve your fitness and stimulate your body to burn more fat. This is an ideal support to improve your endurance. Most exercises of this type focus on maintaining the muscle load throughout the workout. Your goal is to train at an intensity that goes from low over moderate to high throughout your workout.
- Page 30 3.1.1 Custom User Programmes There are two user programmes that provide you with the ability to build custom programme profiles for your specic workout requirements. These programmes are saved by the console and can be selected like the other pre-set programmes. Tap “Pre-set Programmes”...
-
Page 31: Heart Rate Control Programmes
3.4.4 Heart Rate Control Programmes ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. NOTICE A chest strap is required to use the heart rate controlled programmes. -
Page 32: Fitness-Test
Heart Rate Control Programme (Interval) Provides a anaerobic endurance training by exercising at a high target heart rate and a low recovery heart rate. NOTICE After a 3 minute warm-up period, the Treadmill will automatically adjust the incline level or speed to the selected maximum target heart rate, depending on the selected mode. -
Page 33: Mirror Function (Screencasting)
Mirror Function This treadmill offers you the possibility to transfer the display of your mobile device to the console of the treadmill. There are two ways you can start the mirror function: From the main menu: To set up the mirror function, tap on the icon at the bottom of the screen. During the workout: To start the mirror function, tap the icon at the bottom of the screen. -
Page 34: Start Mirror Function During Workout
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 35: Storage And Transport
4.3.1 Folding Up the Treadmill ⚠ WARNING Do not connect the equipment to the power supply when it is folded up. Try not to operate the equipment when it is folded up. The running surface must have come to a complete stop before folding. ⚠... -
Page 36: Folding Up The Treadmill
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 37: Troubleshooting, Care And Maintenance
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. E1 error code after 3-8 seconds of use This error code will most likely be caused by an insufficient cable connection or by an issue with the speed sensor. -
Page 38: Error Codes And Troubleshooting
Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. -
Page 39: Care And Maintenance
5.4.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment. -
Page 40: Re-Tensioning The Running Mat
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Display console Tension of the running mat Lubrication of the running mat... -
Page 41: Maintenance And Inspection Calendar
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 42: Recommended Accessories
It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: cardiostrong / treadmill Model Name: treadmill TX50 Article Number: CST-TX50-3 TX50... -
Page 43: Ordering Spare Parts
Parts List Name Qty. Welding treadmill frame Motor seat frame Socket head bolts M8x16 Spring washer Ø8x2.1 Washer Ø8x1.6 Socket head bolts M8x55 Inner socket head screws M8x90 DC motor (DC180V 2.5HP) Incline motor Socket head bolts M10x45 Spring washer Ø10x2 Hexagon lock nut M10 Socket head bolts M10x60 driver... -
Page 44: Parts List
Philips countersunk head screw M8x25 Hexagon lock nut M8 Rubber part Philips countersunk head screw M8x35 Motor cover 1 Socket head bolts M5x10 Washer Ø5x 1 "ST4.2x13 Crosstroughpanheadself-drillingscrew" Motor cover 2 Motor cover insert 7 pin connector Rear wheel Socket head bolt M8x45 "ST4.8x16 Crosstroughpan headself-drillingscrew"... - Page 45 cylinder (760x527-45KG) Socket head bolt M8x35 Socket head bolt M8x50 Inner socket head screws M8x16 Rubber gasket Spring washer Ø8x2.1 Spring washer Ø8x1.6 Right arm insert Right arm "ST4.8x25 Crosstroughpan headself-drillingscrew" Packaging xed plate Cross trough pan head screw M6x16 left down cover right down cover left column...
- Page 46 Right cup insert "ST3x8 Crosstroughpan headself-drillingscrew" Heart Rate base "ST2.9x16 Crosstroughpan headself-drillingscrew" Left arm insert Left arm Console overlay Keypad overlay Quick incline overlay Quick speed overlay Rail end cover TX50...
- Page 47 Exploded Drawing EXPLODED DRAWING 1...
- Page 48 EXPLODED DRAWING 2 TX50...
- Page 49 WARRANTY Training equipment from cardiostrong® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
-
Page 50: Warranty
Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance. - Page 51 CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
-
Page 52: Contact
