host. The communication parameters of the terminal serial port can be set to a rate of
9600bps, eight data bits, one stop bit, no sum check bit and traffic control.

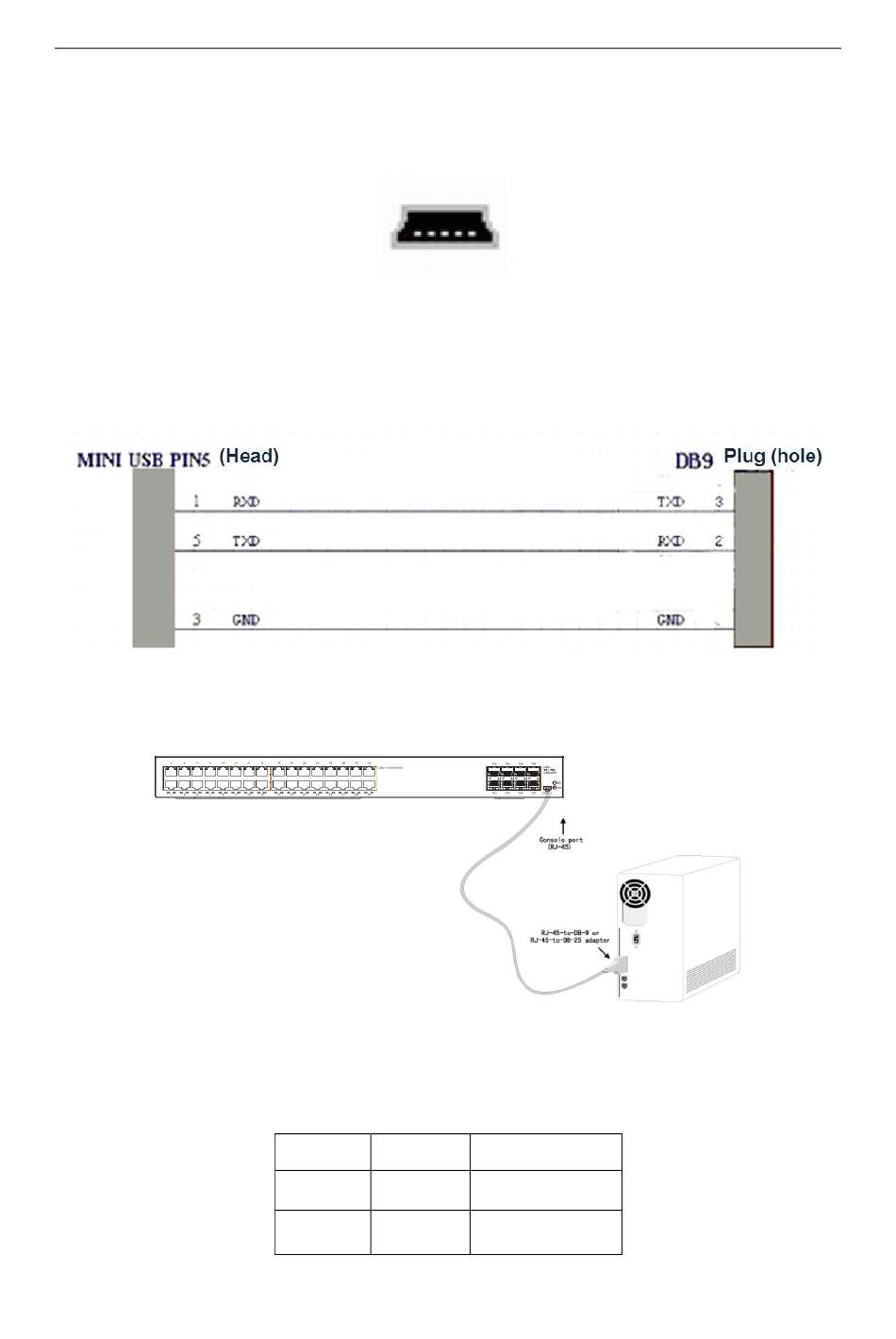

The Mini USB connector of Console port:
Figure 3-3 The mini USB connector of the console port
One end of the cable is a mini USB plug and the other end is a 9-hole plug (DB9). See
the following figure:
Figure 3-5 Connecting the console port of S3740 and computer
Figure 3-4 Cable connection at the console port
Table 3-1 Pins of the console port
NO. Name
1 RXD
2
S3740 Hardware Installation Manual
Remarks
Input
No connect
