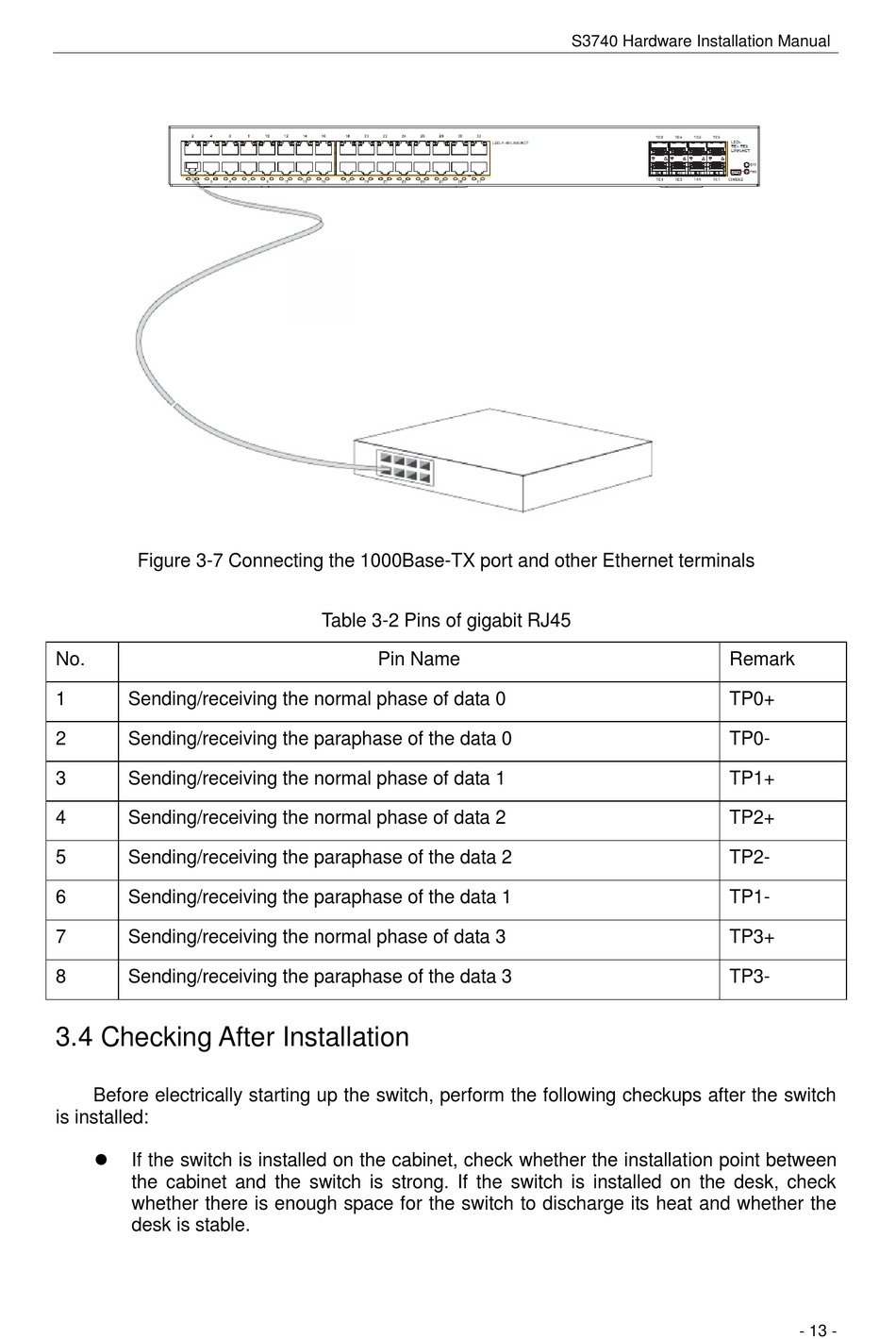

Figure 3-7 Connecting the 1000Base-TX port and other Ethernet terminals
No.
1 Sending/receiving the normal phase of data 0
2 Sending/receiving the paraphase of the data 0
3 Sending/receiving the normal phase of data 1
4 Sending/receiving the normal phase of data 2
5 Sending/receiving the paraphase of the data 2
6 Sending/receiving the paraphase of the data 1
7 Sending/receiving the normal phase of data 3
8 Sending/receiving the paraphase of the data 3

3.4 Checking After Installation

Before electrically starting up the switch, perform the following checkups after the switch
is installed:

If the switch is installed on the cabinet, check whether the installation point between
the cabinet and the switch is strong. If the switch is installed on the desk, check
whether there is enough space for the switch to discharge its heat and whether the
desk is stable.
Table 3-2 Pins of gigabit RJ45
Pin Name
S3740 Hardware Installation Manual
Remark
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
- 13 -
