4. Removal of Horizontal Blades / Vertical Blades

Procedure
Step

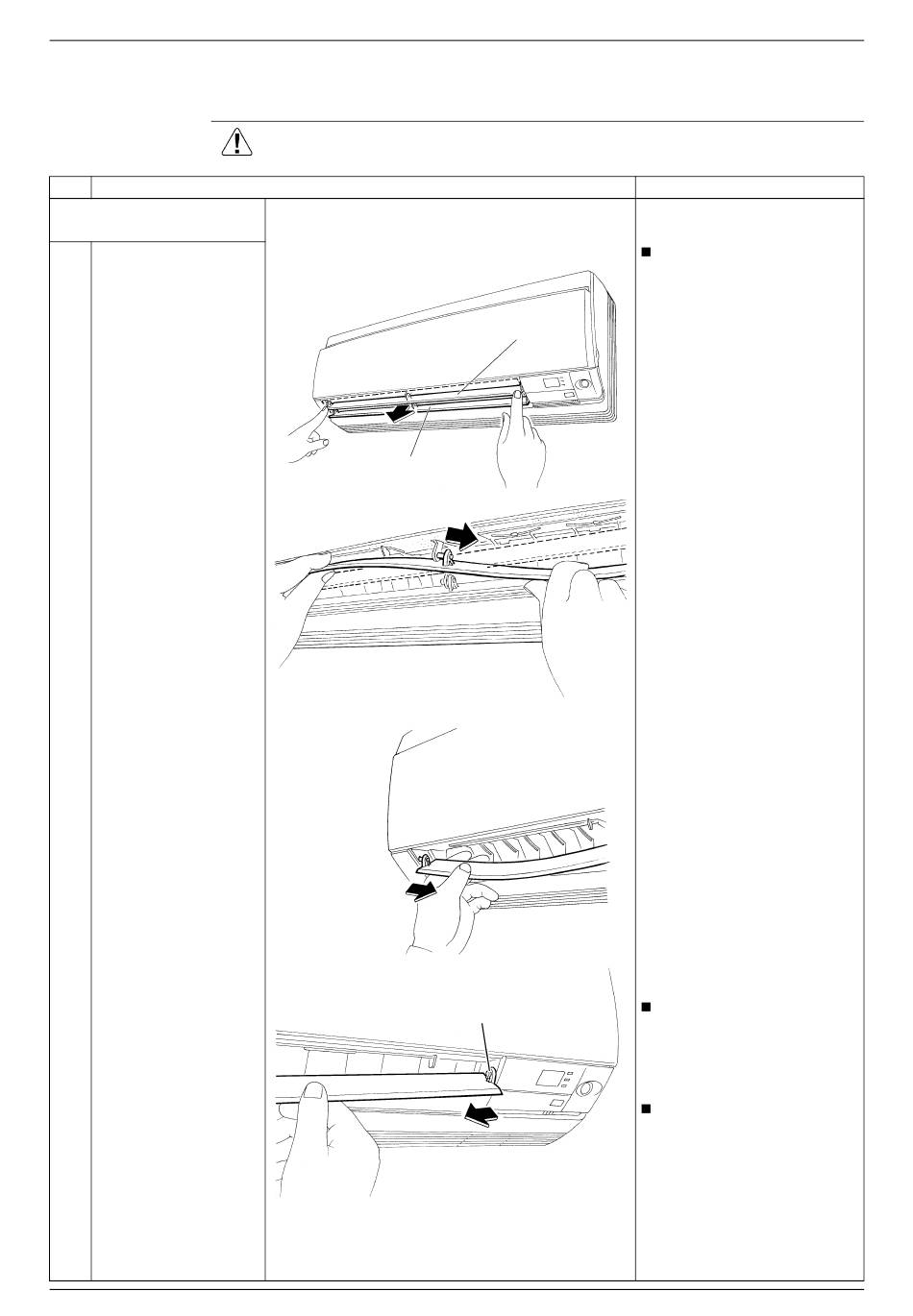

1. Remove the horizontal
blade (large).
1 Open the horizontal
blade (large).
Unfasten the center
2
shaft while bending the
horizontal blade (large)
slightly.
Unfasten the left shaft.
3
4 Unfasten the right shaft.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Horizontal blade (small)
Removal of Horizontal Blades / Vertical Blades
Horizontal blade (large)
(R11233)
(R4329)
(R4330)
Key alignment
(R4331)
Points
When reassembling, mount
the large horizontal blade to
the upper position and the
small horizontal blade to the
lower position.
Do not put them in the
wrong place.
There is a key alignment at
the right shaft. When
reassembling, insert the
right shaft first while turning.
After inserting the right
shaft, mount the horizontal
blade to the center shaft and
then to the left shaft.
