Removal of Horizontal Blades / Vertical Blades

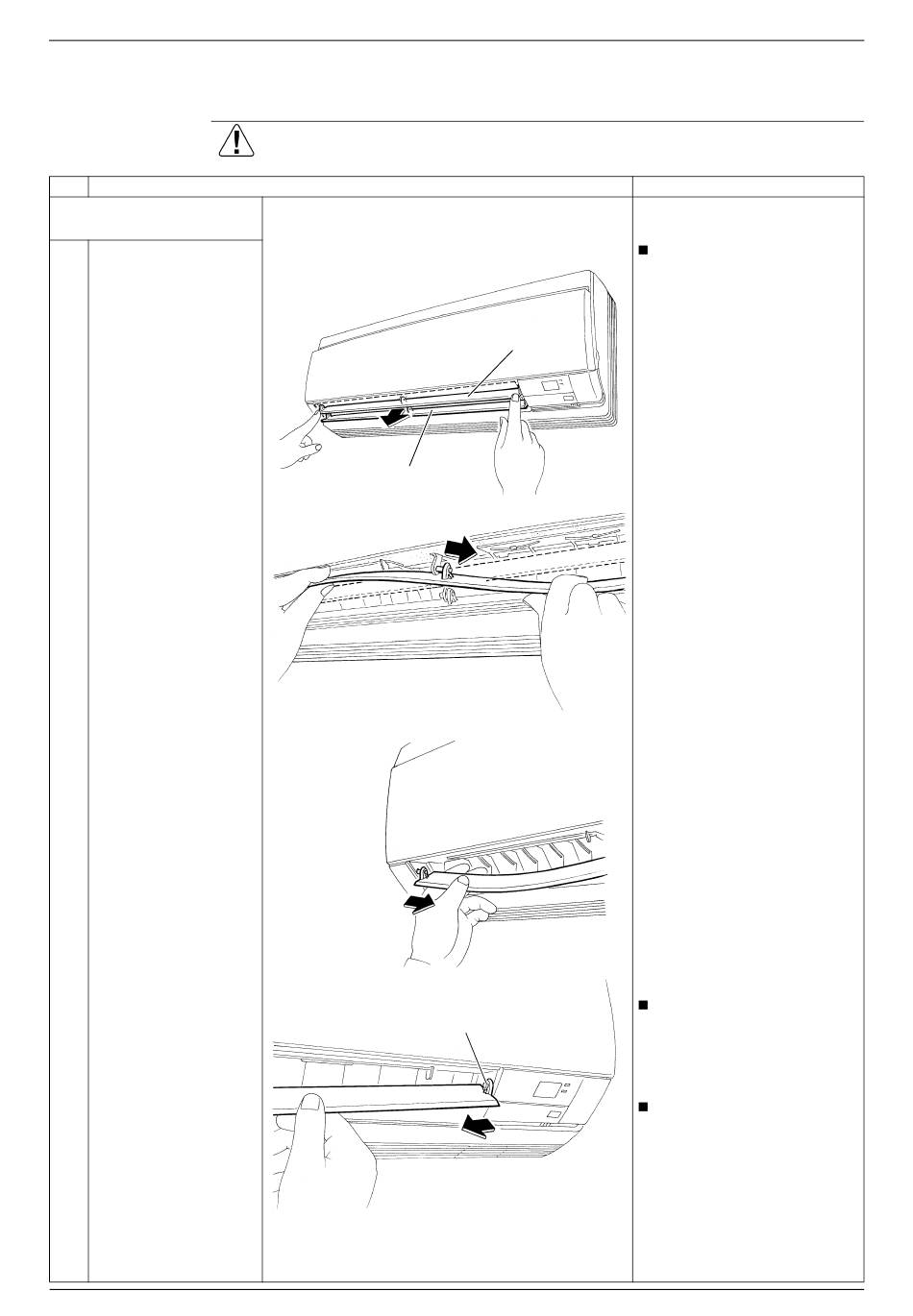

4. Removal of Horizontal Blades / Vertical Blades
Procedure
Step
1. Remove the horizontal
blade (large).
Open the horizontal
1
blade (large).
2 Unfasten the center
shaft while bending the
horizontal blade (large)
slightly.
Unfasten the left shaft.
3
Unfasten the right shaft.
4
8
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Horizontal blade (small)
Key alignment
Horizontal blade (large)
(R4857)
(R4329)
(R4330)
(R12734)
Si041138
Points
Mount the large horizontal
blade to the upper position
and the small horizontal
blade to the lower position.
Do not put them in the wrong
place.
There is a key alignment at
the right shaft. When
mounting, insert the right
shaft first while turning.
After inserting the right shaft,
mount the horizontal blade to
the center shaft and then to
the left shaft.
