Si04-751

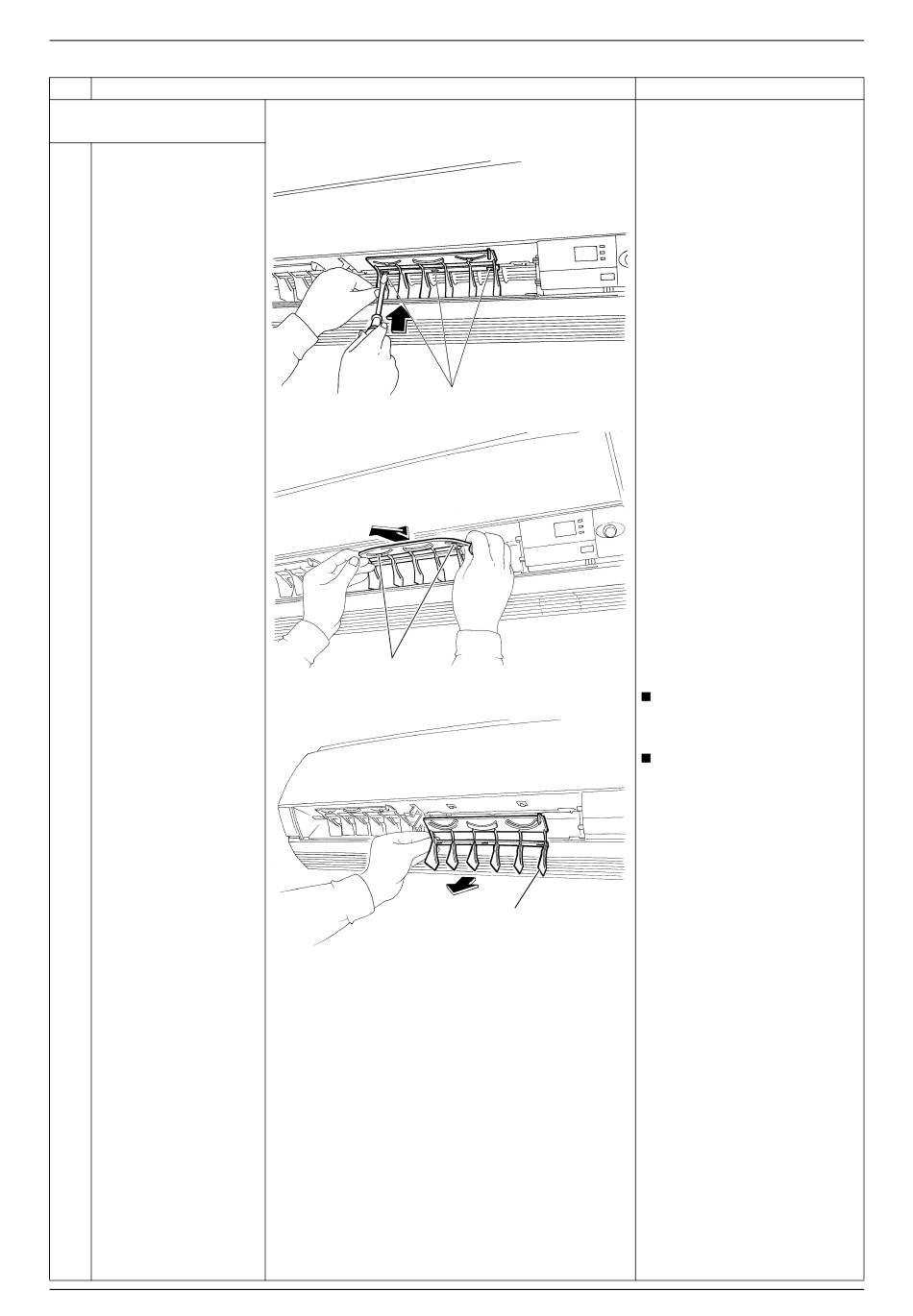

Step
3. Remove the vertical blade
ASSY.
1 Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
Unfasten the hooks at
2
the upper 2 positions.
Remove the vertical
3
blade ASSY.
Removal Procedure
Procedure
Hook
Hook
Vertical blade ASSY
Removal of Horizontal Blades / Vertical Blades
(R4335)
(R4336)
A vertical blade ASSY has 6
fins. It is impossible to
replace only one fin.
The vertical blade ASSY is
not marked for difference
between right and left.
(R12546)
Points
9
