6. Removal of PCBs

Procedure
Step
1. Remove the shield plate.

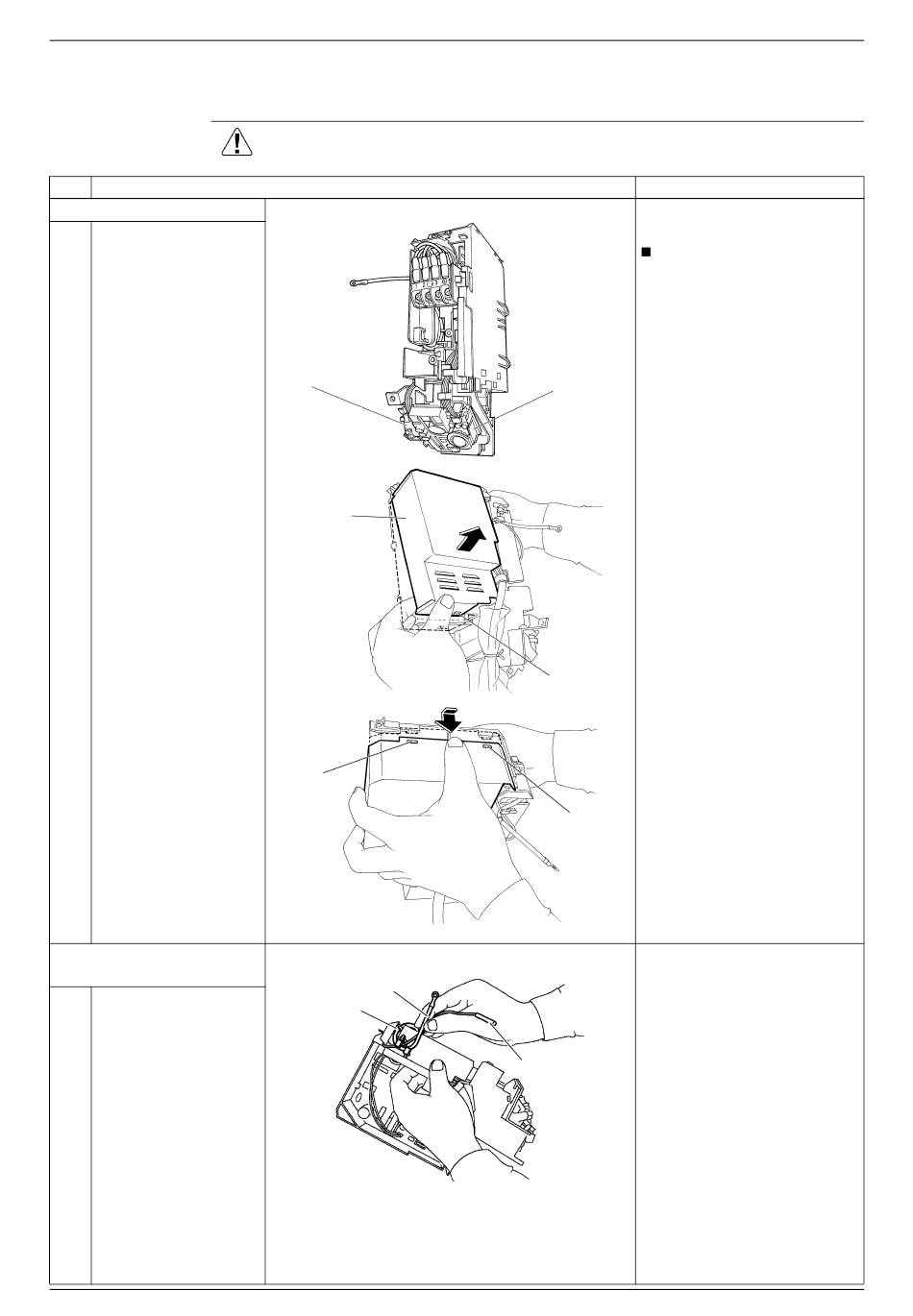

1 The figure shows the
appearance of the
electrical box.
2 Open the shield plate.
3 Push the upper center
of the shield plate and
unfasten the 2 hooks.
Remove the shield
plate.
2. Release the indoor heat
exchanger thermistor.
Release the indoor heat
1
exchanger thermistor
and the earth wire from
the hooks.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Signal receiver
PCB
Shield plate
Hook
Earth wire
Clamp
Preparation
Remove the electrical box
according to the "Removal
of Electrical Box."
Signal receiver unit
(R4350)
Hook
(R13208)
Hook
(R4352)
Indoor heat
exchanger
thermistor
(R4353)
Removal of PCBs
