Si04-751
Step
3. Remove the Titanium
apatite photocatalytic air-
purifying filters.

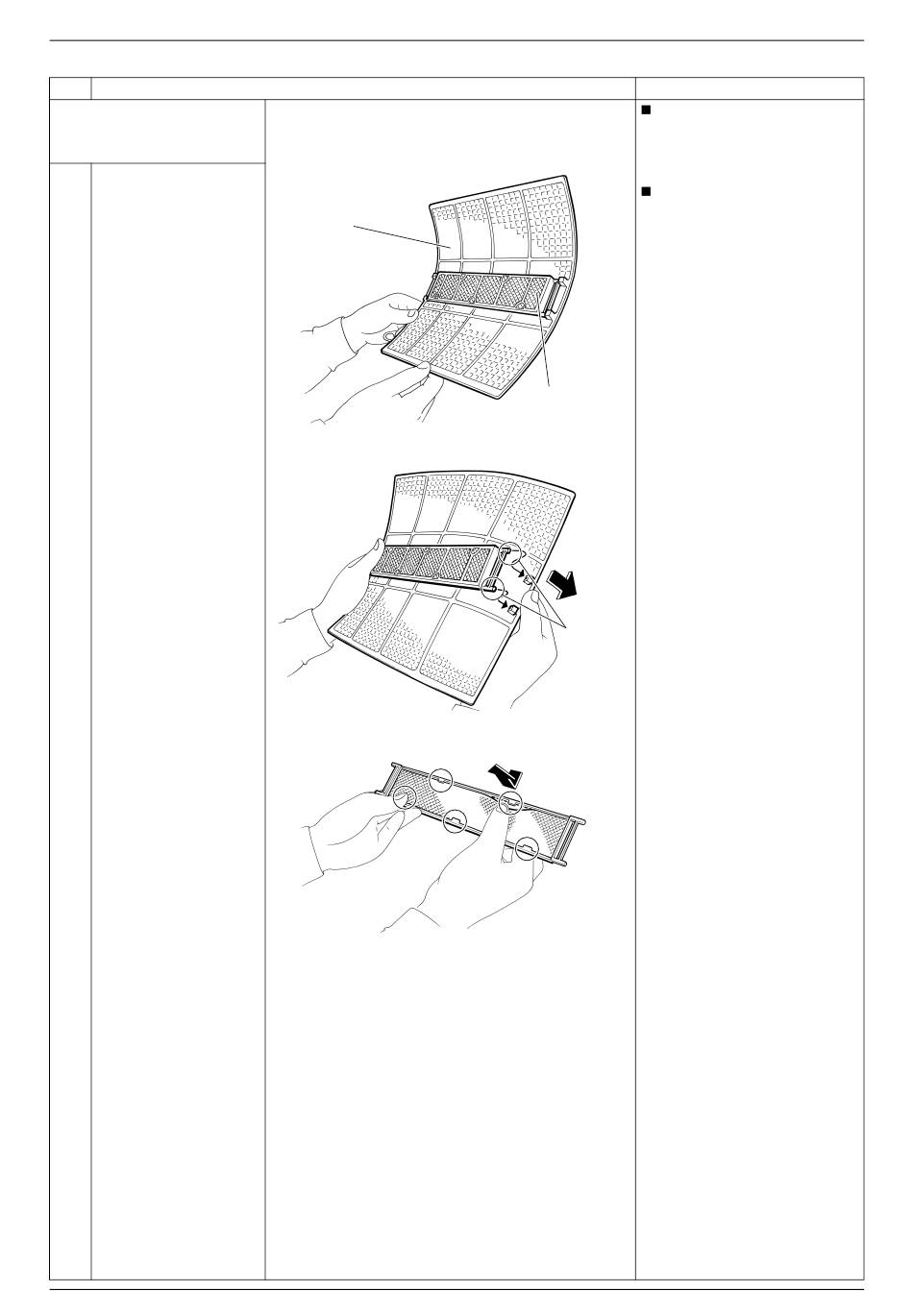

The Titanium apatite
1
photocatalytic air-
purifying filter ASSY is
attached to the back of
the air filter.
Remove the Titanium
2
apatite photocatalytic
air-purifying filter ASSY
by bending the air filter
and releasing the
projections from the air
filter frame.
3
Remove the Titanium
apatite photocatalytic
air-purifying filter from
its frame (at 5 positions)
by bending it.
Removal Procedure
Procedure
Air filter
Some models have no
Titanium apatite
photocatalytic air-purifying
filter.
The right and left filters are
interchangeable.
Titanium apatite
photocatalytic
air-purifying filter
ASSY
(R4309)
Projection
(R16029)
(R13174)
Removal of Air Filters
Points
3
