Daikin AT09HV2S Service Manual page 14

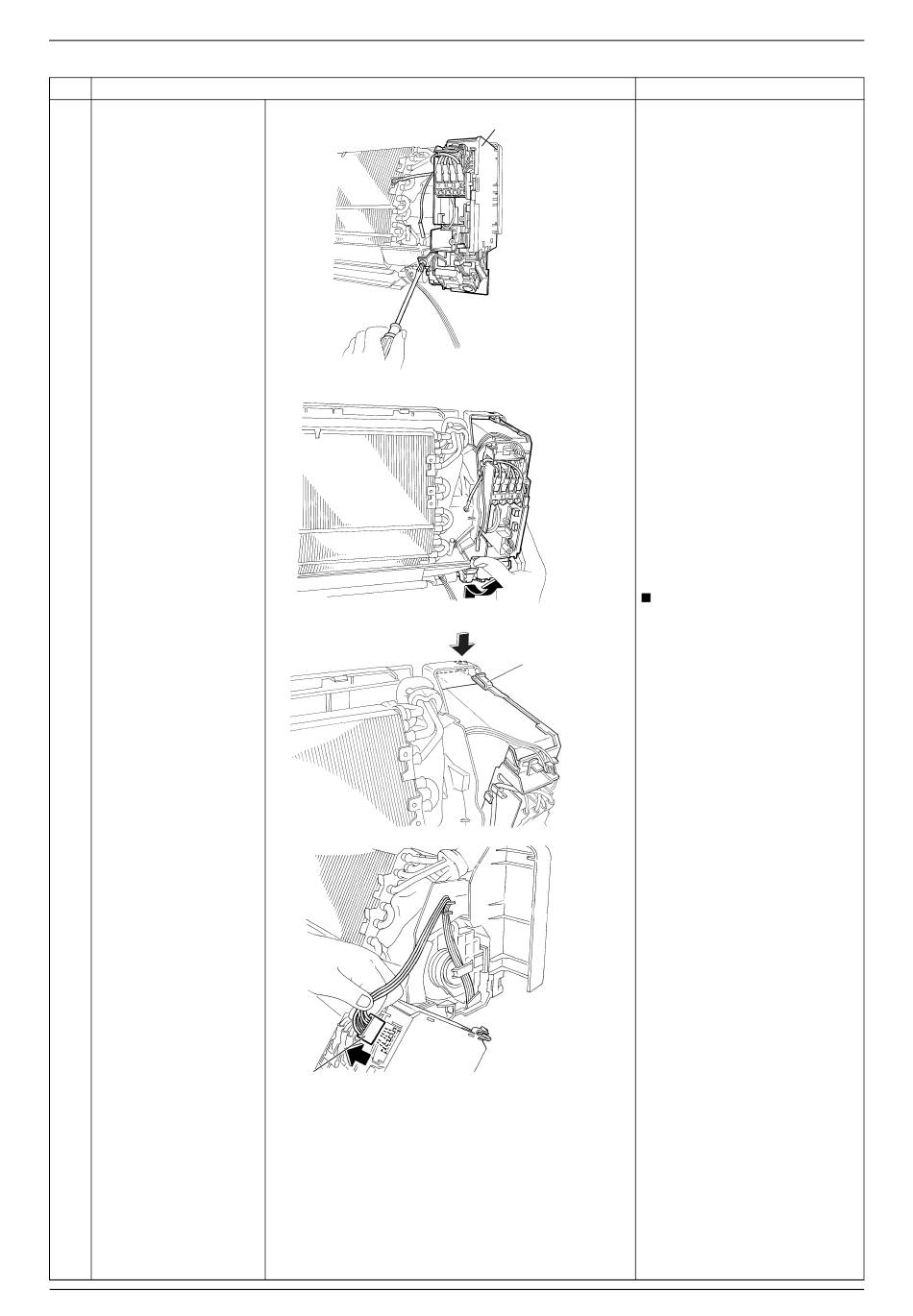

Removal of Electrical Box
Step
9 Remove the screw of
the electrical box.
10 Lift up and pull the
electrical box.
Unfasten the hook at
11
the upper far side by
pressing it from above.
Disconnect the
12
connector for the fan
motor [S1] and remove
the electrical box.
12
Procedure
(R4346)
[S1]
Electrical box
(R10884)
Hook
(R10883)
(R10885)
Si04-751
Points
There is a hook also at the
lower part of the back. When
reassembling the electrical
box, make sure that it is
securely fastened.
Removal Procedure
