Si04-751

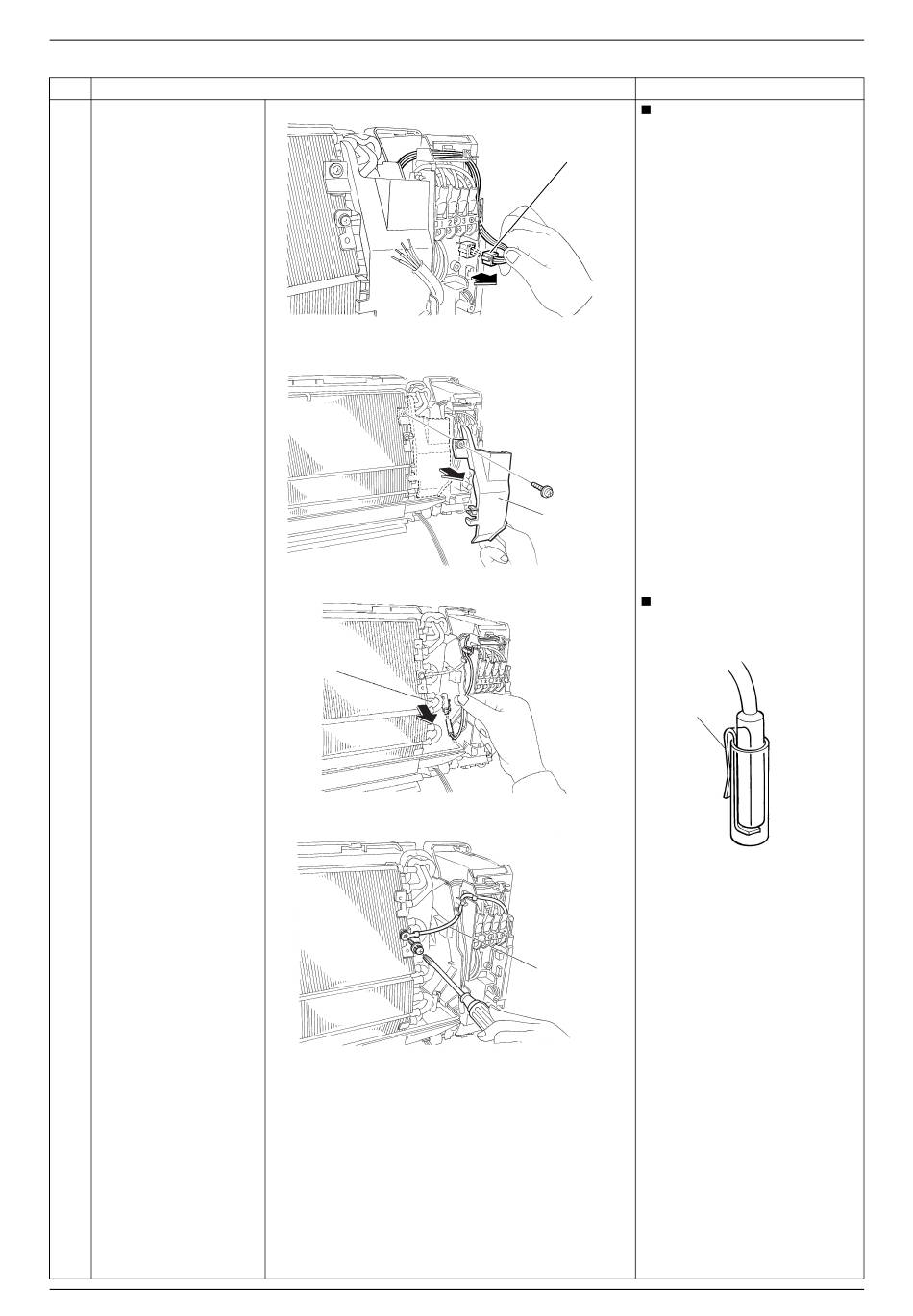

Step
5
Disconnect the
connector for the fan
motor [S7].
Remove the screw and
6
remove the drip proof
plate.
7
Pull out the indoor heat
exchanger thermistor.
Remove the screw of
8
the earth wire.
Removal Procedure
Procedure
Indoor heat
exchanger
thermistor
Removal of Electrical Box
Some models have no
harness for [S7].
[S7]
(R11470)
Drip proof plate
(R10880)
Be careful not to lose the
clip for the thermistor.
Clip
(R17236)
Earth wire
(R10882)
Points
(R11234)
11
