Daikin AT09HV2S Service Manual page 20

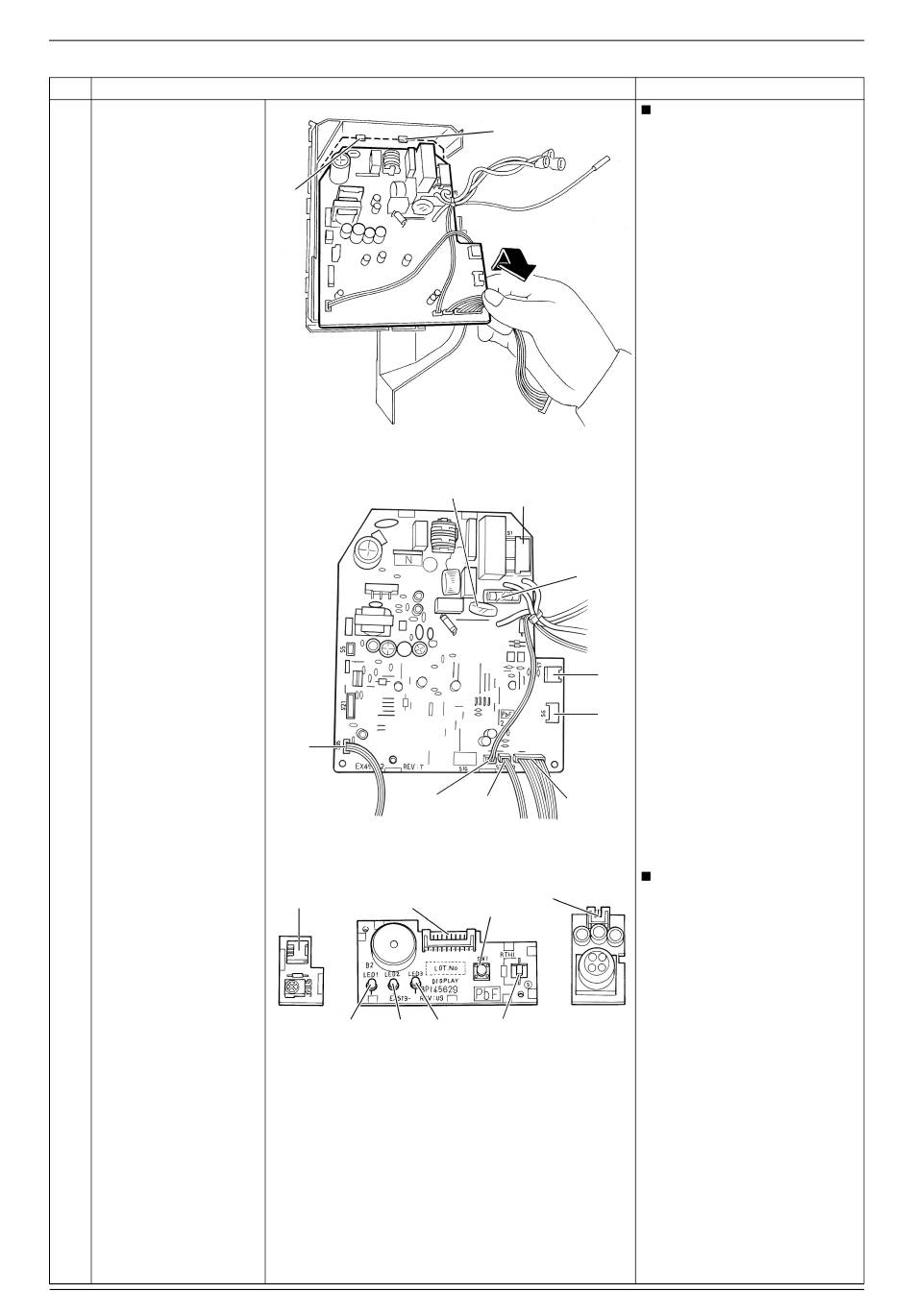

Removal of PCBs
Step
2 Lift up the bottom of the
control PCB and pull it
out.
The figures show the
3
names of the PCB
component parts.
18
Procedure
Hook
Varistor
[S35]
[S32]
[S29]
[S27]
LED 1 LED 3
LED 2
(Green) (Green)
(Yellow)
Hook
(R4370)
[S1]
Fuse
[S1]: fan motor
[S6]: swing motor
[S7]: fan motor (Hall IC)
[S26]: display PCB
[S7]
[S27]: control PCB
[S6]
[S28]: signal receiver PCB
[S29]: control PCB
[S32]: indoor heat exchanger
[S35]: INTELLIGENT EYE
[S26]
[S28]
(R16422)
[S36]: control PCB
[S36]
SW1
Room temperature
thermistor (R17650)
Si04-751
Points
When reassembling the
control PCB, make sure that
it is fixed by 2 upper hooks.
thermistor
sensor PCB
Some models have no
harness for [S7], [S35].
Removal Procedure
