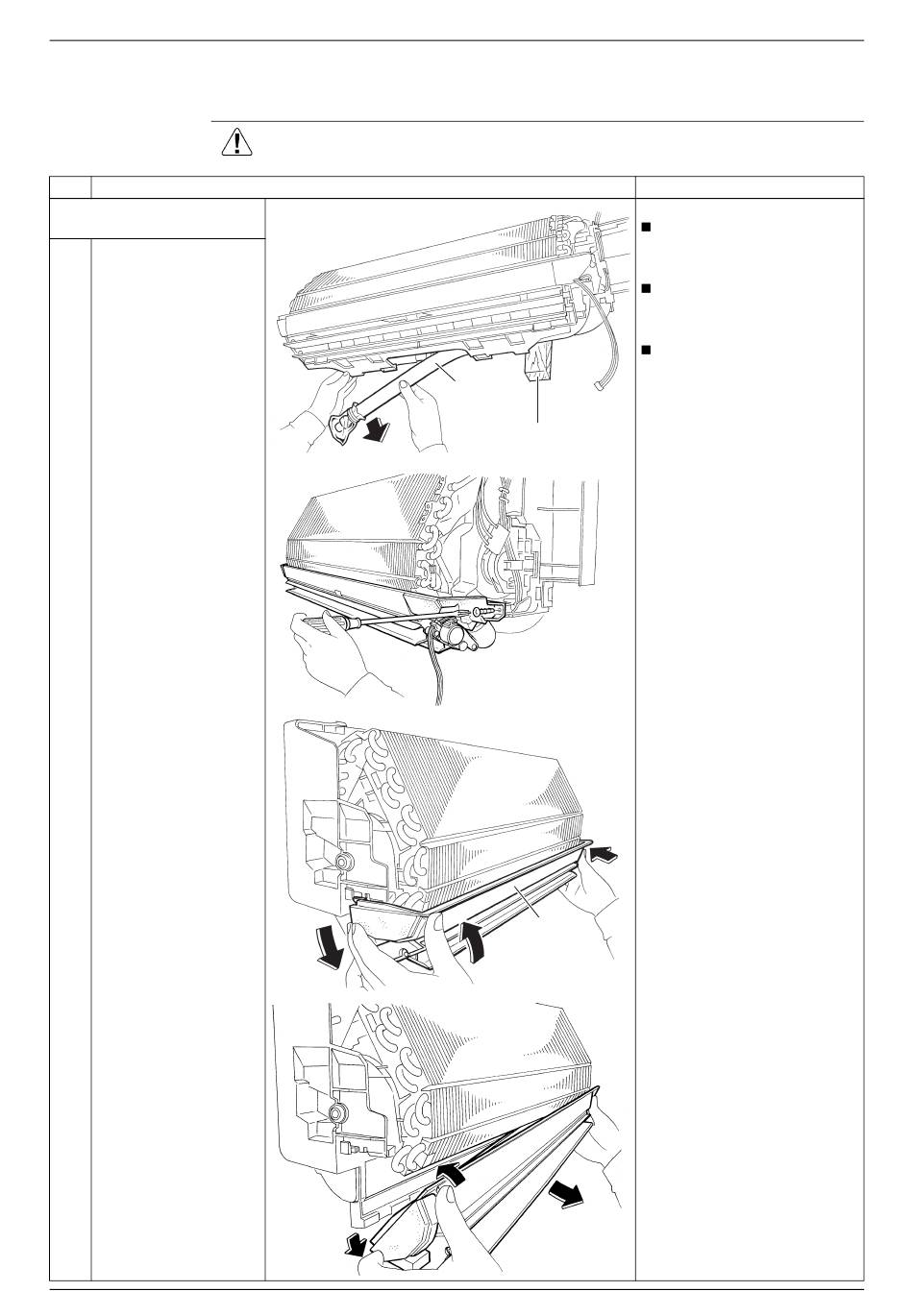

7. Removal of Drain Pan Unit / Swing Motor

Procedure
Step
1. Remove the drain pan
unit.
1 Lift up the indoor unit
slightly and pull out the
drain hose. (In the case
of left piping)
Remove the screw at
2
the right side of the
drain pan unit.
Press the right side of
3
the drain pan unit and
twist the left side.
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Removal of Drain Pan Unit / Swing Motor
Drain hose
Wooden base
(R4374)
(R4375)
Keep
pressing
here.
Drain pan unit
Twist here.
(R4376)
(R4377)
Points
Preparation
Remove the electrical box
according to the "Removal
of Electrical Box."
Inserting of the wooden
base facilitates the removing
work.
Place a plastic sheet under
the drain pan to prevent
from wetting the floor with
remaining drain.
