Drivers; St-Link/V2-1 Firmware Upgrade; Using The St-Link/V2-1 To Program/Debug The Stm32 On Board; Figure 6. Usb Composite Device - ST STM32 Nucleo-64 User Manual

UM2324
6.4.1

Drivers

Before connecting the STM32 NUCLEO-G070RB or NUCLEO-G071RB board to a
Windows
available at the
In case the STM32 Nucleo-64-P board is connected to the PC before installing the driver,
the PC device manager may report some Nucleo interfaces as 'Unknown'. To recover from
this situation, after installing the dedicated driver, the association of 'Unknown' USB devices
found on the STM32 Nucleo-64-P board to this dedicated driver, must be updated in the
device manager manually.
Note: It is recommended to proceed by using USB Composite Device, as shown in
6.4.2

ST-LINK/V2-1 firmware upgrade

The ST-LINK/V2-1 embeds a firmware upgrade mechanism for in-situ upgrade through the
USB port. As the firmware may evolve during the lifetime of the ST-LINK/V2-1 product (for
example new functionalities, bug fixes, support for new microcontroller families), it is
recommended to keep the ST-LINK/V2-1 firmware up to date before starting to use an
STM32 NUCLEO-G070RB or NUCLEO-G071RB board. The latest version of this firmware
is available at the
6.4.3

Using the ST-LINK/V2-1 to program/debug the STM32 on board

To program the STM32 on board, simply plug in the two jumpers on CN4, as shown in
Figure 7
with the STM32 Microcontroller of the NUCLEO.
®
PC (7, 8 and 10) through USB, install the driver for the ST-LINK/V2-1 that is
www.st.com website.

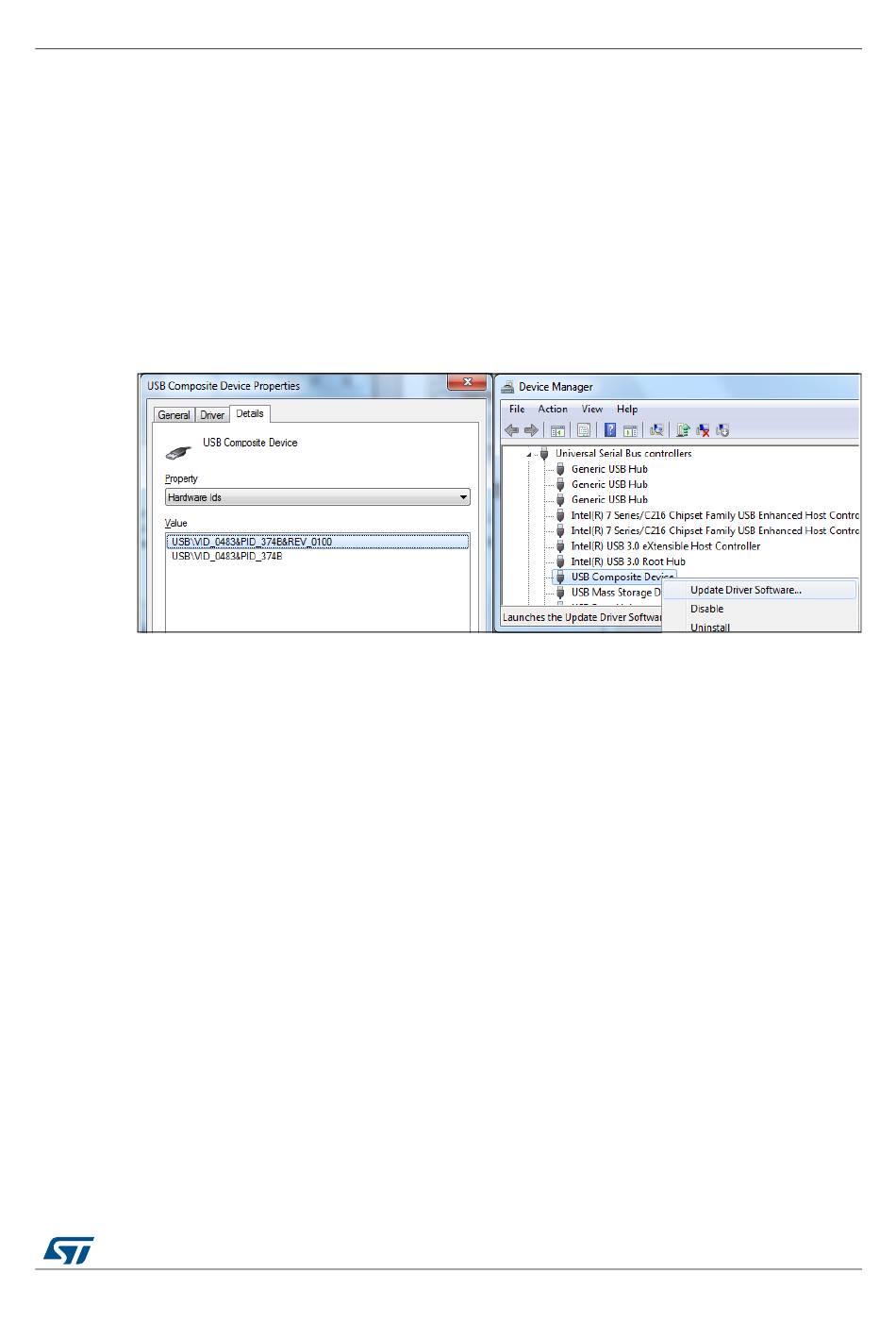

Figure 6. USB composite device

www.st.com
in pink, but do not use the CN11 connector as that could disturb communication
website.
