The related pinout and the MCU assignment for the ST morpho connectors are listed in
Figure 18
Note:
Arduino Uno V3 D0 and D1 signals are connected by default on USART1 (MCU I/O PA2
and PA3).
32/44
and
Figure
19.

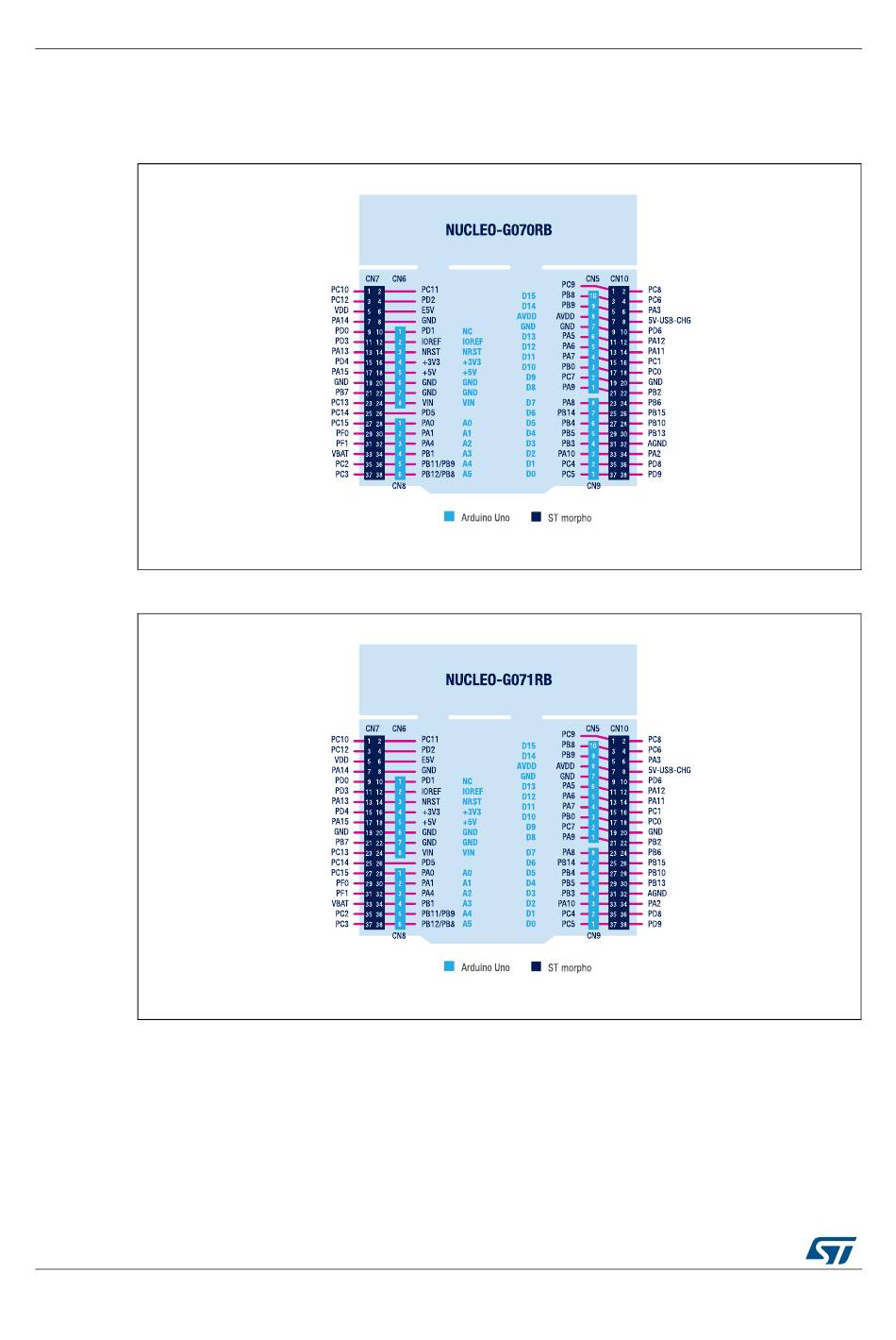

Figure 18. NUCLEO-G070RB ST morpho connector pinout
Figure 19. NUCLEO-G071RB ST morpho connector pinout
UM2324 Rev 2
UM2324
