UM2324
7.3
ST morpho connectors CN7 and CN10
The ST morpho connectors CN7 and CN10 are male pin headers accessible on both sides
of the STM32 NUCLEO-G070RB or NUCLEO-G071RB board (see
and power pins, except VDD_CORE 1.2 V of the STM32, are available on the ST morpho
connectors. These connectors can also be probed by an oscilloscope, logical analyzer or
voltmeter.

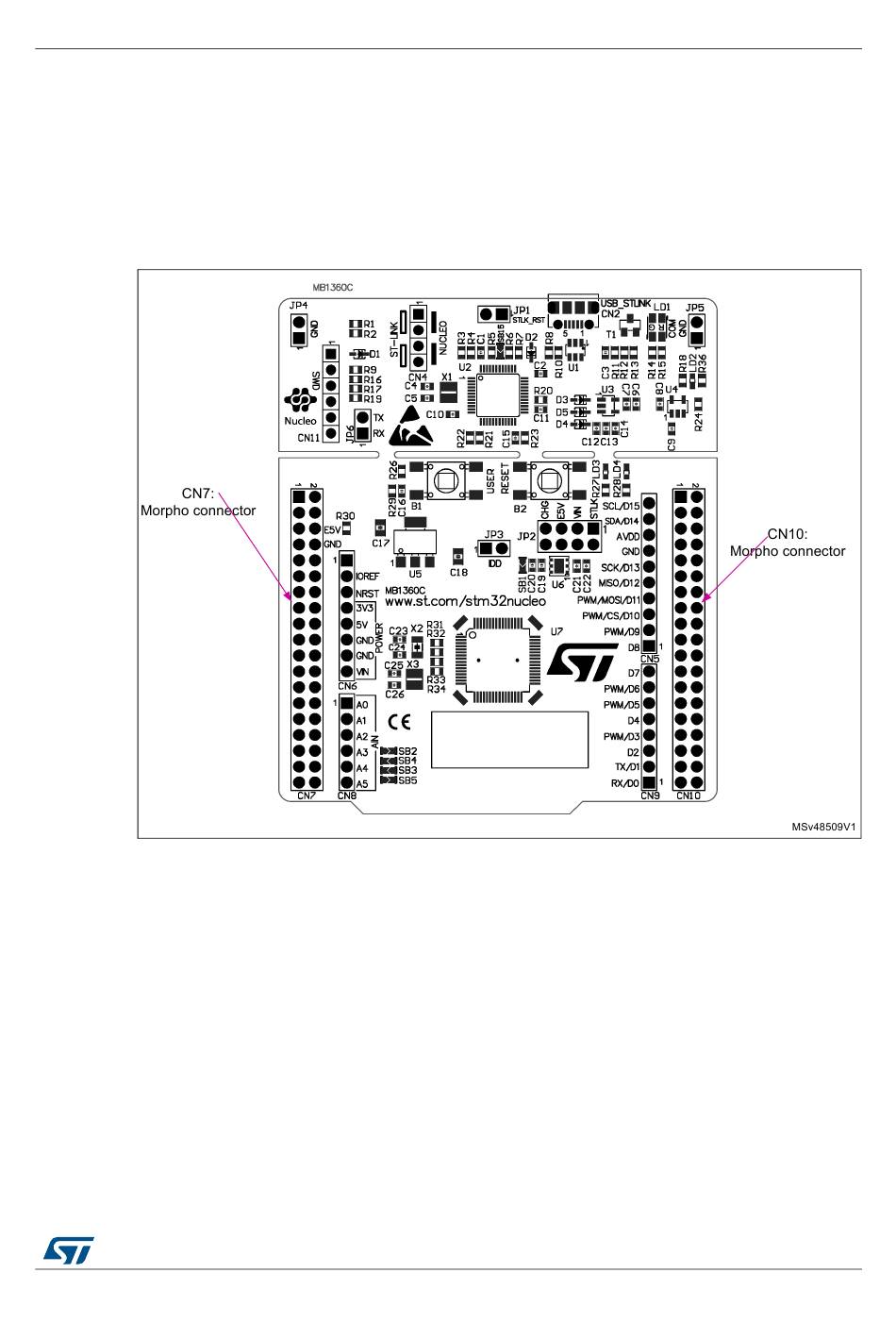

Figure 17. ST morpho connectors
UM2324 Rev 2
Connectors
Figure
17). All signals
31/44
43
