UM2324
The related pinout for Arduino connector is showed in
Table
12.
Note:
Note: Arduino Uno V3 D0 and D1 signals are connected by default on USART1 (MCU I/O
PC4 and PC5).

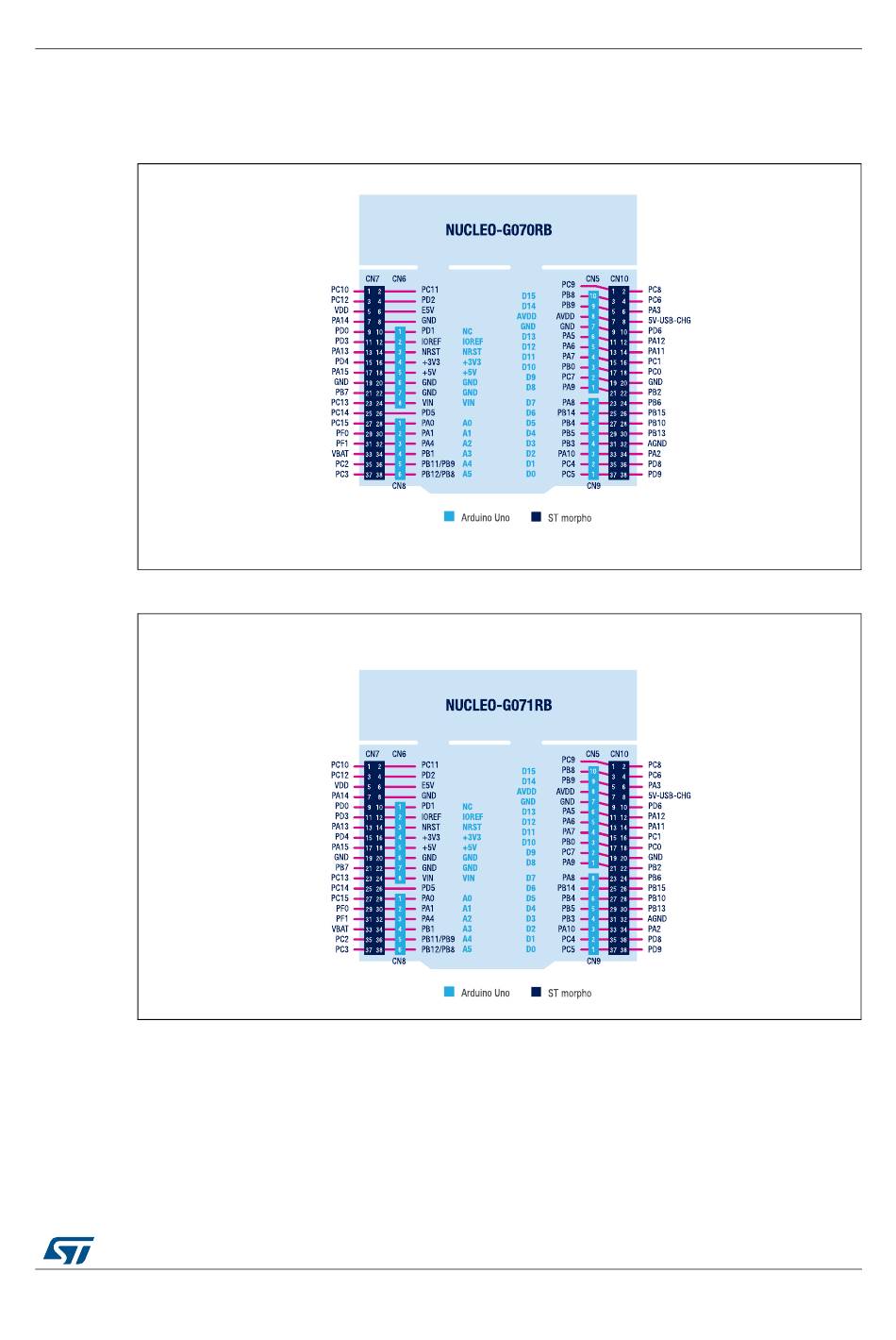

Figure 15. NUCLEO-G070RB Arduino connector pinout
Figure 16. NUCLEO-G071RB Arduino connector pinout
UM2324 Rev 2
Figure 15
and
Figure 16
Connectors
and listed in
29/44
43
