UM2324
6.1 NUCLEO-G070RB or NUCLEO-G071RB board mechanical
drawing

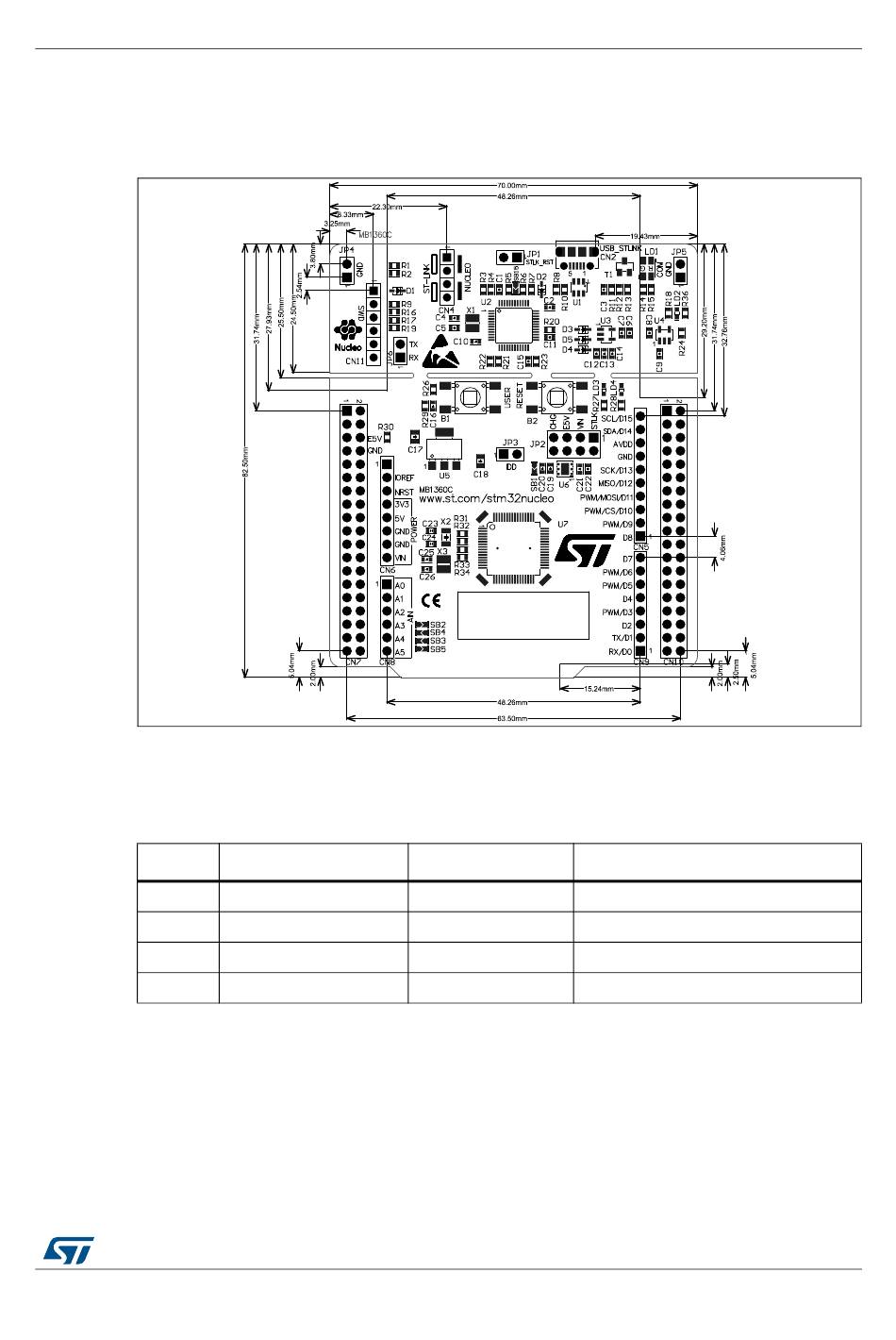

Figure 5. NUCLEO-G070RB or NUCLEO-G071RB board mechanical drawing

6.2

Default board configuration

Jumper
CN4
JP2
JP1
JP3
6.3

Cut able PCB

The NUCLEO-G070RB or NUCLEO-G071RB board is divided into two parts: ST-Link part
and target MCU part. ST-Link part PCB is cuttable to reduce board size. In this case the rest
target MCU part is only powered by VIN, E5V & 3.3V on morpho connectors CN7 or VIN &
3.3V on Arduino connector CN6. And it is still possible to use ST-Link part to program the
main MCU using wires between CN7 and SWD signals available on morpho connectors.

Table 4. Default jump settings

Definition
SWD interface
5 V Power selection
STLK Reset
I measurement
DD
Default position
ON [1-2] ON[3-4]
ON [1-2]
OFF
ON
UM2324 Rev 2
Hardware layout and configuration
Comment
On-board ST-LINK/V2-1 debugger
5 V from ST-LINK
No STLK Reset
STM32 VDD current measurement
11/44
