CAP1xxx Evaluation Board User's Guide
6.2

LED Status

An indicator in the LED Status section changes color when the LED behavior has completed its cycle
and the LED is in host control mode. The indicator for an LED is disabled when the LED is linked to
a sensor.
If the Auto Clear INT button on the Panel (see
Panel") is enabled (dark gray), the LED Status indicators are continuously cleared. If the Auto Clear
INT button is disabled (light gray), the user must manually clear interrupts by clicking the Auto Clear
INT button or the INT indicator on the Main Tab
 2013 Microchip Technology Inc.

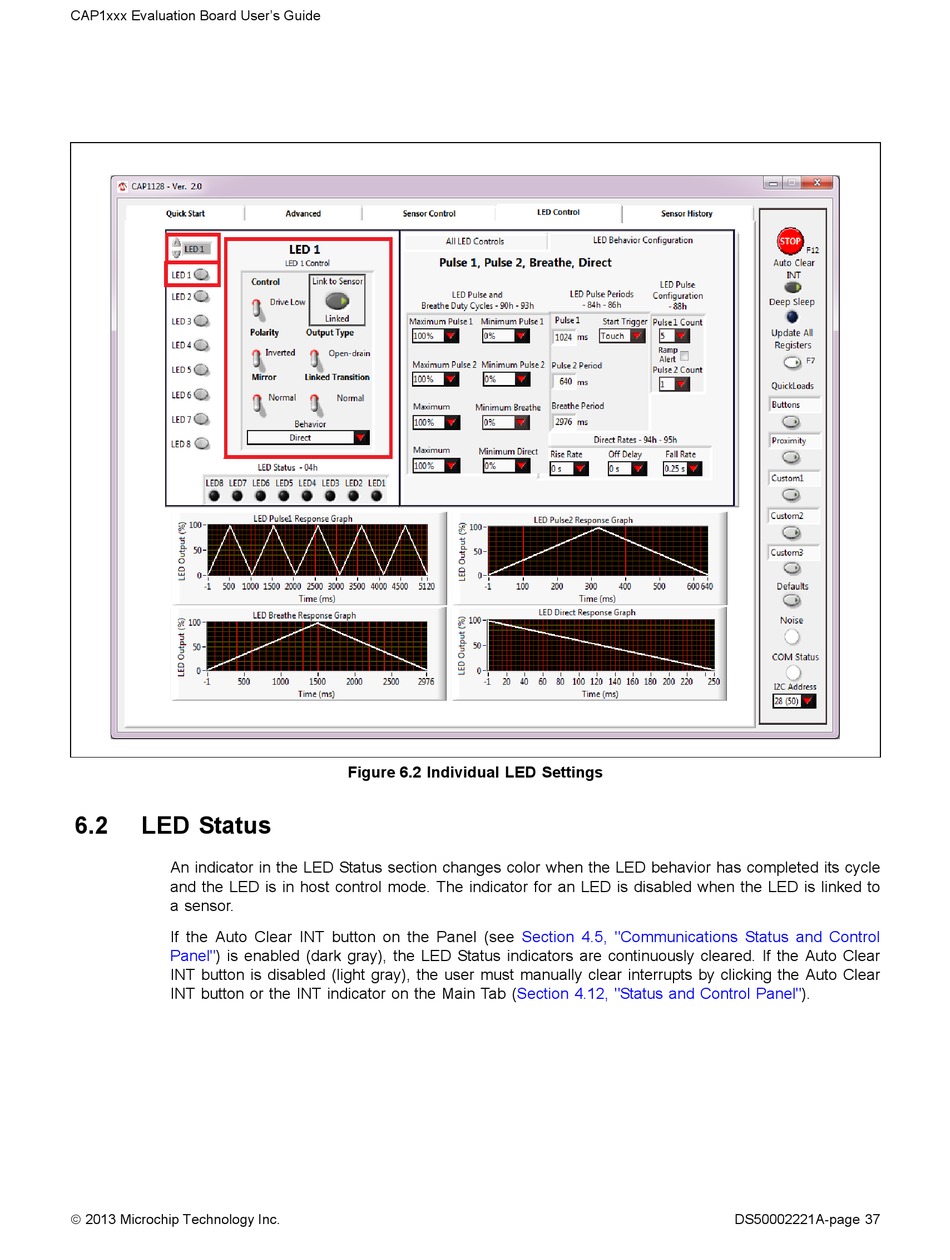

Figure 6.2 Individual LED Settings
Section 4.5, "Communications Status and Control
(Section 4.12, "Status and Control Panel").
DS50002221A-page 37
