CAP1xxx Evaluation Board User's Guide
6.4
LED Behavior Configuration Control Panel
The LED Behavior Configuration Control Panel, shown in
different types of behaviors available to the LED drivers.
2013 Microchip Technology Inc.

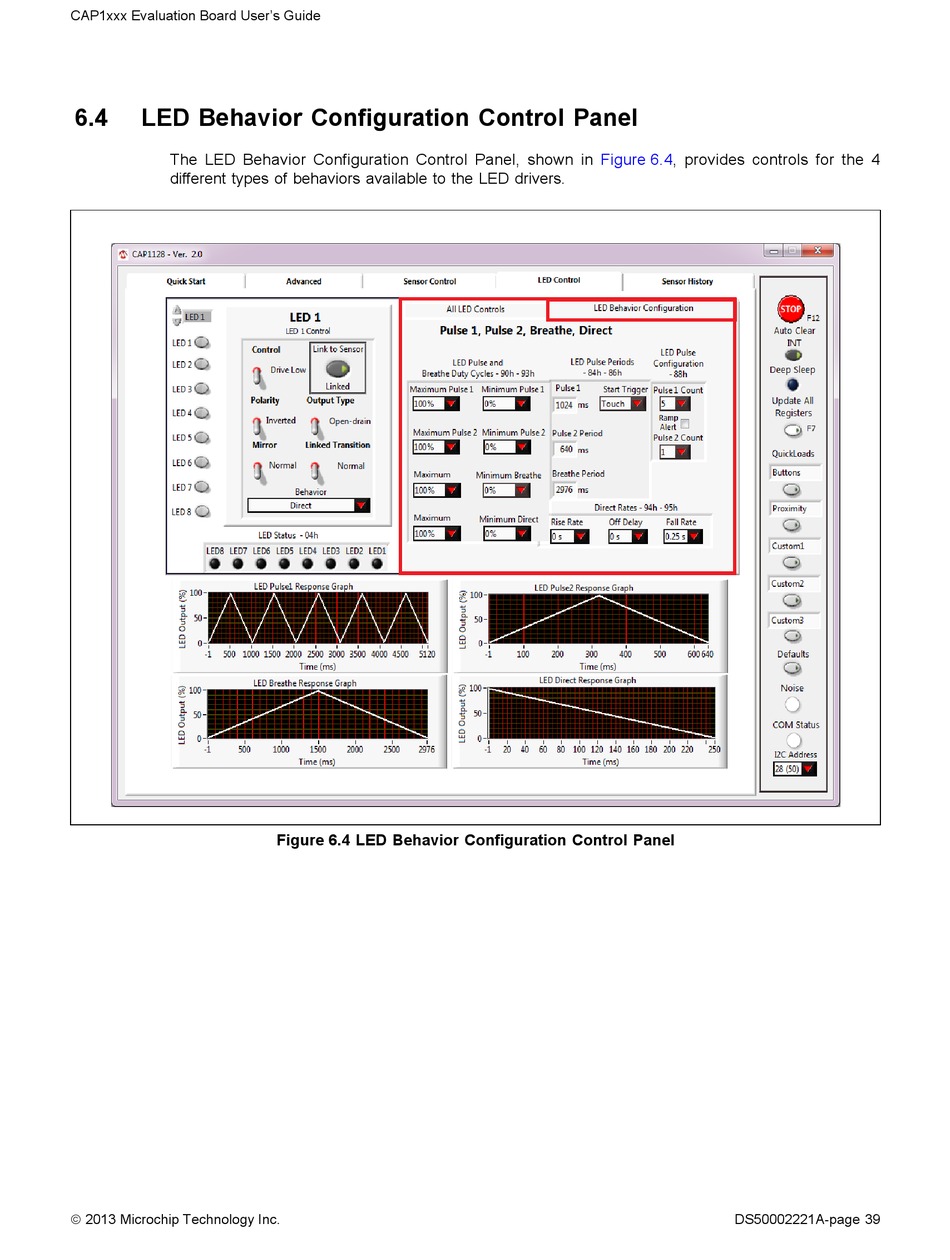

Figure 6.4 LED Behavior Configuration Control Panel
Figure
6.4, provides controls for the 4
DS50002221A-page 39
