CAP1xxx Evaluation Board User's Guide
3 Quick Start Window
The Quick Start Window provides the same information as the Advanced Window, but reduces the
number of options for a more manageable initial user experience. For more information on what
options are provided on the Quick Start Window and how to use them, refer to the CAP1xxx Quick
Start Guide provided with the CAP1xxx CD.

4 Advanced Tab

4.1

Default Conditions

Communications begin as soon as the CAP1xxx GUI software detects the presence of the CAP1xxx
evaluation board. The GUI then reconfigures the CAP1xxx evaluation board with predetermined values
specific to the evaluation board's hardware.
evaluation board.

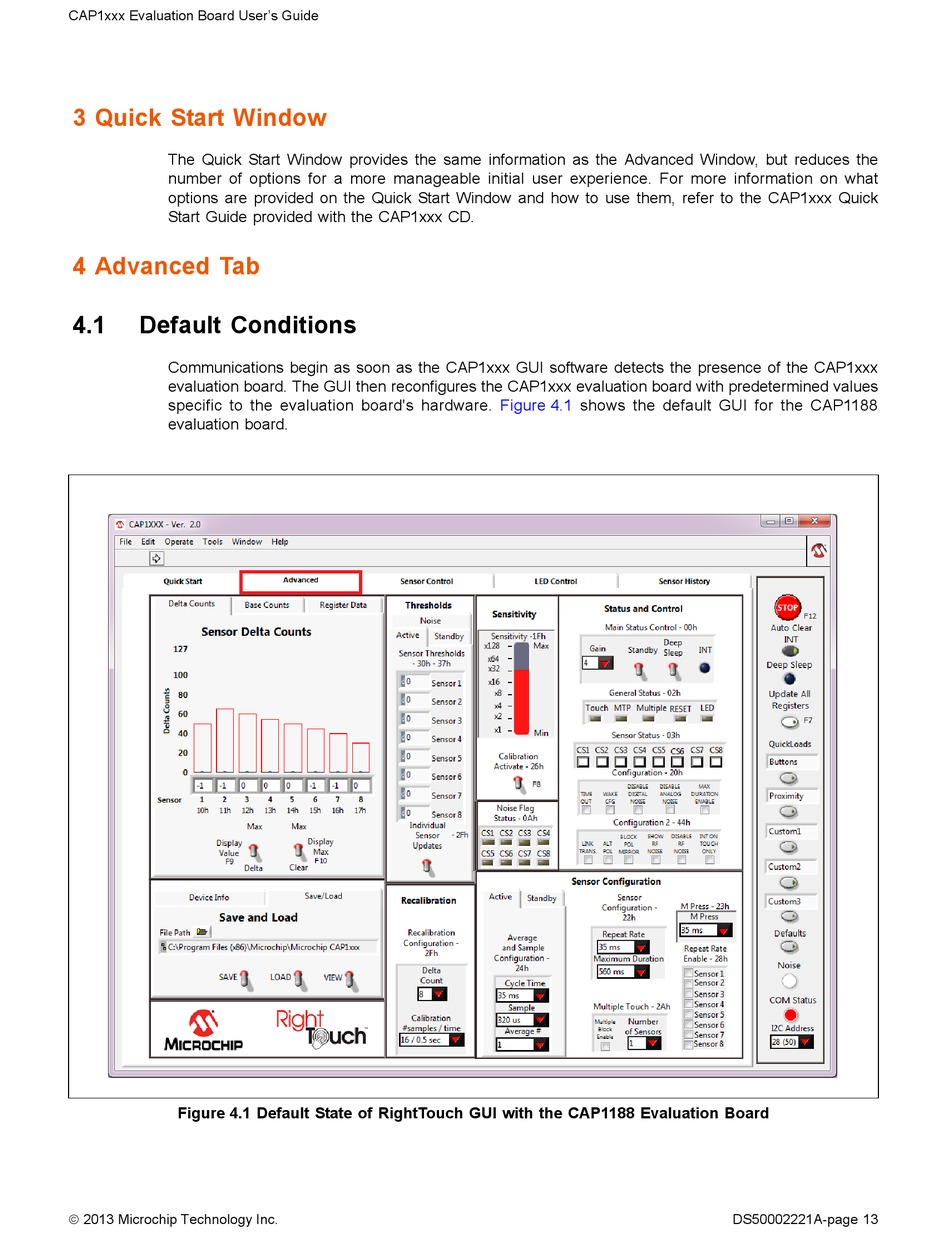

Figure 4.1 Default State of RightTouch GUI with the CAP1188 Evaluation Board
 2013 Microchip Technology Inc.
Figure 4.1 shows the default GUI for the CAP1188
DS50002221A-page 13
