CAP1xxx Evaluation Board User's Guide
2.2
USB Bridge Installation
To complete the installation, connect the USB mini connector to the EVB and the standard USB
connector to any available USB port on the PC. If the USB Bridge driver has not previously been
installed on the selected USB port, the "Find New Hardware" wizard will pop up on the PC's screen.
Follow the on-screen instructions to complete the installation process. See
Figure 2.5
through
Figure 2.8
for a step by step view of the installation.
Once installation of the USB Bridge is complete, the GUI software will begin communications with the
device on the EVB.

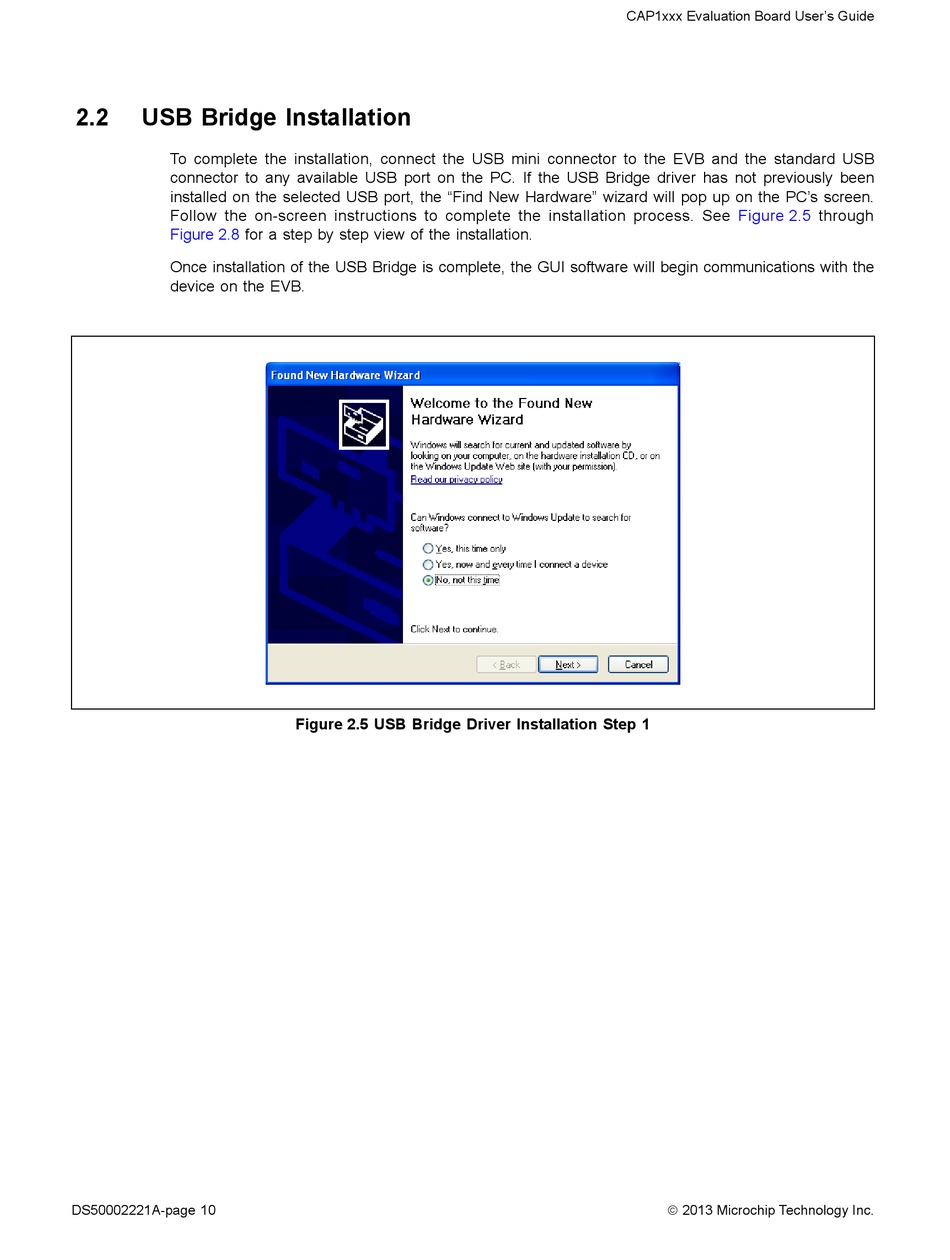

Figure 2.5 USB Bridge Driver Installation Step 1
2013 Microchip Technology Inc.
DS50002221A-page 10
