4.5.7
COM Indicator
The COM indicator, toward the bottom of the Panel shown in
communications over the I2C. During normal operation,
communications fail,
4.5.8
I2C Address
I2C Address, at the bottom of the red highlighted panel shown in
of the device.
4.6
Delta Counts Tab
The Delta Counts tab on the Main window and in the Quick Start window shown in
the delta counts of the capacitive sensor channels. The Delta Count Register address for each sensor
input is listed below the sensor number.
When the Display Value switch is set to Delta, the number cell below each indicator bar displays the
least significant byte of that channel's current delta count. When the Display Value switch is set to Max,
DS50002221A-page 20
the COM indicator
turns red.

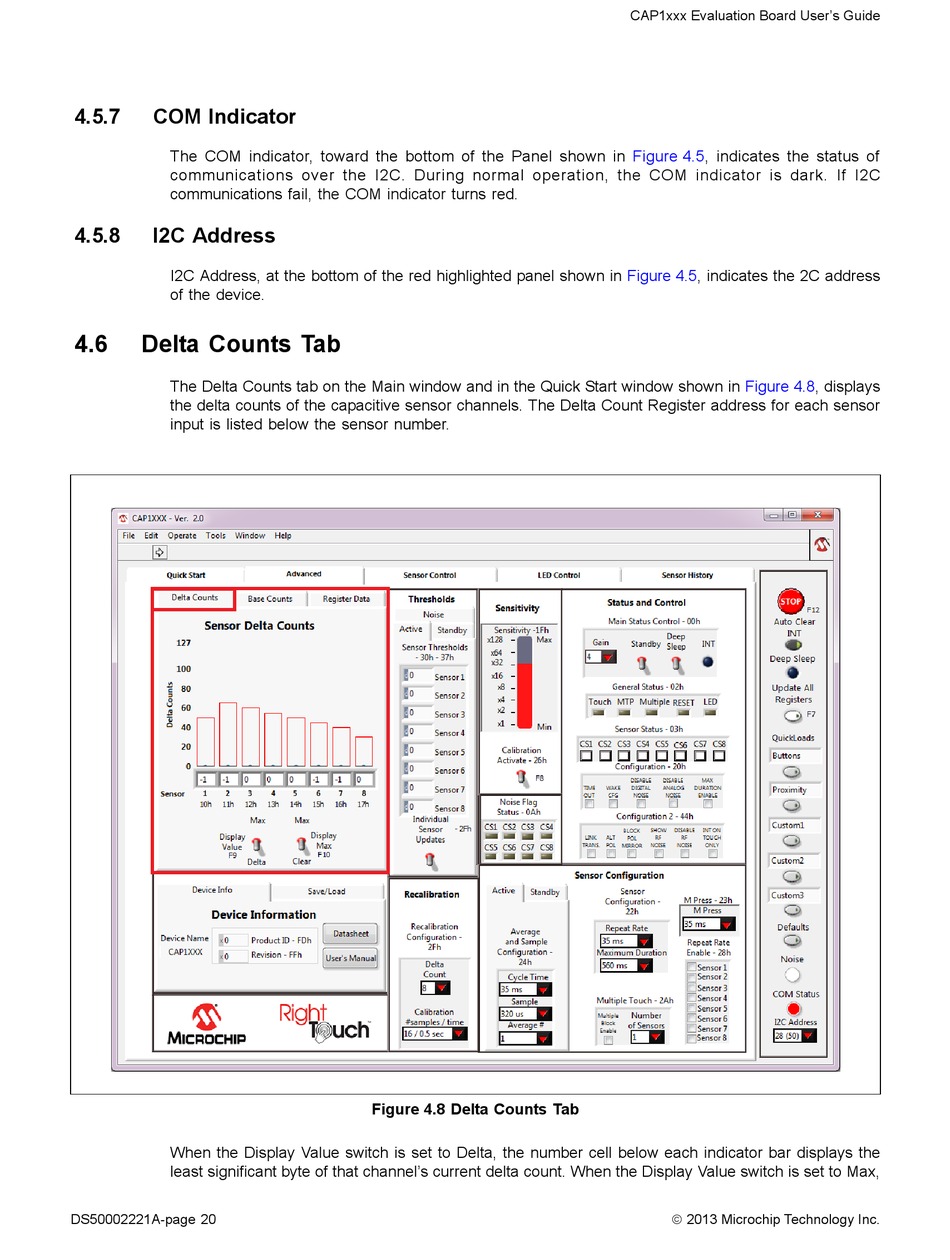

Figure 4.8 Delta Counts Tab
CAP1xxx Evaluation Board User's Guide
Figure
4.5, indicates the status of
the COM indicator
is dark. If I2C
Figure
4.5, indicates the 2C address
Figure
4.8, displays
 2013 Microchip Technology Inc.
