4.11 Recalibration Configuration Control Panel
On the Advanced window below the Thresholds section is the Recalibration Configuration section
shown in Figure
The 'Calibration #samples / time'
samples related to the recalibration routine. Negative delta count allows selection of the number of
consecutive negative delta counts necessary to trigger a digital recalibration. Both of these controls
affect the Recalibration Configuration Register (2Fh).
 2013 Microchip Technology Inc.
4.15.

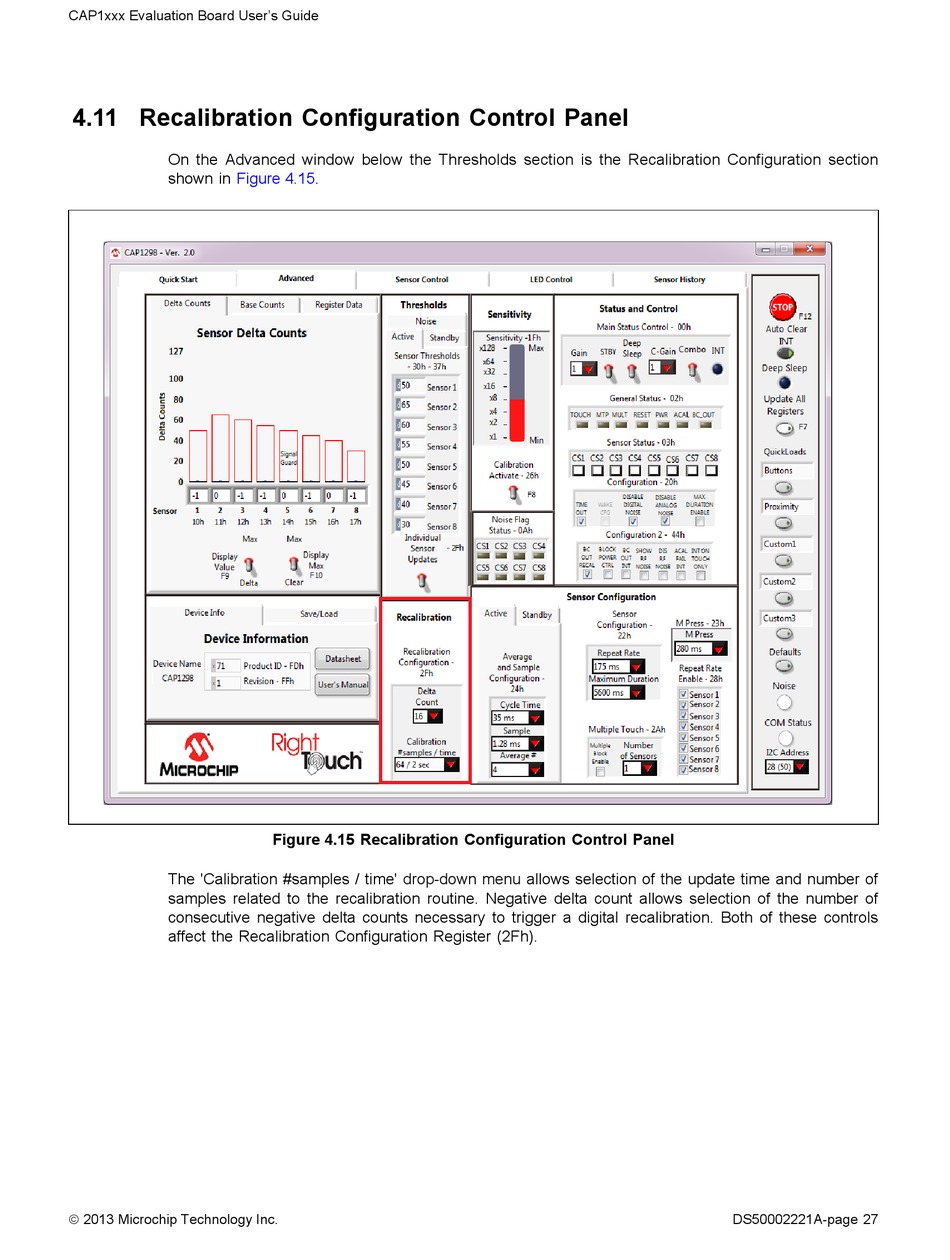

Figure 4.15 Recalibration Configuration Control Panel
drop-down menu allows selection of the update time and number of
