CAP1xxx Evaluation Board User's Guide
The 'Standby Channel' column determines which sensors are scanned in Standby mode. For the
CAP12xx devices, this also determines which sensors will be scanned using the Combo Gain settings
when in Combo mode.
The 'Signal Guard Enable' column is only available on CAP129x devices and determines which
sensors will have the signal guard enabled during their scan.
2013 Microchip Technology Inc.

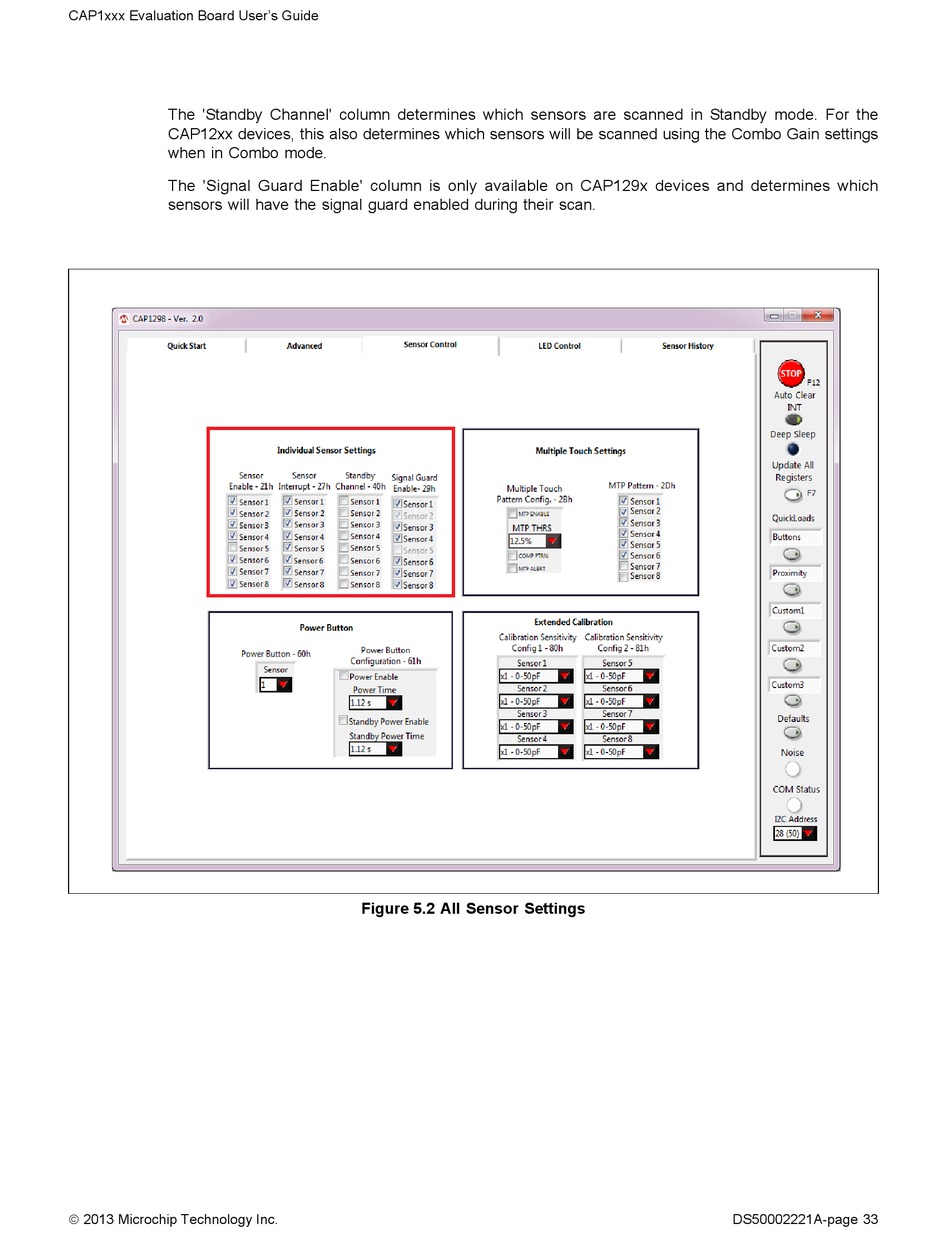

Figure 5.2 All Sensor Settings
DS50002221A-page 33
