CAP1xxx Evaluation Board User's Guide
6.3
All LED Settings
The 'All LED Settings' display, shown in
Figure
6.3, displays a view of the LED controls for all the LEDs.
A check mark represents a '1' in logic.
Note: This control panel does not include LED behavior. Use the individual settings panels instead.

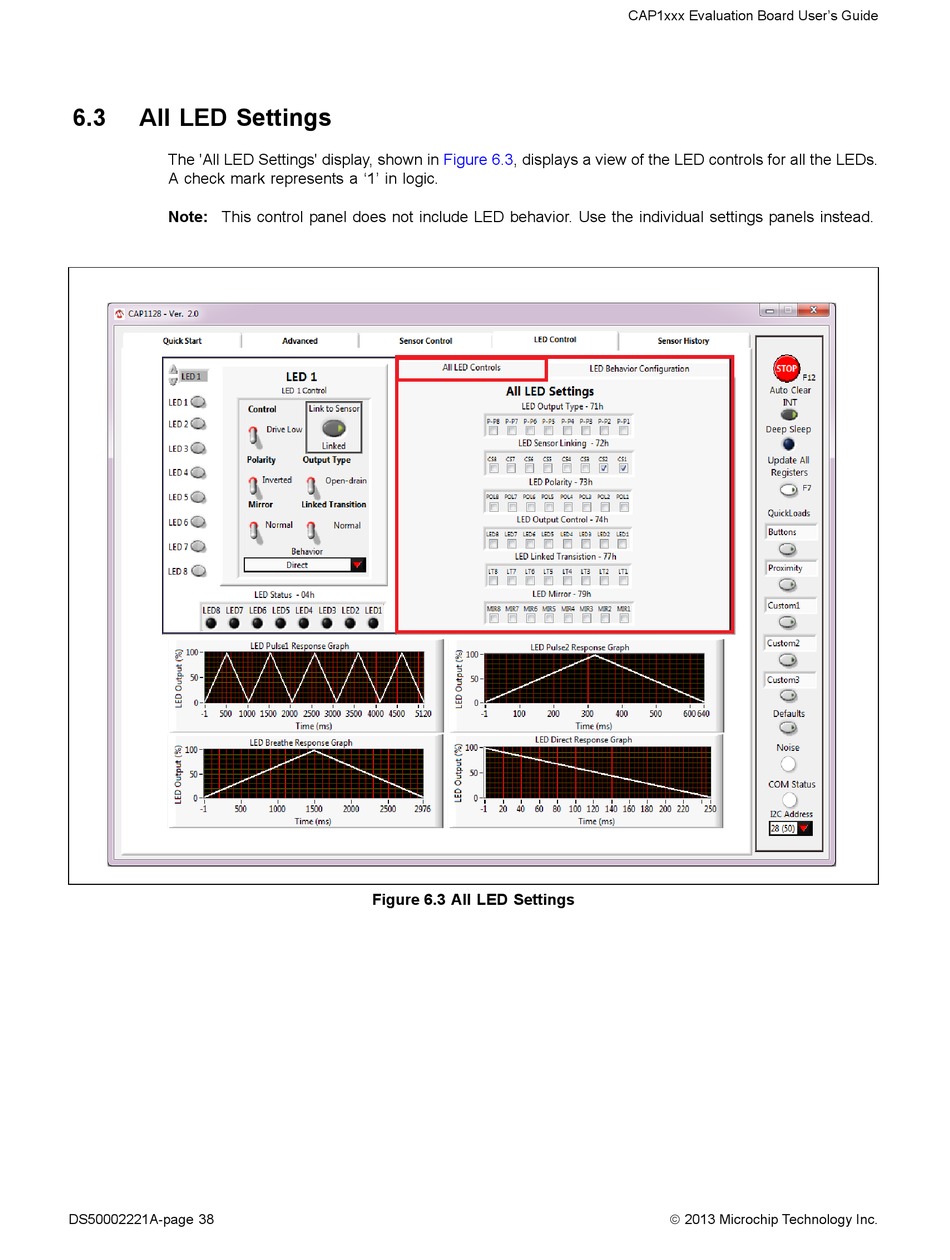

Figure 6.3 All LED Settings
2013 Microchip Technology Inc.
DS50002221A-page 38
