5 GUI Sensor Control Tab
The Sensor Control tab provides the detailed controls for individual sensor inputs.
the default view for the CAP1298 Evaluation Board.

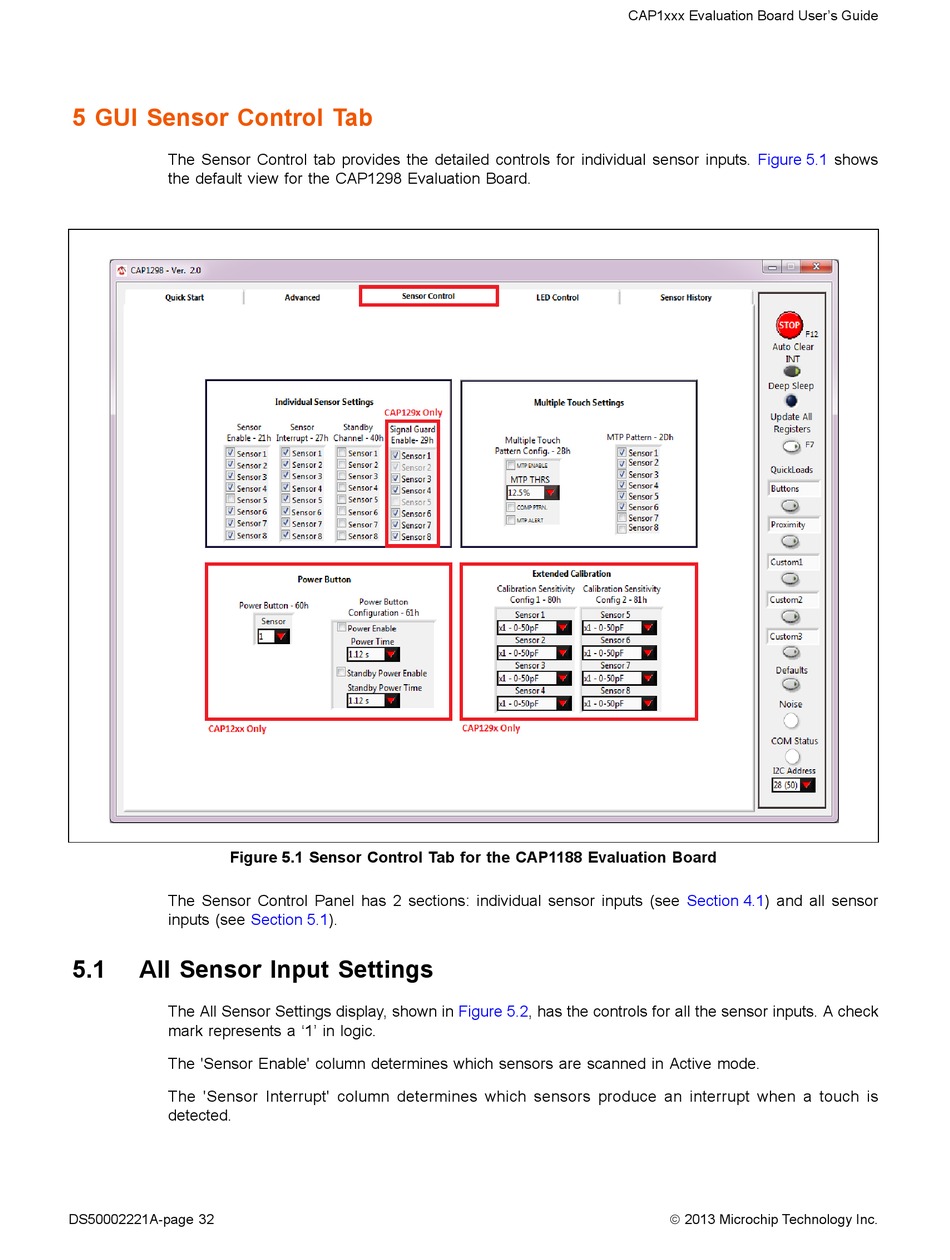

Figure 5.1 Sensor Control Tab
The Sensor Control Panel has 2 sections: individual sensor inputs (see
inputs (see
5.1 All Sensor Input Settings
The All Sensor Settings display, shown in
mark represents a '1' in logic.
The 'Sensor Enable' column determines which sensors are scanned in Active mode.
The 'Sensor Interrupt' column determines which sensors produce an interrupt when a touch is
detected.
DS50002221A-page 32
Section 5.1).
CAP1xxx Evaluation Board User's Guide
for the CAP1188 Evaluation Board
Figure 5.2, has the controls for all the sensor inputs. A check
Figure 5.1 shows
Section 4.1) and all sensor
