CAP1xxx Evaluation Board User's Guide
The evaluation board GUI comes with several sample configuration files which vary the settings for
different functions.
4.5 Communications Status and Control Panel
Along the right side of the GUI is the control panel shown in
Status and Control Panel, which controls and displays the status of the communications between the
GUI software and the evaluation board and includes buttons for loading configurations. This control
panel is always displayed.
 2013 Microchip Technology Inc.

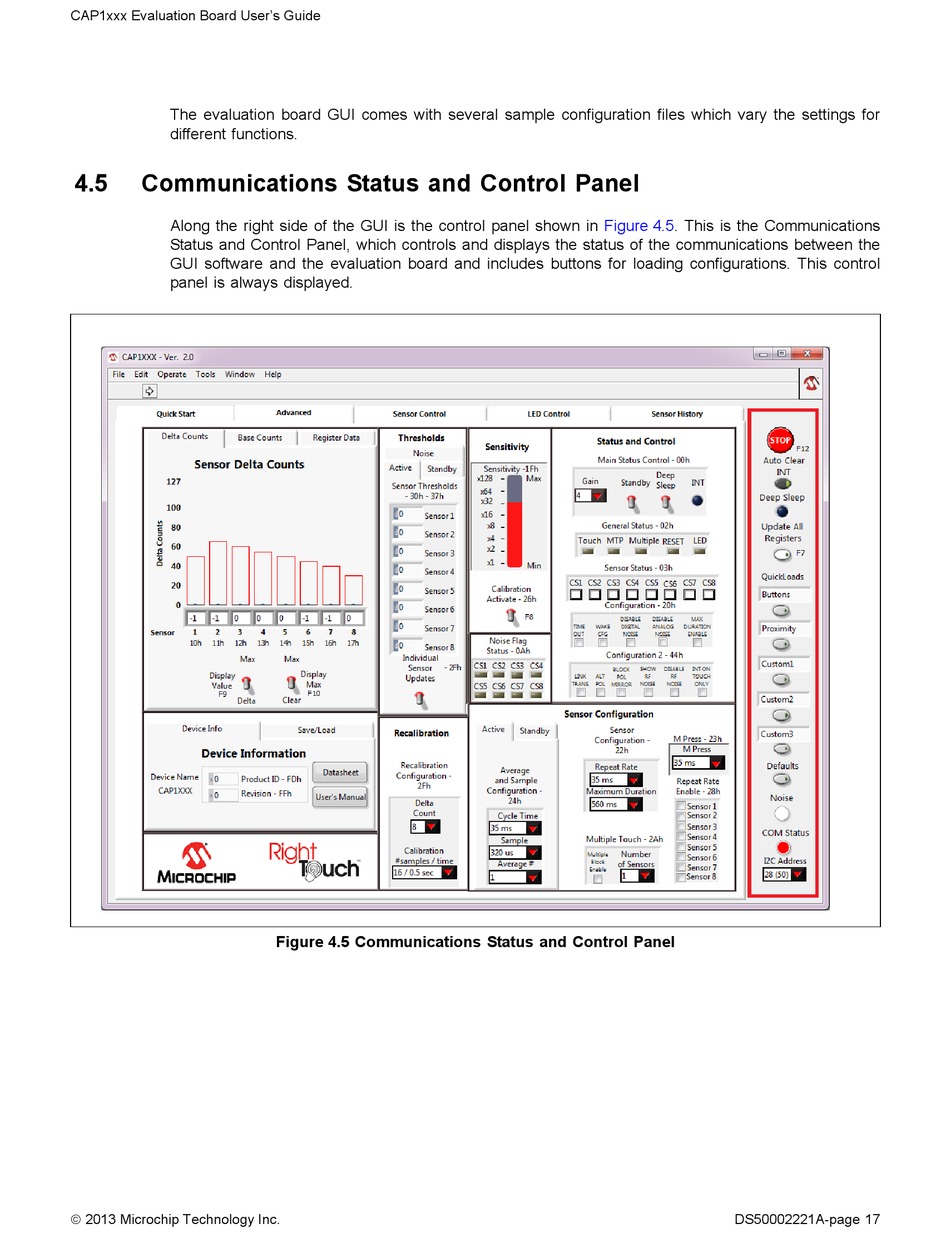

Figure 4.5 Communications Status and Control Panel
Figure 4.5. This is the Communications
