4.10 Thresholds Control Panel
The Thresholds Control Panel, shown in

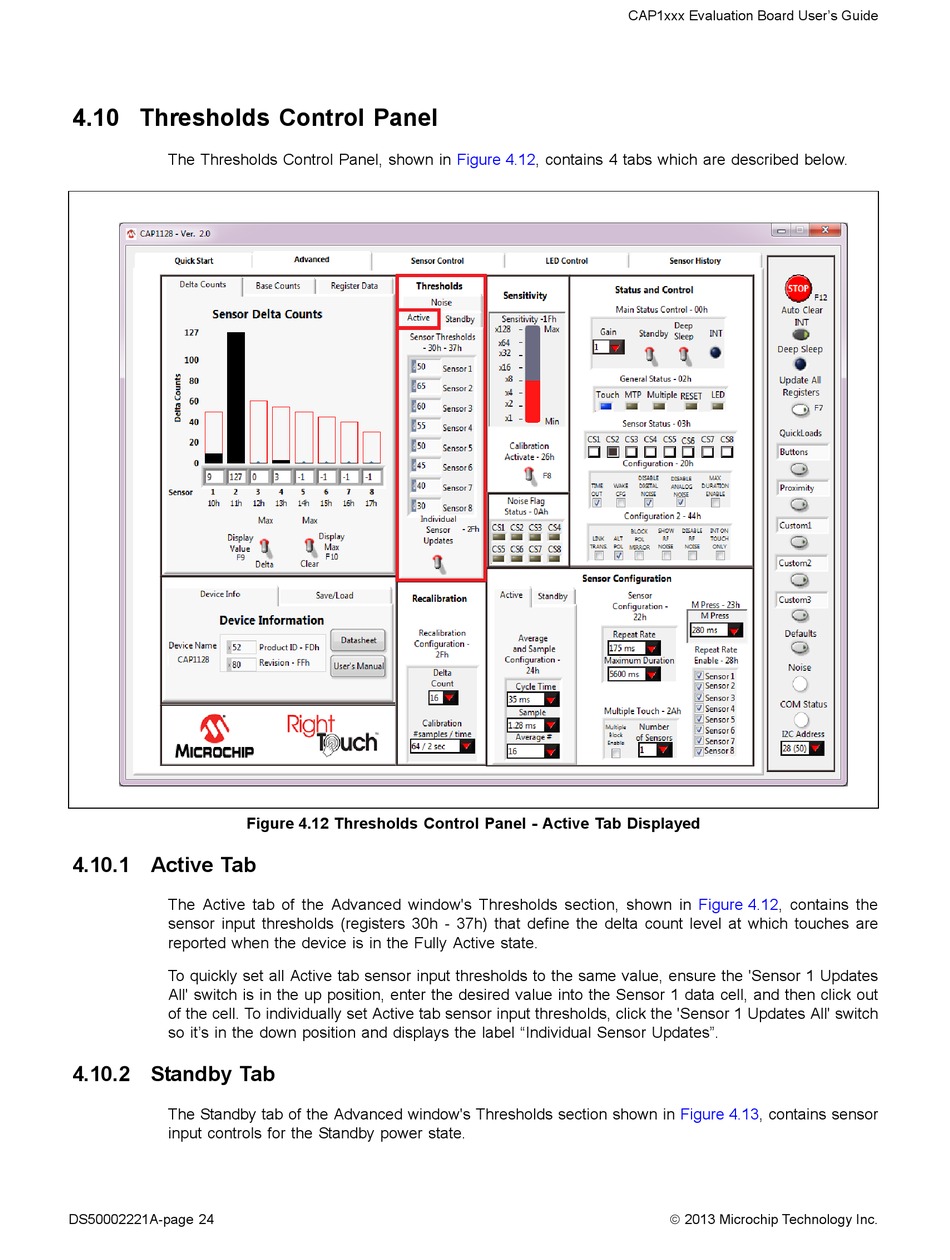

Figure 4.12 Thresholds Control Panel - Active Tab Displayed

4.10.1 Active Tab

The Active tab of the Advanced window's Thresholds section, shown in
sensor input thresholds (registers 30h - 37h) that define the delta count level at which touches are
reported when the device is in the Fully Active state.
To quickly set all Active tab sensor input thresholds to the same value, ensure the 'Sensor 1 Updates
All' switch is in the up position, enter the desired value into the Sensor 1 data cell, and then click out
of the cell. To individually set Active tab sensor input thresholds, click the 'Sensor 1 Updates All' switch
so it's in the down position and displays the label "Individual Sensor Updates".
4.10.2 Standby Tab
The Standby tab of the Advanced window's Thresholds section shown in
input controls for the Standby power state.
