To save device configuration settings:
Using the GUI, configure the CAP1xxx as desired.

Select the Save/Load tab.

Type in a path, or click the folder icon to browse to your desired save location.

Click the 'SAVE' switch to store the configuration.

Notes:
1. The file should be named with the extension '.txt' or similar plain-text file format. The data is saved
in two columns separated by tabs. The first column is the register's address, and the second
column is the register's value.
2. If a file with the same name already exists, the file will be overwritten and old data will be lost.
3. When a file is loaded, the Auto Clear INT button is disabled. Click it to re-enable auto-clearing of
interrupts (see
Once a file is saved, it can be recalled at any time by selecting the file in the data path window and
clicking the "LOAD" switch. The file can also be linked to a QuickLoad button (see
"QuickLoad
DS50002221A-page 16

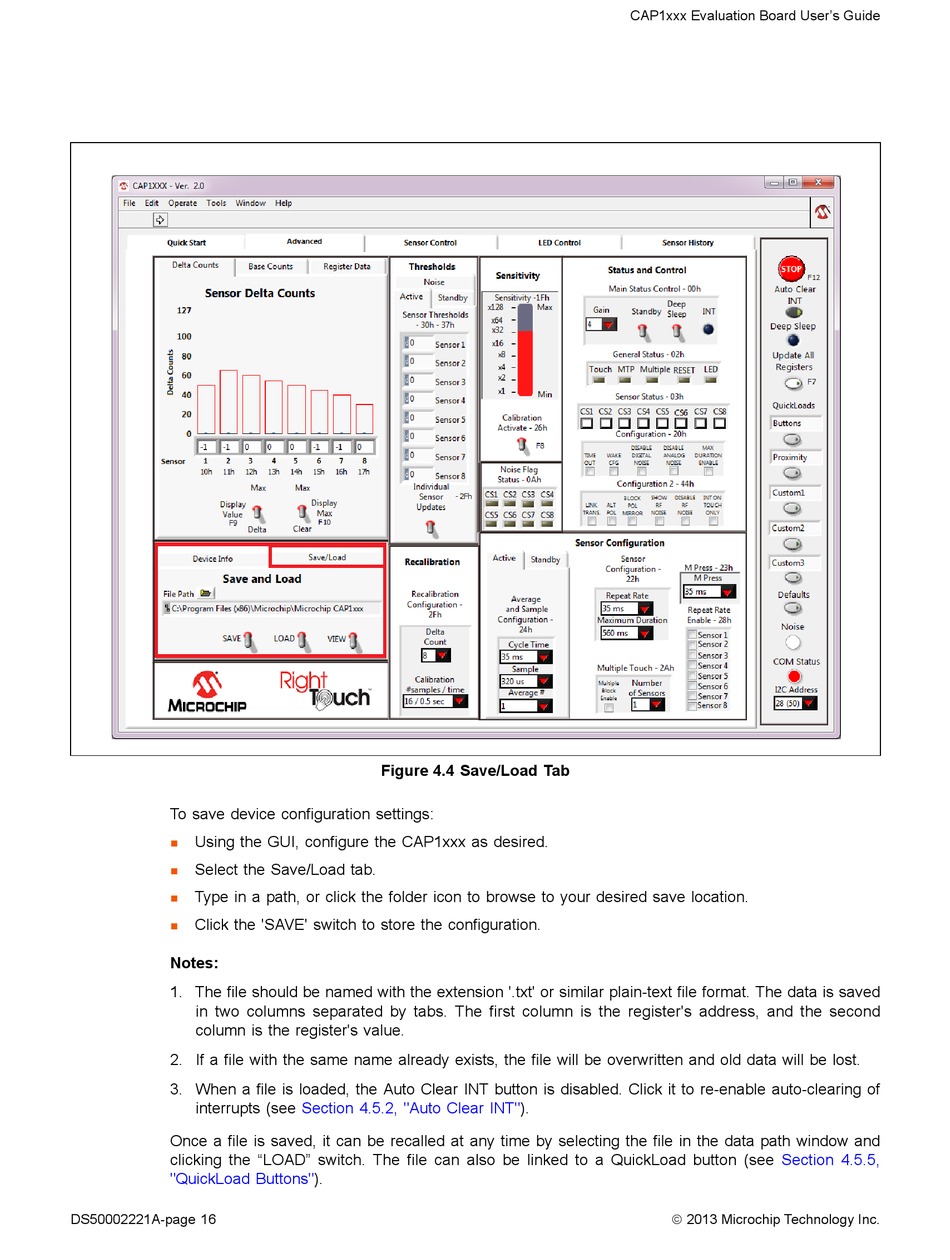

Figure 4.4 Save/Load Tab
Section 4.5.2, "Auto Clear
Buttons").
