40 MDS entraNET 900 System Guide (Preliminary)
Table 2-3. Serial Port Application Configuration
MDS entraNET 900
Unit Location
1. Either COM port can be used, but they must be the same ones at
both ends of the link. Both COM ports can be used simultaneously for
two independent data channels.
2. This address is an example only. Any Class D IP address will work.

2.5.6 Mixed Modes

Note that in this example, the TCP mode does not involve the Access
Point. Thus, the transceiver in a single network can run in both modes at
the same time. In other words, some Remotes can be configured for TCP
mode while others can be configured (along with the Access Point) for
UDP mode.
In this configuration, the Host PC can use both data paths to reach the
RTUs. This may be helpful when a mixed collection of RTUs is present
where some RTUs can operate in a broadcast form while others cannot.
(See Figure 2-19 on Page 40
Operation and Data Flow
• Communicate with RTU A by Telneting to Remote 1, port 30011.
• Communicate with RTU B by Telneting to Remote 2, port 30011.
• Communicate with RTUs C and D by sending and receiving data
from the Access Point's
• All communication paths can be used simultaneously.
iNET 900
Access Point
Ethernet
Crosssover
Terminal
EIA-232
or Computer

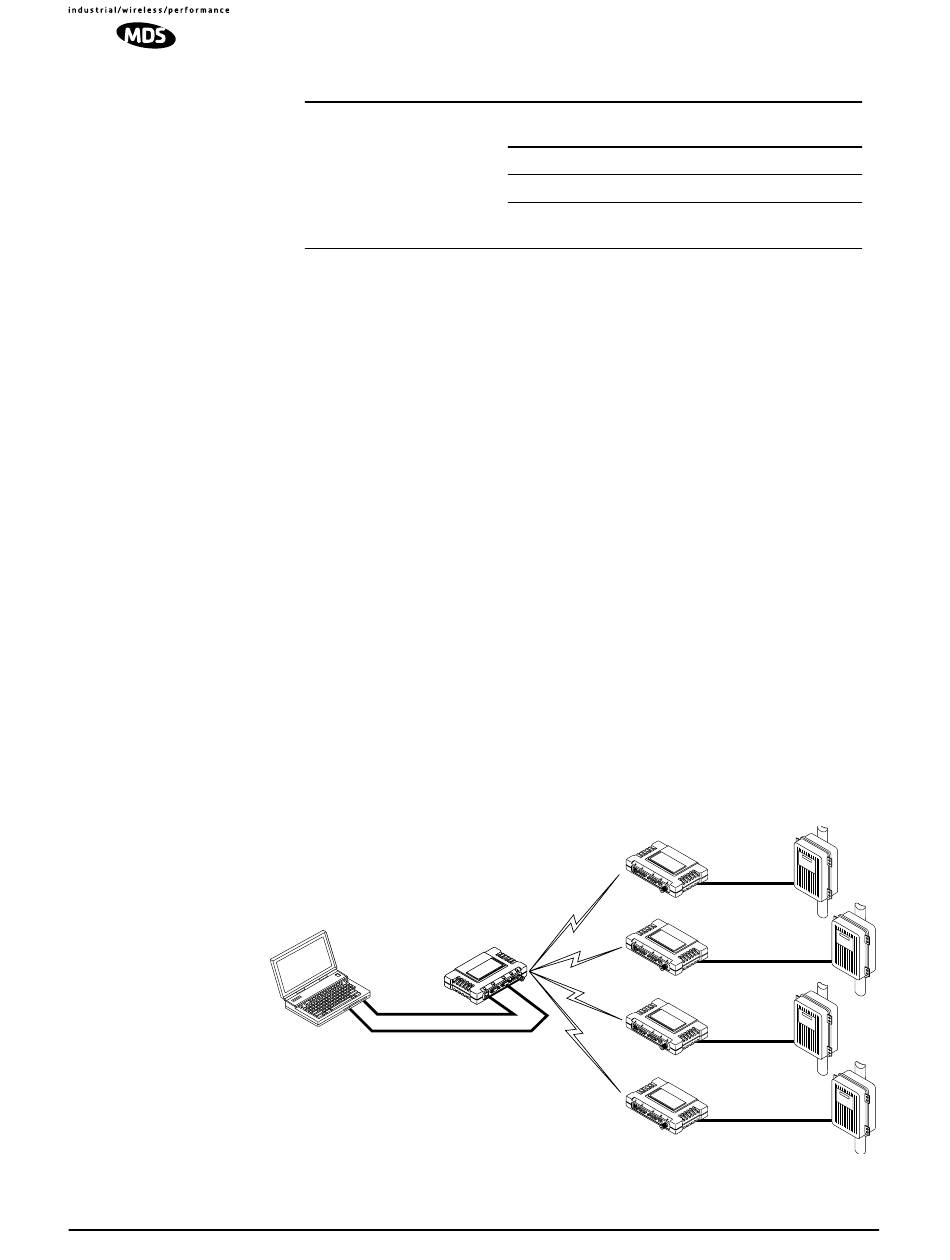

Figure 2-19. Mixed-Modes Application Diagram
Menu Item Setting
Send to Port 30011
Receive on Port 30011
Receive on Address 224.254.1.1 —
Multicast Address
and Table 2-4 on Page
port.
COM
Invisible place holder
MDS 05-4055A01, Rev. A
2
41)
RTU–A
EIA-232
iNET 900
Remote 1
RTU–B
EIA-232
iNET 900
Remote 2
RTU–C
EIA-232
iNET 900
Remote 3
RTU–D
EIA-232
iNET 900
Remote 4
