Mixed Modes - Microwave Data Systems iNET 900 Series User Manual

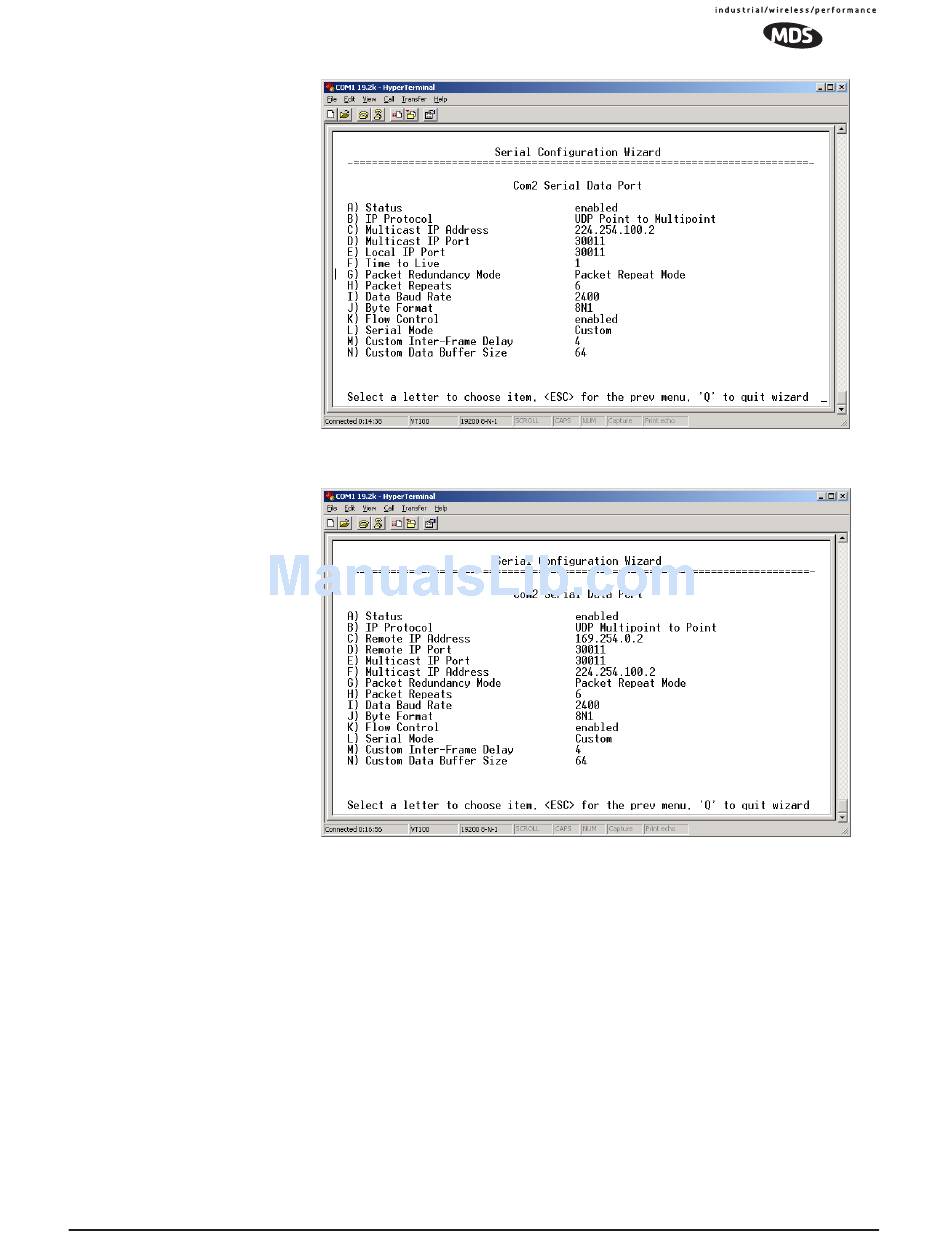

Figure 3-34. Access Point Serial Port Configuration
Figure 3-35. Remote Radio Serial Port Configuration

3.6.9 Mixed Modes

Note that in this example, the TCP mode does not involve the Access
Point. Thus, the transceiver in a single network can run in both modes at
the same time. In other words, some Remotes can be configured for TCP
mode while others can be configured (along with the Access Point) for
UDP mode.
In this configuration, the Host PC can use both data paths to reach the
RTUs. This may be helpful when a mixed collection of RTUs is present
where some RTUs can operate in a broadcast form while others cannot
(see Figure 3-36 on Page 72 and Table 3-4 on Page 72).
MDS 05-2806A01, Rev. E.1 MDS iNET 900 Series User's Guide 71
