1.1 PRODUCT DESCRIPTION

This manual presents installation and operating instructions for the
MDS entraNET 900 system. It is for use by professional installers who
are expected to install, operate, and perform basic maintenance on the
system.
The MDS entraNET 900 system is an easy-to-install wireless solution
that supports long range Serial and Ethernet data transmission at speeds
up to 115.2 kbps. The system includes an Access Point transceiver (AP)
and two types of Remote transceivers—Serial or Ethernet. These units
serve a variety of network configurations.
of the entraNET family.
Serial Remote

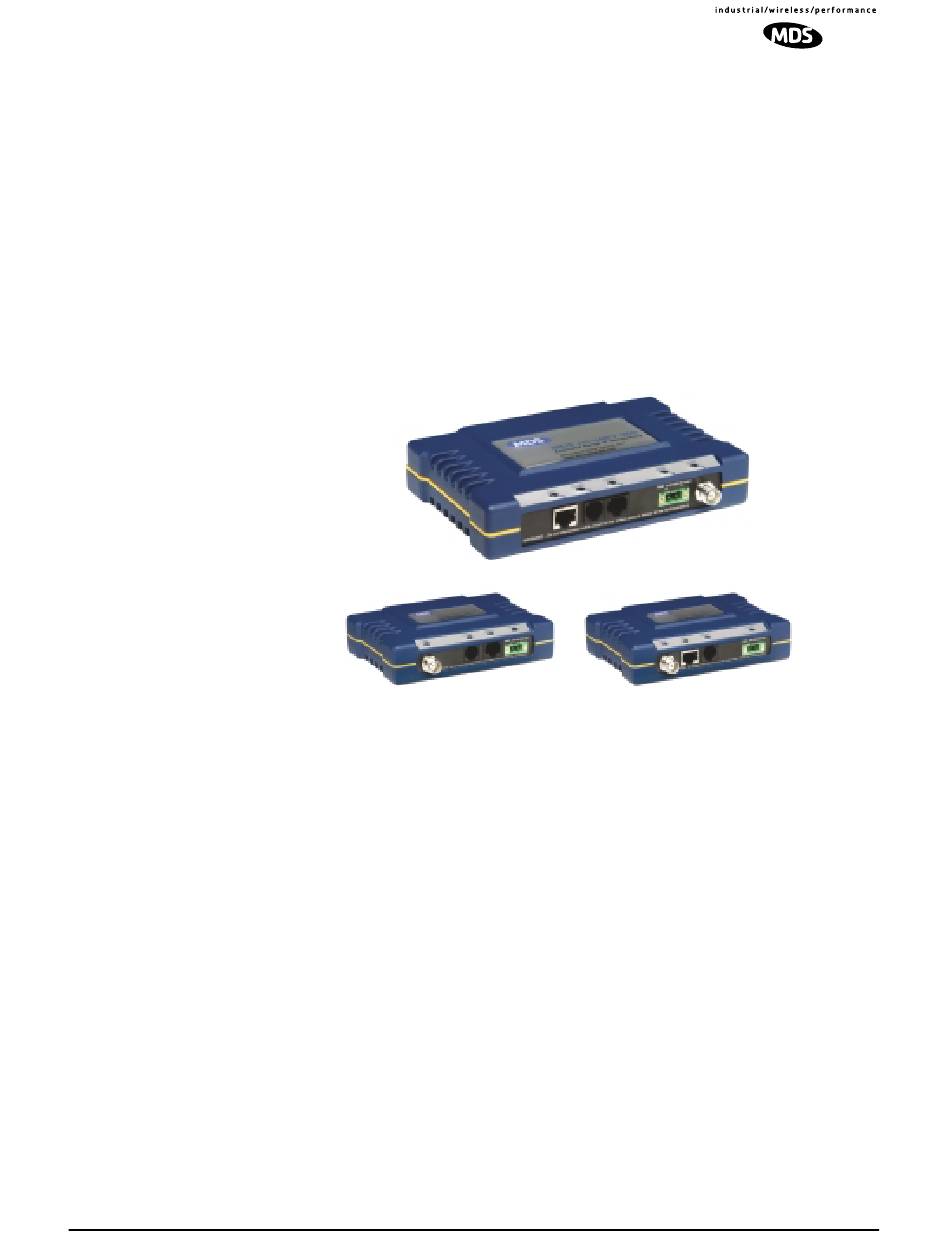

Figure 1-1. MDS entraNET 900 Transceivers
MDS entraNET units are housed in compact and rugged die-cast cases.
They need only be protected from direct exposure to the weather. The
transceivers are supplied with optional flat surface or 35 mm DIN rail
mounting brackets, depending on customer requirements.
Basic installation typically employs an omni-directional antenna at the
Access Point location and a directional antenna at each associated
Remote. The antenna is a vital link in the system and must be chosen and
installed correctly. Refer to
on choosing proper sites and antennas.
For basic services, you simply hook up an antenna, connect your
Ethernet LAN to the transceiver's
and set a few operating parameters as necessary and you are done. No
license is required for operation in the U.S.A., Canada, and many other
countries.
Data network security is a vital issue in today's wireless world. The
MDS entraNET's design provides multiple tools to help you build a net-
work that minimizes the risk of eavesdropping and unauthorized access.
