Serial Data Port Configuration Menu - Microwave Data Systems MDS entraNET 900 System Manual

MDS 05-4055A01, Rev. A
If you are connecting EIA-232 serial devices to the transceiver, review
these parameters carefully.
Serial Configuration Wizard
The Serial Configuration Wizard (FW≥ 3.0) available through the
Data Port Configuration Menu
serial ports. The wizard uses a step-by-step process, will eliminate pos-
sible conflicting settings, and streamline complex configurations.
2.5.2 Serial Data Port Configuration Menu
The first two menu present the identical parameter fields for each port
with one exception—Flow Control. This is available only on Com2.

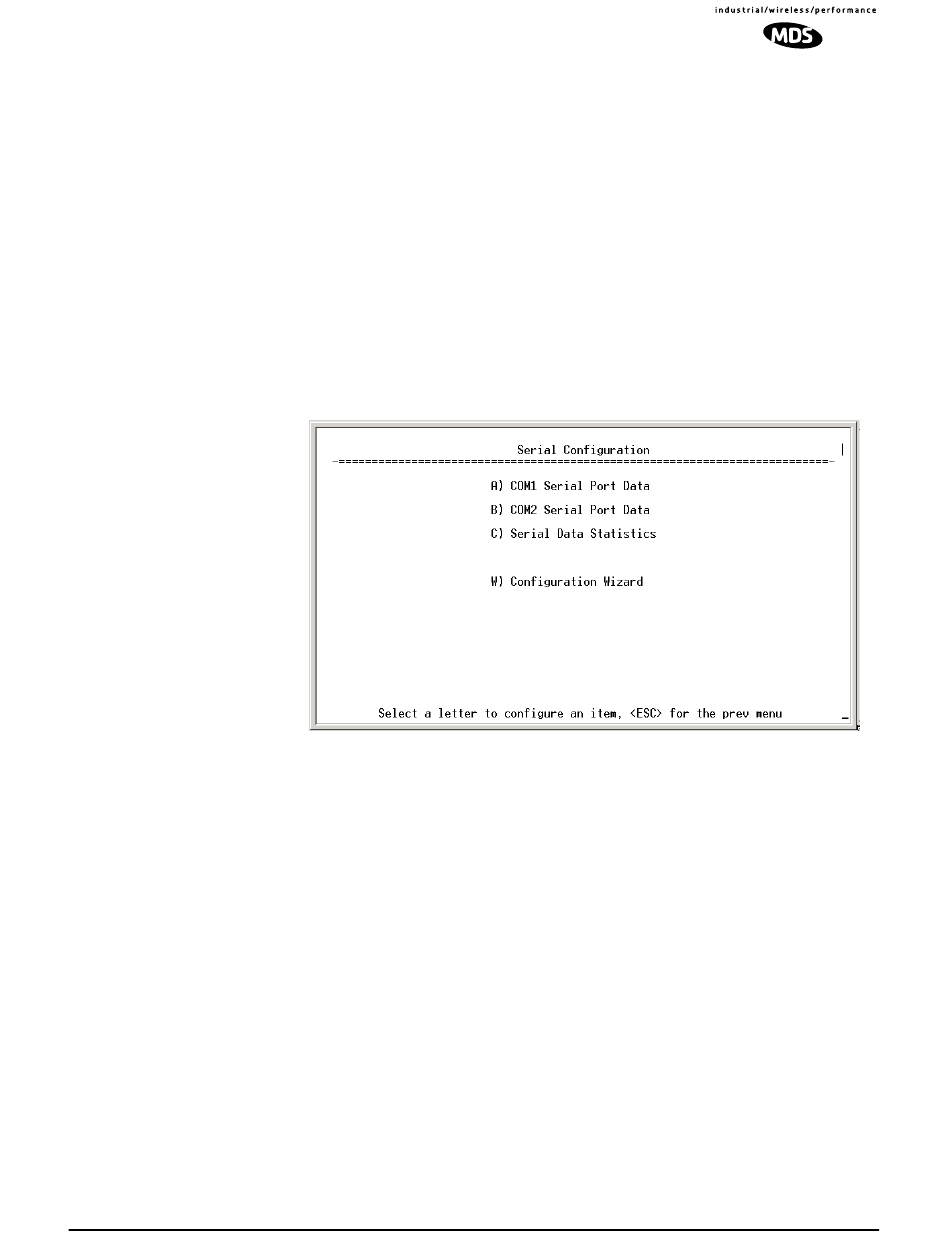

Figure 2-13. COM1/2—Serial Data Port Configuration Menu
• Serial Configuration Wizard—Tool for configu-
ration of serial ports using a step-by-step process.
• Com1 Serial Data Port—For additional information
see Page 33.
• Com2 Serial Data Port—For additional information
see Page 33.
• Serial Data Statistics—Provides statistics on the
serial and IP activity through the
(See Page 36
MDS entraNET 900 System Guide (Preliminary)
is recommended for configuration of
COM1
for details)
Serial
and ports.
COM2
33
