ETC Installation Guide
ColorSource Linear v1.7

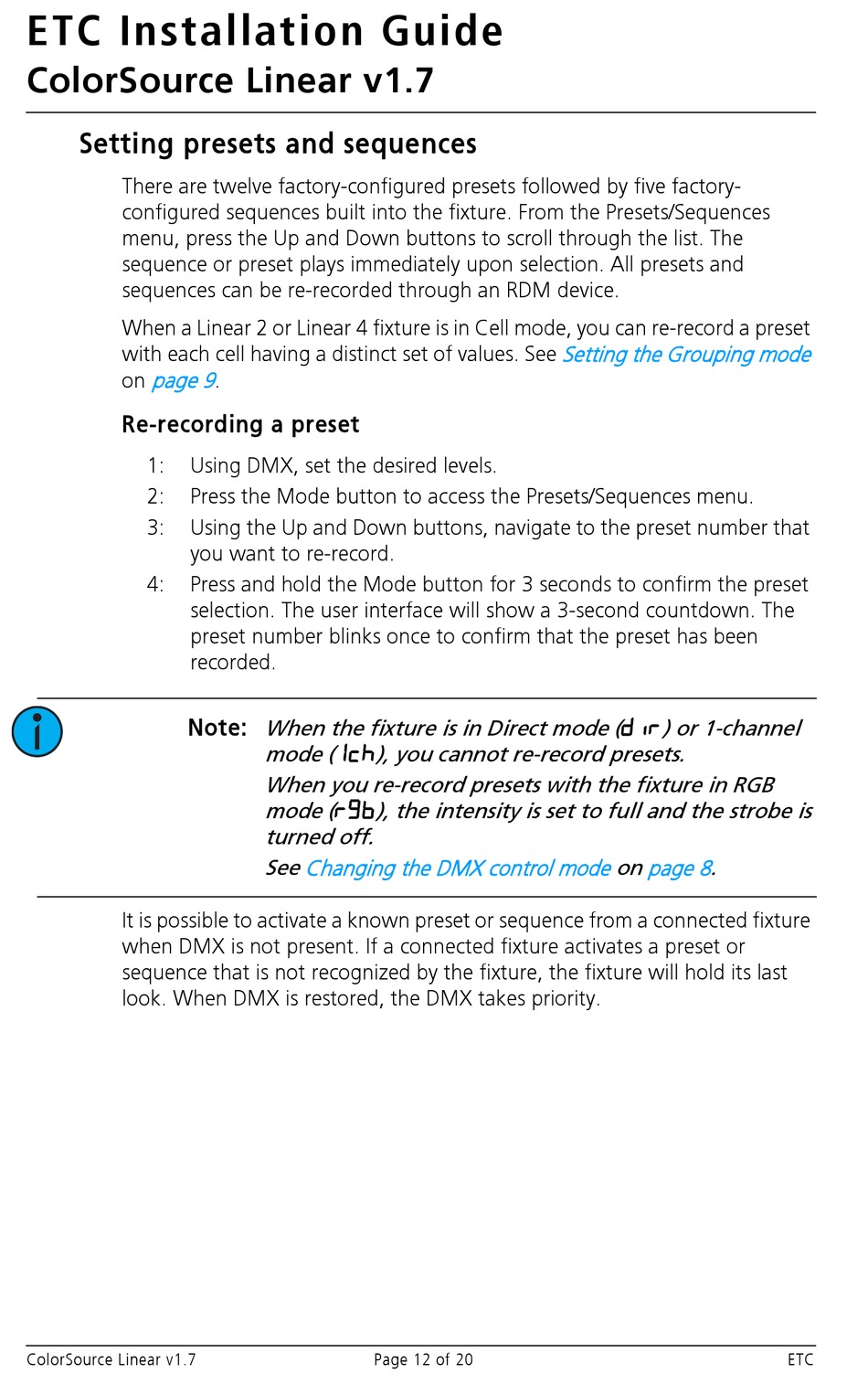

Setting presets and sequences

There are twelve factory-configured presets followed by five factory-
configured sequences built into the fixture. From the Presets/Sequences
menu, press the Up and Down buttons to scroll through the list. The
sequence or preset plays immediately upon selection. All presets and
sequences can be re-recorded through an RDM device.
When a Linear 2 or Linear 4 fixture is in Cell mode, you can re-record a preset
with each cell having a distinct set of values. See
page 9
on

Re-recording a preset

1:
2:
3:
4:
Note: When the fixture is in Direct mode (
It is possible to activate a known preset or sequence from a connected fixture
when DMX is not present. If a connected fixture activates a preset or
sequence that is not recognized by the fixture, the fixture will hold its last
look. When DMX is restored, the DMX takes priority.
ColorSource Linear v1.7
.
Using DMX, set the desired levels.
Press the Mode button to access the Presets/Sequences menu.
Using the Up and Down buttons, navigate to the preset number that
you want to re-record.
Press and hold the Mode button for 3 seconds to confirm the preset
selection. The user interface will show a 3-second countdown. The
preset number blinks once to confirm that the preset has been
recorded.

mode (
When you re-record presets with the fixture in RGB

mode (
turned off.
See
Changing the DMX control mode
), you cannot re-record presets.
), the intensity is set to full and the strobe is
Page 12 of 20
Setting the Grouping mode

) or 1-channel
on
page 8.
