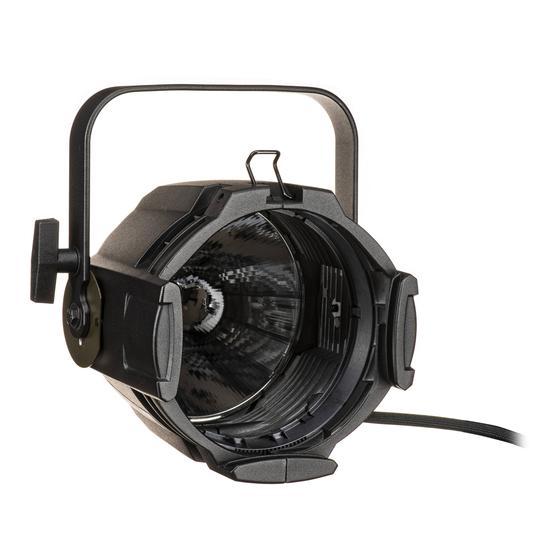

Source Four PAR
Source Four PAR
Please note the following safety warnings before use:
•
mount the Source Four PAR on or near combustible surfaces.
Do not
•
operate the Source Four PAR without a lens installed.
Do not
• Always hang the Source Four PAR with the color frame retaining clip in the locked
position.
Accessories
Color frame 7 .5 in. sq./6.7 in. inside diameter)
Safety cable (31 in.)
C-clamp
Very Narrow Spot lens
Narrow Spot lens
Medium Flood lens
Wide Flood lens
Set of four Source Four PAR lenses
(VNSP , NSP , MFL, WFL)
Yoke locking knob
Retaining clip
Lens catcher
Lens
Color frame
407CF
400SC
400CC
400-VNSP
400-NSP
400-MFL
400-WFL
400LS4
Yoke
Lens rotation ring
Color frame holder
Tabs
Source Four PAR • 1
Lamp
housing
Spring clip
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ETC Source Four PAR
Summary of Contents for ETC Source Four PAR
- Page 1 Do not • operate the Source Four PAR without a lens installed. Do not • Always hang the Source Four PAR with the color frame retaining clip in the locked position. Accessories Color frame 7 .5 in. sq./6.7 in. inside diameter) 407CF Safety cable (31 in.)
- Page 2 HPL lamps Use the HPL lamp only in Source Four and Source Four PAR fixtures manufactured and sold by Electronic Theatre Controls, Inc. use lamps other than the HPL in Do not Source Four PAR fixtures. Lamp code Watts Volts...
- Page 3 Lens identification Lenses for the Source Four PAR come in four versions. The type or beam spread can be identified by the lens texture. VNSP Narrow spot Very narrow spot Stipple glass (slight diffuse texture) Clear glass 19° Round beam shape 15°...
- Page 4 Asia Room 605-606 • Tower III • Enterprise Square • 9 Sheung Yuet Road • Kowloon Bay • Hong Kong • Tel: (+852) 2799 1220 • Fax: (+852) 2799 9325 World Wide Web: http://www.etcconnect.com • Email: mail@etcconnect.com Specifications subject to change. Source Four PAR is protected by US patent numbers 5,268,613. US and International Patents Pending. 7061M1001.
