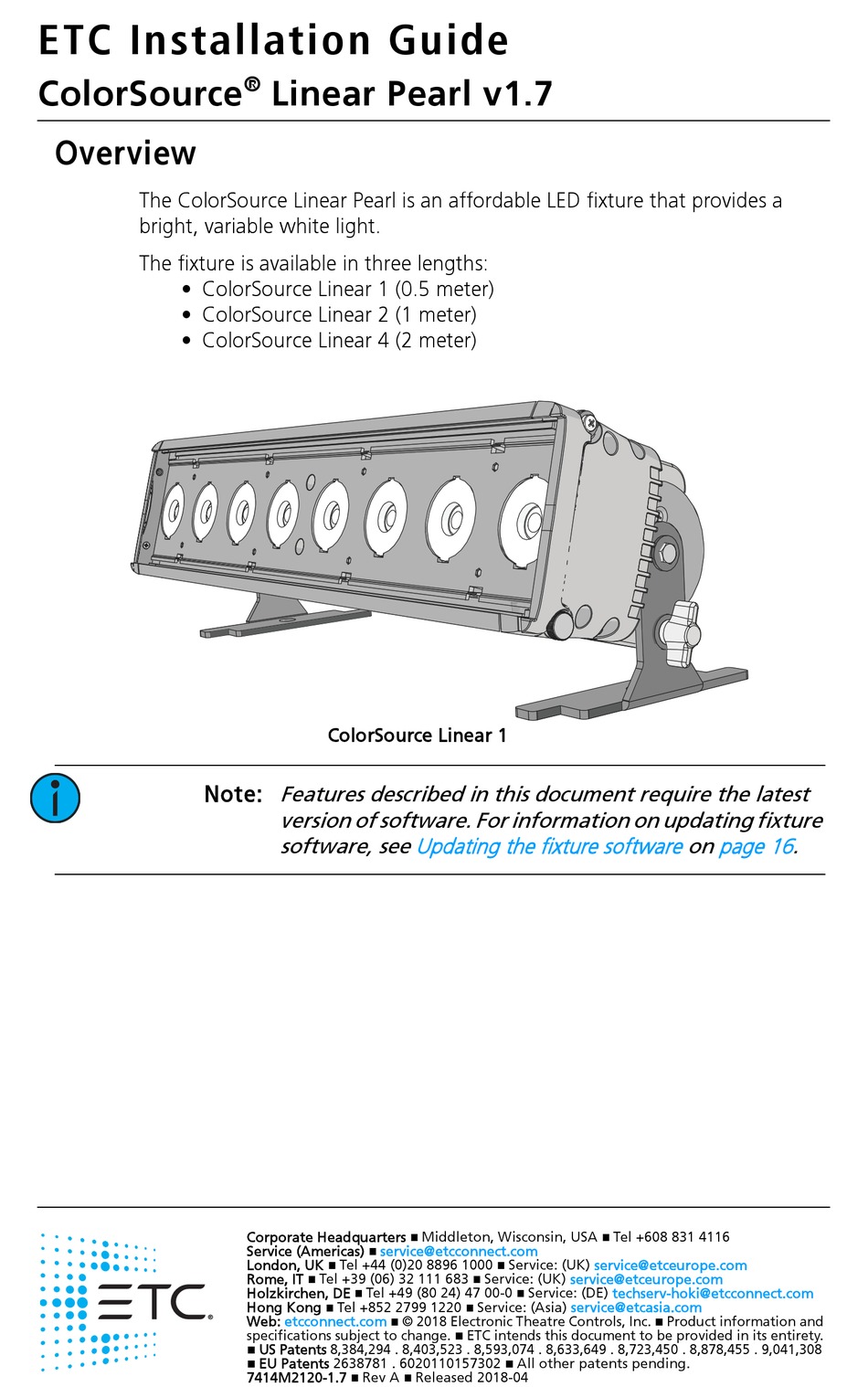

ETC Installation Guide
ColorSource
Overview
The ColorSource Linear Pearl is an affordable LED fixture that provides a
bright, variable white light.
The fixture is available in three lengths:
• ColorSource Linear 1 (0.5 meter)
• ColorSource Linear 2 (1 meter)
• ColorSource Linear 4 (2 meter)
®
Linear Pearl v1.7
ColorSource Linear 1
Note: Features described in this document require the latest
version of software. For information on updating fixture
software, see
Corporate Headquarters
Service (Americas)
London, UK
Tel +44 (0)20 8896 1000
Rome, IT
Tel +39 (06) 32 111 683
Holzkirchen, DE
Tel +49 (80 24) 47 00-0
Hong Kong
Tel +852 2799 1220
Web:
etcconnect.com
specifications subject to change.
US Patents 8,384,294 . 8,403,523 . 8,593,074 . 8,633,649 . 8,723,450 . 8,878,455 . 9,041,308
EU Patents 2638781 . 6020110157302
7414M2120-1.7
Rev A
Updating the fixture software
Middleton, Wisconsin, USA
service@etcconnect.com
Service: (UK)
Service: (UK)
Service: (DE)
Service: (Asia)
© 2018 Electronic Theatre Controls, Inc.
ETC intends this document to be provided in its entirety.
All other patents pending.
Released 2018-04
on
page
Tel +608 831 4116
service@etceurope.com
service@etceurope.com
techserv-hoki@etcconnect.com
service@etcasia.com
Product information and
16.
Advertisement
Table of Contents
Related Manuals for ETC ColorSource Linear Pearl
Summary of Contents for ETC ColorSource Linear Pearl
- Page 1 ® ColorSource Linear Pearl v1.7 Overview The ColorSource Linear Pearl is an affordable LED fixture that provides a bright, variable white light. The fixture is available in three lengths: • ColorSource Linear 1 (0.5 meter) • ColorSource Linear 2 (1 meter) •...
- Page 2 Environment The ColorSource Linear Pearl operates in ambient temperatures of 0°C–40°C and comes with a variable-speed fan. Note: The ColorSource Linear Pearl is for indoor use only. Note: • Maximum recommended ambient operating temperature: Ta = 40°C (104°F)
-
Page 3: Typical Power Consumption
ETC Installation Guide ColorSource Linear Pearl v1.7 Electrical • Operates between 100V and 240VAC at a frequency of 50/60Hz. • Maximum power consumption: - Linear 1: 120W - Linear 2: 240W - Linear 4: 480W • Up to 9 cells (0.5 m segments) may be linked via power thru connector. -
Page 4: Installation
Contact your local dealer for more information. Installation Mounting The ColorSource Linear Pearl ships with a pair of floor trunnions for mounting. Note: Ensure that the trunnions are installed with the feet inward so that fixtures can be lined up end-to-end, if needed. -
Page 5: Safety Cable
RJ45 connectors for data in and thru Conversion cables are available from ETC. Please contact your ETC customer service representative and request part number W6538 for RJ45 to female XLR or part number W6539 for RJ45 to male XLR. -
Page 6: Setting Up The Fixture
ETC Installation Guide ColorSource Linear Pearl v1.7 Setting up the fixture See the fixture illustrations below and on the following page for reference. Plug power cord into the powerCON In connector on the rear of the fixture. Make any power-thru cable connections prior to applying a power source. -
Page 7: Adjusting The Tilt
ETC Installation Guide ColorSource Linear Pearl v1.7 Power and data connectors are paired on each Grouping button side to facilitate and LED indicators daisy-chaining Up and Down buttons Mode button User interface (display) Linear 2 and Linear 4 Powering up Press any button to wake the display. -
Page 8: Mode Button
ETC Installation Guide ColorSource Linear Pearl v1.7 Mode button Pressing the Mode button activates the Presets menu; the last active preset plays automatically. Pressing the Mode button a second time deactivates the selected preset. The display will revert to show the DMX start address. -
Page 9: Setting The Grouping Mode
ETC Installation Guide ColorSource Linear Pearl v1.7 Setting the Grouping mode The ColorSource Linear 2 and the ColorSource Linear 4 fixtures have two Grouping modes: • Group: Entire array functions as a single fixture. • Cell: Each 0.5 m segment (or “cell”) of the array functions as... - Page 10 ETC Installation Guide ColorSource Linear Pearl v1.7 Linear 2 in Cell mode (Variable Channel (Direct) (1 Channel) Color Temperature) Intensity Intensity Intensity Color temperature Warm white Intensity Intensity Cool white Color temperature Strobe* Intensity Warm white Cool white Strobe* *Use DMX values of 0 or 255 for no strobe.
- Page 11 ETC Installation Guide ColorSource Linear Pearl v1.7 Linear 4 in Cell mode (Variable Channel (Direct) (1 Channel) Color Temperature) Intensity Intensity Intensity Color temperature Warm white Intensity Intensity Cool white Intensity Color temperature Strobe* Intensity Intensity Intensity...
-
Page 12: Color Temperature Dmx Values
ETC Installation Guide ColorSource Linear Pearl v1.7 Color temperature DMX values The table below shows the color temperature value for each DMX value when using the DMX control mode. Note that although DMX address 0 = 3200 and DMX address 255 = 5600, the fixture supports a range of color temperatures from 2725 to 6450. - Page 13 ETC Installation Guide ColorSource Linear Pearl v1.7 Color Color Color Temp Value Temp Value Temp Value 4875 147–148 5425 184–185 5975 221–222 4900 5450 6000 4925 150–151 5475 187–188 6025 224–225 4950 152–153 5500 189–190 6050 226–227 4975 5525 6075 228–229...
-
Page 14: Setting Presets
ETC Installation Guide ColorSource Linear Pearl v1.7 Setting presets There are twelve factory-configured presets built into the fixture. From the Presets menu, press the Up and Down buttons to scroll through the list. The preset plays immediately upon selection. All presets can be re-recorded through an RDM device. -
Page 15: Pre-Configured Presets
ETC Installation Guide ColorSource Linear Pearl v1.7 Pre-configured presets Preset Name Preset Name 3000K White 4700K White 3200K White 5000K White 3500K White 5200K White 4000K White 5600K White 4200K White 6000K White 4500K White 6450K White Adjusting the intensity of presets Ensure that DMX data is not present. -
Page 16: Updating The Fixture Software
ETC Installation Guide ColorSource Linear Pearl v1.7 Updating the fixture software ETC recommends using UpdaterAtor software to manage software updates. UpdaterAtor Software Quick For more information on UpdaterAtor, see the Guide , which you can download for free from etcconnect.com. -
Page 17: Installing Secondary Lenses
ETC Installation Guide ColorSource Linear Pearl v1.7 Installing secondary lenses You can use several optional accessories with the ColorSource Linear, including secondary 2: Pivot lenses (horizontal, vertical, and round). You can use either a single lens or two lenses simultaneously, and you can install them from either end of the fixture. -
Page 18: Restoring Factory Defaults
Verify that internal cables are properly connected. If the error persists, the fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. -
Page 19: Using Rdm
Linear 2 and Linear 4 fixtures in Group mode do not use sub-devices. RDM Values Manufacturer ID: 0x6574 (Electronic Theatre Controls) Model ID: • Linear 1: 0x020B (ETC ColorSource Linear 1 Pearl) • Linear 2: 0x020F (ETC ColorSource Linear 2 Pearl) • Linear 4: 0x0213 (ETC ColorSource Linear 4 Pearl) Parameter... -
Page 20: Quick Reference
Verify that internal cables are properly connected. If the error persists, the fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair.
