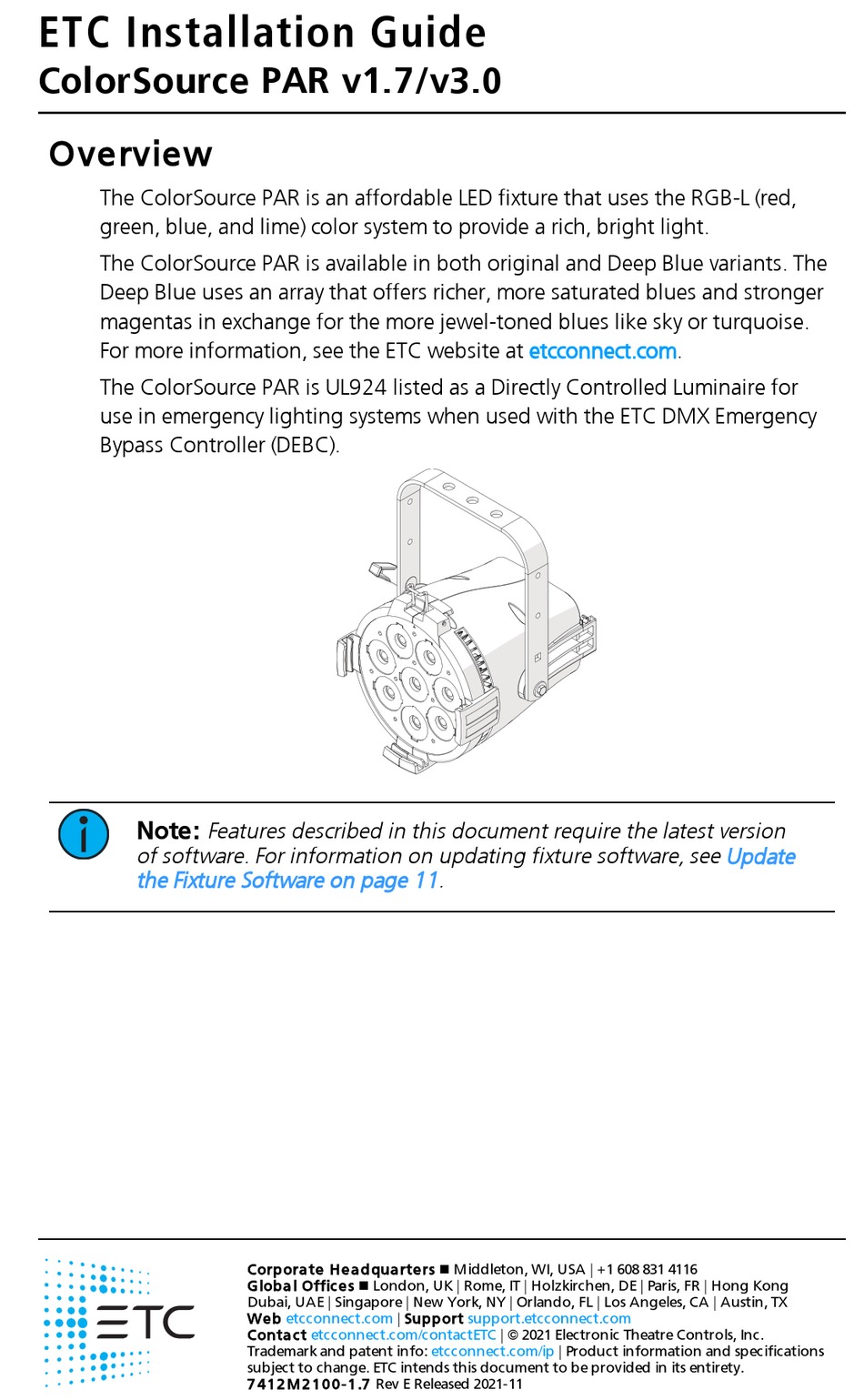

ETC Installation Guide
ColorSource PAR v1.7/v3.0
Overview
The ColorSource PAR is an affordable LED fixture that uses the RGB-L (red,
green, blue, and lime) color system to provide a rich, bright light.
The ColorSource PAR is available in both original and Deep Blue variants. The
Deep Blue uses an array that offers richer, more saturated blues and stronger
magentas in exchange for the more jewel-toned blues like sky or turquoise.
For more information, see the ETC website at etcconnect.com.
The ColorSource PAR is UL924 listed as a Directly Controlled Luminaire for
use in emergency lighting systems when used with the ETC DMX Emergency
Bypass Controller (DEBC).
Note:
of software. For information on updating fixture software, see
the Fixture Software on
Features described in this document require the latest version
page 11.
Corpora te He a dqua rte rs n Middleton, WI, USA | +1 608 831 4116
Globa l Offic e s n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong
Dubai, UAE | Singapore | New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX
We b
etcconnect.com
Conta c t
etcconnect.com/contactETC
Trademark and patent info:
subject to change. ETC intends this document to be provided in its entirety.
7 4 1 2 M 2 1 0 0 -1 .7 Rev E Released 2021-11
| Support
support.etcconnect.com
| © 2021 Electronic Theatre Controls, Inc.
etcconnect.com/ip
| Product information and specifications
Update
Advertisement
Table of Contents
Related Manuals for ETC ColorSource PAR v1.7
Summary of Contents for ETC ColorSource PAR v1.7
- Page 1 For more information, see the ETC website at etcconnect.com. The ColorSource PAR is UL924 listed as a Directly Controlled Luminaire for use in emergency lighting systems when used with the ETC DMX Emergency Bypass Controller (DEBC). Note: Features described in this document require the latest version of software.
- Page 2 Luminaire suitable for use in emergency lighting applications in accordance with 2017 National Electrical Code section 700.24 when used with an ETC DMX Emergency Bypass Controller. Equipment intended for this purpose must be properly selected, installed, and maintained so that facility conformance can be obtained.
-
Page 3: Important Safeguards
RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source lumineuse de ce projecteur n'est pas remplaçable par l'utilisateur et ne doit être remplacée seulement par un technicien qualifié. Contactez le service client ETC pour obtenir de l’assistance. IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be... - Page 4 The ETC DMX Emergency Bypass Controller that is driving the luminaire upon loss of utility power must be programmed to drive the ColorSource PAR to full illumination.
-
Page 5: Installation
Data (DMX512/RDM): Two five-pin XLR connectors OR two • RJ45 connectors for data in and thru Conversion cables are available from ETC. Please contact your ETC customer service representative and request part number W6538 for RJ45 to female XLR or part number W6539 for RJ45 to male XLR. -
Page 6: Adjust The Tilt
ETC Installation Guide ColorSource PAR v1.7/v3.0 Power in Power thru Data in Data thru Mode Up and Down User interface Power Up Press any button to wake the display. The display shows the DMX address. Set the DMX Address below You can press the Mode button to access the Presets/Sequences menu. See Play Presets and Sequences on page 9... -
Page 7: Dmx Control Channels
ETC Installation Guide ColorSource PAR v1.7/v3.0 Change the DMX Control Mode You can set the DMX control mode for the fixture to one of four available mode options. 1. Press any button to wake the display. The display shows the DMX address. - Page 8 ETC Installation Guide ColorSource PAR v1.7/v3.0 Data Loss Behavior When DMX data is lost, the fixture does one of the following actions: If you selected a preset or sequence, that preset or sequence • automatically plays. If no preset or sequence is active in the background, the fixture goes •...
-
Page 9: Pre-Configured Presets
ETC Installation Guide ColorSource PAR v1.7/v3.0 Play Presets and Sequences The fixture has twelve factory-configured presets and five factory-configured sequences. When you play a preset or sequence on a fixture: The same preset number or sequence number plays on any connected •... - Page 10 ETC Installation Guide ColorSource PAR v1.7/v3.0 Re-record Presets 1. Using DMX, set the desired levels for the new preset. 2. Press the Mode button to access the Presets/Sequences menu. 3. Press the Up button or Down button to navigate to the preset number that you want to re-record.
-
Page 11: Troubleshooting
ETC Installation Guide ColorSource PAR v1.7/v3.0 Troubleshooting Update the Fixture Software ETC recommends using UpdaterAtor software to manage software updates. For information on UpdaterAtor, see the UpdaterAtor Software Quick Guide and the UpdaterAtor Software Release Note , which you can download from etcconnect.com. -
Page 12: Restore Factory Defaults
: Screen toggles between to indicate a problem with • the color calibration. The fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair. : Screen toggles between to indicate that the fixture •... -
Page 13: Specifications And Reference
ETC Installation Guide ColorSource PAR v1.7/v3.0 Specifications and Reference For current and complete compliance and specifications, see the ColorSource PAR datasheet at etcconnect.com. Environment The ColorSource PAR operates in ambient temperatures of 0°C–40°C and comes with a variable-speed fan. The ColorSource PAR is for indoor use only. -
Page 14: Rdm Values
ETC Installation Guide ColorSource PAR v1.7/v3.0 RDM Values Parameter Fixture Value Description Manufacturer 0x6574 Electronic Theatre Controls ColorSource ColorSource PAR (v1.7) or 0x0201 ColorSource PAR CPU2 (v3.0) Model ID ColorSource ColorSource PAR Deep Blue (v1.7) or 0x0202 PAR Deep Blue ColorSource PAR Deep Blue CPU2 (v3.0) DMX Start... -
Page 15: Fcc Compliance
ETC Installation Guide ColorSource PAR v1.7/v3.0 FCC Compliance ColorSource PAR (For any FCC matters): Electronic Theatre Controls, Inc. 3031 Pleasant View Road Middleton, WI 53562 +1 (608) 831-4116 etcconnect.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,... - Page 16 ETC Installation Guide ColorSource PAR v1.7/v3.0 ColorSource PAR Page 16 of 16...
