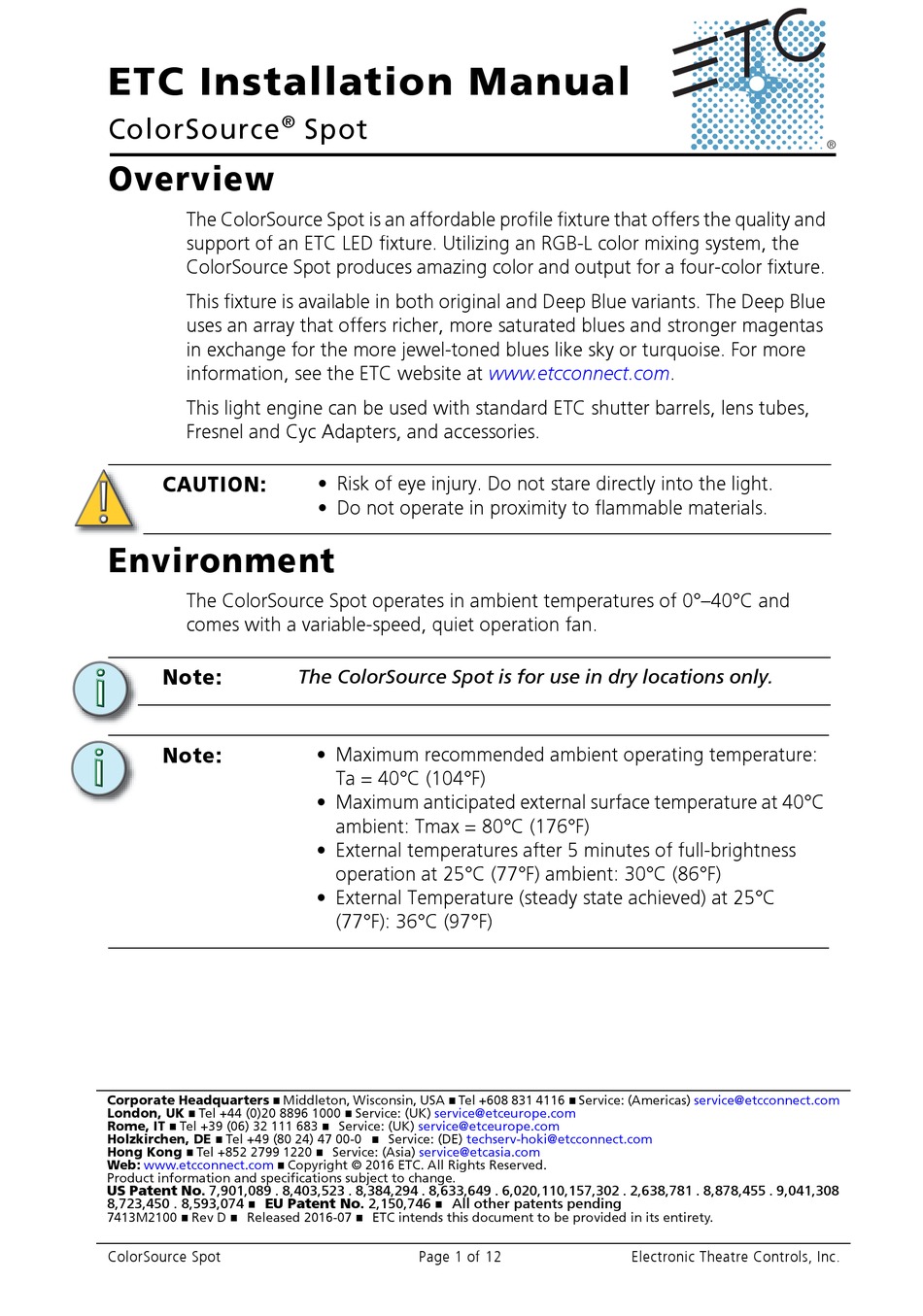

ETC Installation Manual
ColorSource
Overview

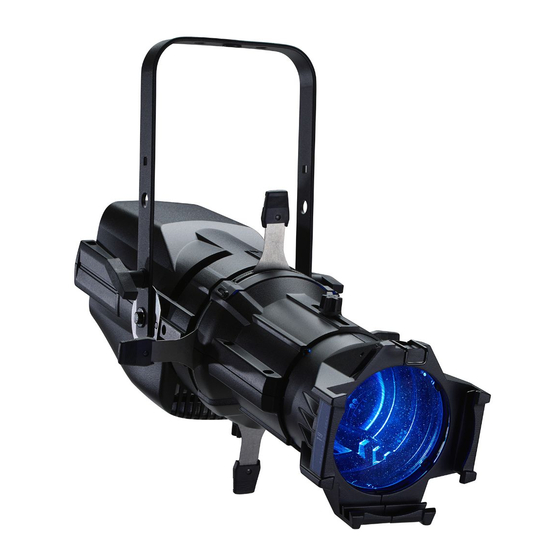

The ColorSource Spot is an affordable profile fixture that offers the quality and
support of an ETC LED fixture. Utilizing an RGB-L color mixing system, the
ColorSource Spot produces amazing color and output for a four-color fixture.
This fixture is available in both original and Deep Blue variants. The Deep Blue
uses an array that offers richer, more saturated blues and stronger magentas
in exchange for the more jewel-toned blues like sky or turquoise. For more
information, see the ETC website at www.etcconnect.com.
This light engine can be used with standard ETC shutter barrels, lens tubes,
Fresnel and Cyc Adapters, and accessories.
CAUTION:
Environment
The ColorSource Spot operates in ambient temperatures of 0°–40°C and
comes with a variable-speed, quiet operation fan.
Note:
Note:
Corporate Headquarters
London, UK
Tel +44 (0)20 8896 1000
Rome, IT
Tel +39 (06) 32 111 683
Holzkirchen, DE
Tel +49 (80 24) 47 00-0
Hong Kong
Tel +852 2799 1220
Web:
www.etcconnect.com
Product information and specifications subject to change.
US Patent No. 7,901,089 . 8,403,523 . 8,384,294 . 8,633,649 . 6,020,110,157,302 . 2,638,781 . 8,878,455 . 9,041,308
8,723,450 . 8,593,074
EU Patent No. 2,150,746
7413M2100
Rev D
Released 2016-07
ColorSource Spot
®
Spot
• Risk of eye injury. Do not stare directly into the light.
• Do not operate in proximity to flammable materials.
The ColorSource Spot is for use in dry locations only.
• Maximum recommended ambient operating temperature:
Ta = 40°C (104°F)
• Maximum anticipated external surface temperature at 40°C
ambient: Tmax = 80°C (176°F)
• External temperatures after 5 minutes of full-brightness
operation at 25°C (77°F) ambient: 30°C (86°F)
• External Temperature (steady state achieved) at 25°C
(77°F): 36°C (97°F)
Middleton, Wisconsin, USA
Service: (UK)
service@etceurope.com
Service: (UK)
service@etceurope.com
Service: (DE)
Service: (Asia)
service@etcasia.com
Copyright © 2016 ETC. All Rights Reserved.
All other patents pending
ETC intends this document to be provided in its entirety.
Page 1 of 12
Tel +608 831 4116
Service: (Americas)
techserv-hoki@etcconnect.com
Electronic Theatre Controls, Inc.
service@etcconnect.com
