ETC Installation Manual

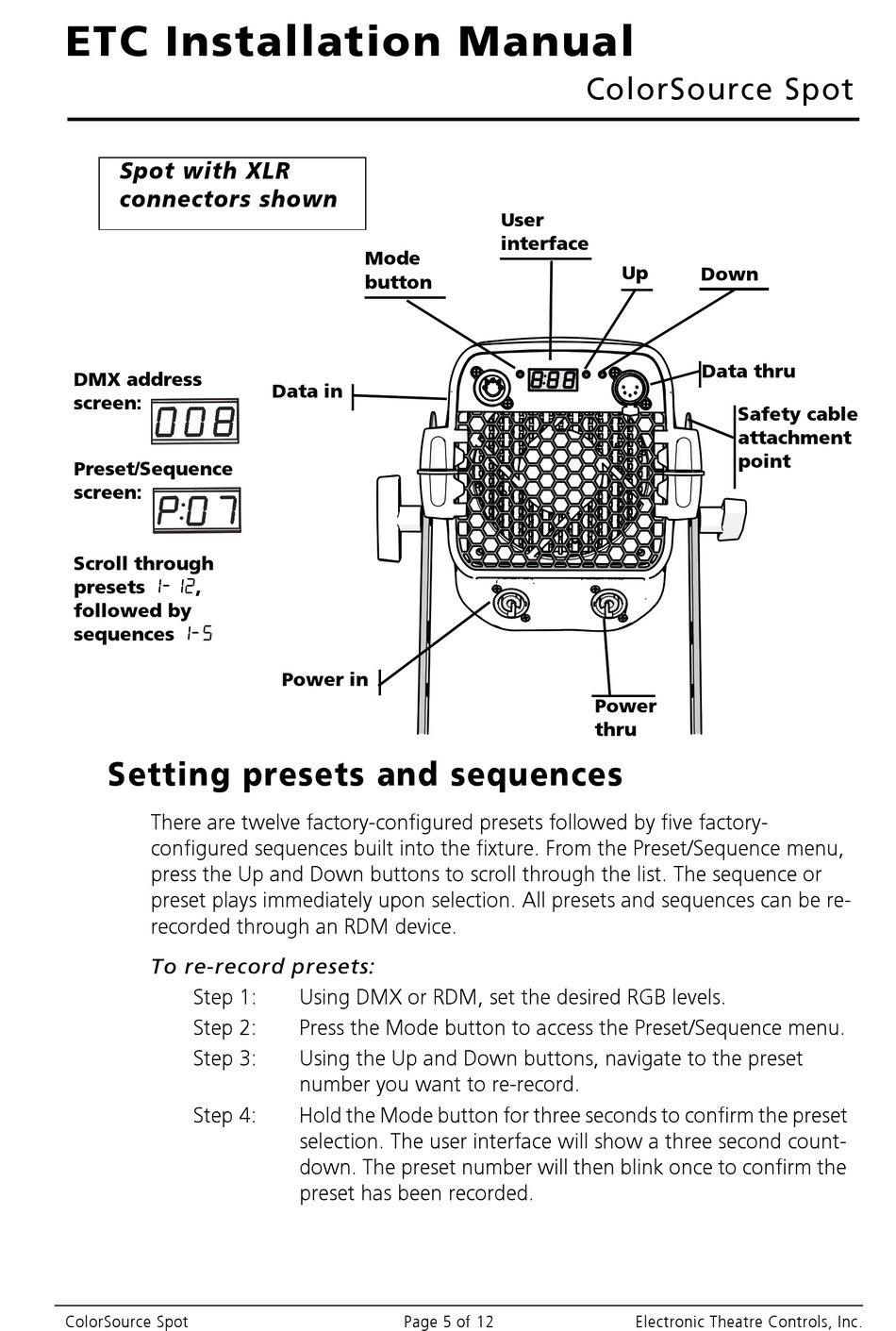

Spot with XLR
connectors shown
DMX address
screen:
Preset/Sequence
screen:
Scroll through

presets ,
followed by

sequences

Setting presets and sequences

There are twelve factory-configured presets followed by five factory-
configured sequences built into the fixture. From the Preset/Sequence menu,
press the Up and Down buttons to scroll through the list. The sequence or
preset plays immediately upon selection. All presets and sequences can be re-
recorded through an RDM device.
To re-record presets:
Step 1:
Step 2:
Step 3:
Step 4:
ColorSource Spot
Mode
button
Data in
Power in
Using DMX or RDM, set the desired RGB levels.
Press the Mode button to access the Preset/Sequence menu.
Using the Up and Down buttons, navigate to the preset
number you want to re-record.
Hold the Mode button for three seconds to confirm the preset
selection. The user interface will show a three second count-
down. The preset number will then blink once to confirm the
preset has been recorded.
Page 5 of 12
ColorSource Spot
User
interface
Up
Power
thru
Electronic Theatre Controls, Inc.
Down
Data thru
Safety cable
attachment
point
