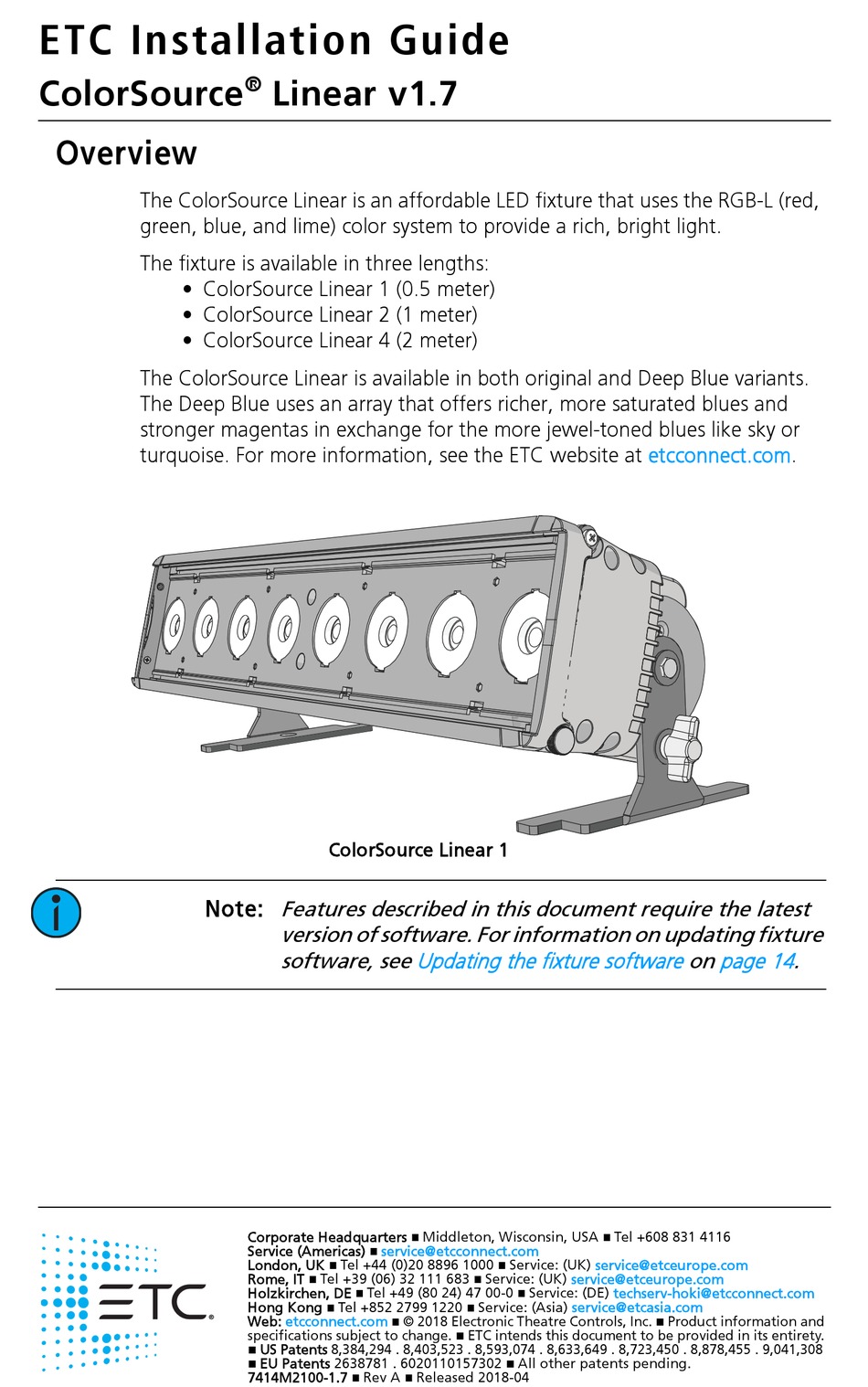

ETC Installation Guide
ColorSource
Overview

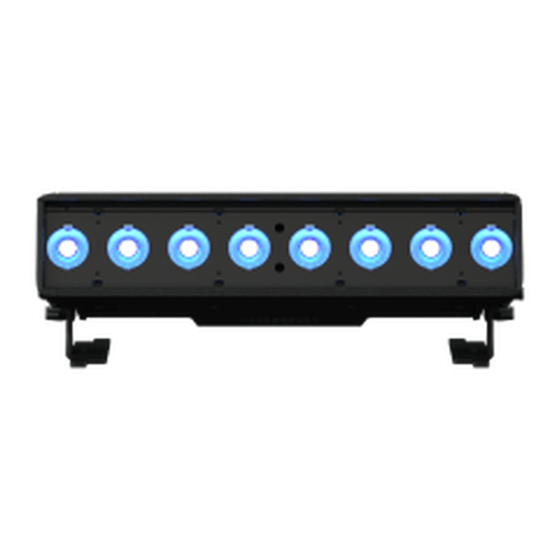

The ColorSource Linear is an affordable LED fixture that uses the RGB-L (red,
green, blue, and lime) color system to provide a rich, bright light.
The fixture is available in three lengths:
• ColorSource Linear 1 (0.5 meter)
• ColorSource Linear 2 (1 meter)
• ColorSource Linear 4 (2 meter)
The ColorSource Linear is available in both original and Deep Blue variants.
The Deep Blue uses an array that offers richer, more saturated blues and
stronger magentas in exchange for the more jewel-toned blues like sky or
turquoise. For more information, see the ETC website at etcconnect.com.
®
Linear v1.7
ColorSource Linear 1
Note: Features described in this document require the latest
version of software. For information on updating fixture
software, see
Corporate Headquarters
Service (Americas)
London, UK
Tel +44 (0)20 8896 1000
Rome, IT
Tel +39 (06) 32 111 683
Holzkirchen, DE
Tel +49 (80 24) 47 00-0
Hong Kong
Tel +852 2799 1220
Web:
etcconnect.com
specifications subject to change.
US Patents 8,384,294 . 8,403,523 . 8,593,074 . 8,633,649 . 8,723,450 . 8,878,455 . 9,041,308
EU Patents 2638781 . 6020110157302
7414M2100-1.7
Rev A
Updating the fixture software
Middleton, Wisconsin, USA
service@etcconnect.com
Service: (UK)
Service: (UK)
Service: (DE)
Service: (Asia)
© 2018 Electronic Theatre Controls, Inc.
ETC intends this document to be provided in its entirety.
All other patents pending.
Released 2018-04
on
page
Tel +608 831 4116
service@etceurope.com
service@etceurope.com
techserv-hoki@etcconnect.com
service@etcasia.com
Product information and
14.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ColorSource Linear and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETC ColorSource Linear

Summary of Contents for ETC ColorSource Linear

  • Page 1 ColorSource Linear v1.7 Overview The ColorSource Linear is an affordable LED fixture that uses the RGB-L (red, green, blue, and lime) color system to provide a rich, bright light. The fixture is available in three lengths: • ColorSource Linear 1 (0.5 meter) •...
  • Page 2 Environment The ColorSource Linear operates in ambient temperatures of 0°C–40°C and comes with a variable-speed fan. Note: The ColorSource Linear is for indoor use only. Note: • Maximum recommended ambient operating temperature: Ta = 40°C (104°F)

  • Page 3: Typical Power Consumption

    ETC Installation Guide ColorSource Linear v1.7 Electrical • Operates between 100V and 240VAC at a frequency of 50/60Hz. • Maximum power consumption: - Linear 1: 120W - Linear 2: 240W - Linear 4: 480W • Up to 9 cells (0.5 m segments) may be linked via power thru connector.

  • Page 4: Installation

    Contact your local dealer for more information. Installation Mounting The ColorSource Linear ships with a pair of floor trunnions for mounting. Note: Ensure that the trunnions are installed with the feet inward so that fixtures can be lined up end-to-end, if needed.

  • Page 5: Safety Cable

    RJ45 connectors for data in and thru Conversion cables are available from ETC. Please contact your ETC customer service representative and request part number W6538 for RJ45 to female XLR or part number W6539 for RJ45 to male XLR.

  • Page 6: Setting Up The Fixture

    ETC Installation Guide ColorSource Linear v1.7 Setting up the fixture See the fixture illustrations below and on the following page for reference. Plug power cord into the powerCON In connector on the rear of the fixture. Make any power-thru cable connections prior to applying a power source.

  • Page 7: Adjusting The Tilt

    ETC Installation Guide ColorSource Linear v1.7 Power and data connectors are paired on each Grouping button side to facilitate and LED indicators daisy-chaining Up and Down buttons Mode button User interface (display) Linear 2 and Linear 4 Powering up Press any button to wake the display. The display shows the DMX...

  • Page 8: Mode Button

    ETC Installation Guide ColorSource Linear v1.7 Mode button Pressing the Mode button activates the Presets/Sequences menu; the last active preset or sequence plays automatically. Pressing the Mode button a second time deactivates the selected preset or sequence. The display will revert to show the DMX start address.

  • Page 9: Setting The Grouping Mode

    Strobe** Lime Strobe** *Original ColorSource Linear fixture uses blue in channel 4; Deep Blue fixture uses indigo in channel 4. **Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate from 1 per second up to 33 per second.
  • Page 10 Lime Strobe** *Original ColorSource Linear fixture uses blue; Deep Blue fixture uses indigo. **Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate from 1 per second up to 33 per second.
  • Page 11 Lime Strobe** *Original ColorSource Linear fixture uses blue; Deep Blue fixture uses indigo. **Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate from 1 per second up to 33 per second.

  • Page 12: Setting Presets And Sequences

    ETC Installation Guide ColorSource Linear v1.7 Setting presets and sequences There are twelve factory-configured presets followed by five factory- configured sequences built into the fixture. From the Presets/Sequences menu, press the Up and Down buttons to scroll through the list. The sequence or preset plays immediately upon selection.

  • Page 13: Pre-Configured Presets

    ETC Installation Guide ColorSource Linear v1.7 Pre-configured presets Preset Name Preset Name 3200K White Magenta 5600K White Yellow Orange Green Light Yellow Blue Light Blue Cyan Light Pink Pre-configured sequences Sequence Name Rainbow Fast Rainbow Slow Warm Colors Fast Cool Colors Fast...

  • Page 14: Locking The User Interface

    To unlock the user interface, press and hold the Up and Down buttons simultaneously for 3 seconds. Updating the fixture software ETC recommends using UpdaterAtor software to manage software updates. UpdaterAtor Software Quick For more information on UpdaterAtor, see the Guide , which you can download for free from etcconnect.com.

  • Page 15: Installing Secondary Lenses

    1: Loosen For the Linear 2 and Linear 4 fixtures, order one accessory for each (ColorSource Linear 1 shown) 0.5 meter segment (cell) of the fixture. Spacers for secondary lenses are included with the fixture. Use these spacers to hold the accessories in position when multiple lenses are used in the Linear 2 and Linear 4 fixtures.

  • Page 16: Restoring Factory Defaults

    Verify that internal cables are properly connected. If the error persists, the fixture will need to be returned to the ETC factory; contact your local dealer to set up a repair.

  • Page 17: Using Rdm

    RDM Values Manufacturer ID: 0x6574 (Electronic Theatre Controls) Model ID: • Linear 1: 0x0209 (ETC ColorSource Linear 1) or 0x020A (ETC ColorSource Linear 1 Deep Blue) • Linear 2: 0x020D (ETC ColorSource Linear 2) or 0x020E (ETC ColorSource Linear 2 Deep Blue) •...
  • Page 18 ETC Installation Guide ColorSource Linear v1.7 ColorSource Linear v1.7 Page 18 of 20...
  • Page 19 ETC Installation Guide ColorSource Linear v1.7 ColorSource Linear v1.7 Page 19 of 20...

  • Page 20: Quick Reference

    Strobe** Lime Strobe** *Original ColorSource Linear fixture uses blue in channel 4; Deep Blue fixture uses indigo in channel 4. **Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate from 1 per second up to 33 per second.
