6 Screen displays and training videos

All the screen displays of the "plusoptiX A12" are the same. The header is above, the
information part in the middle and the navigation bar below. You can see a help page with
explanations of portrayed buttons by touching the blue "?" (1) button. By touching the blue
"?►" (2) in this new screen, you can access a list of training videos. The red "X" (3) will bring
you back to the previous page.
Help page
Training videos
(

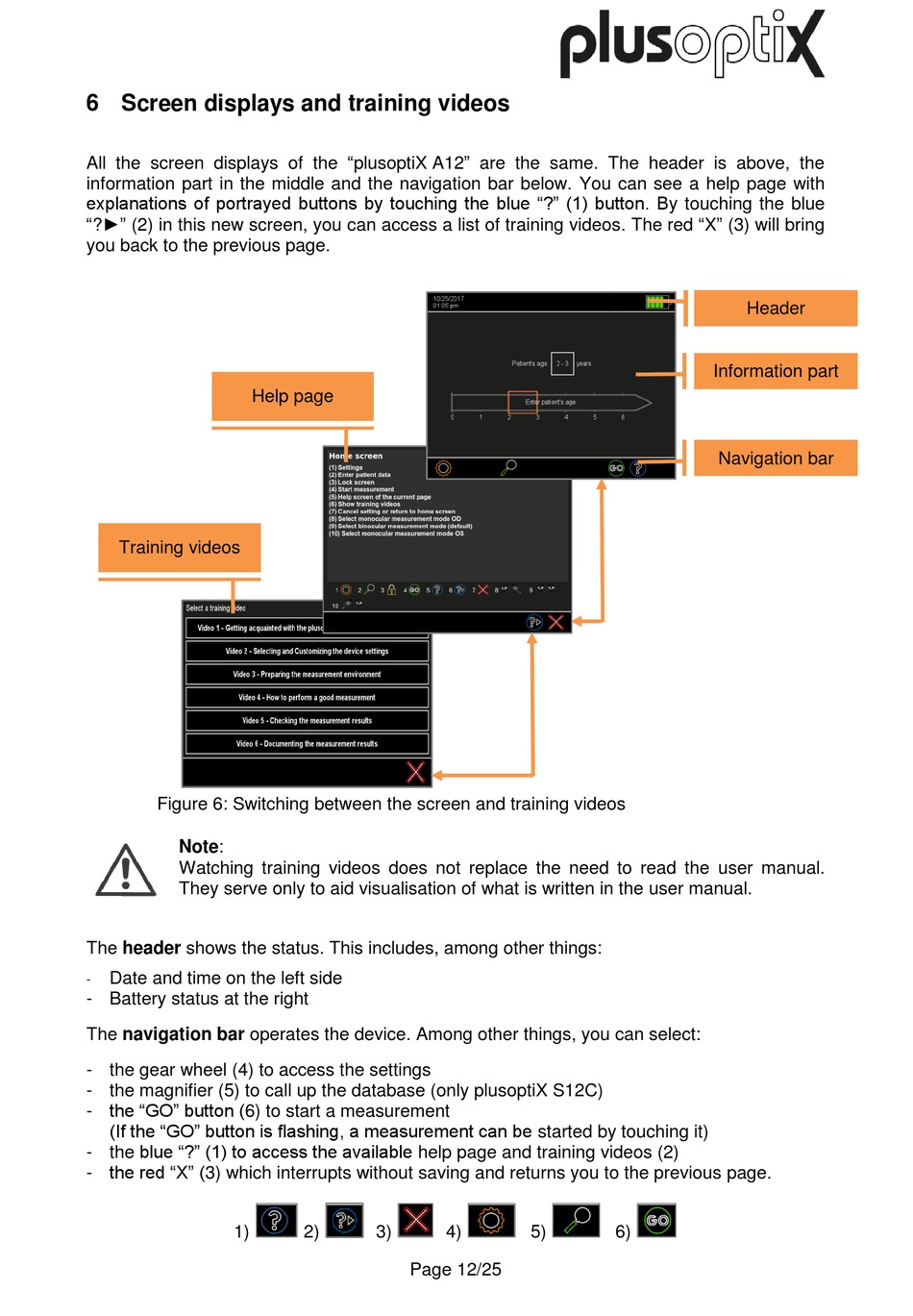

Figure 6: Switching between the screen and training videos

Note:
Watching training videos does not replace the need to read the user manual.
They serve only to aid visualisation of what is written in the user manual.
The header shows the status. This includes, among other things:
Date and time on the left side
-
- Battery status at the right
The navigation bar operates the device. Among other things, you can select:
- the gear wheel (4) to access the settings
- the magnifier (5) to call up the database (only plusoptiX S12C)
- the "GO" button (6) to start a measurement
(If the "GO" button is flashing, a measurement can be started by touching it)
- the blue "?" (1) to access the available help page and training videos (2)
- the red "X" (3) which interrupts without saving and returns you to the previous page.
1)
(
2) 3) 4)
Page 12/25
5) 6)
