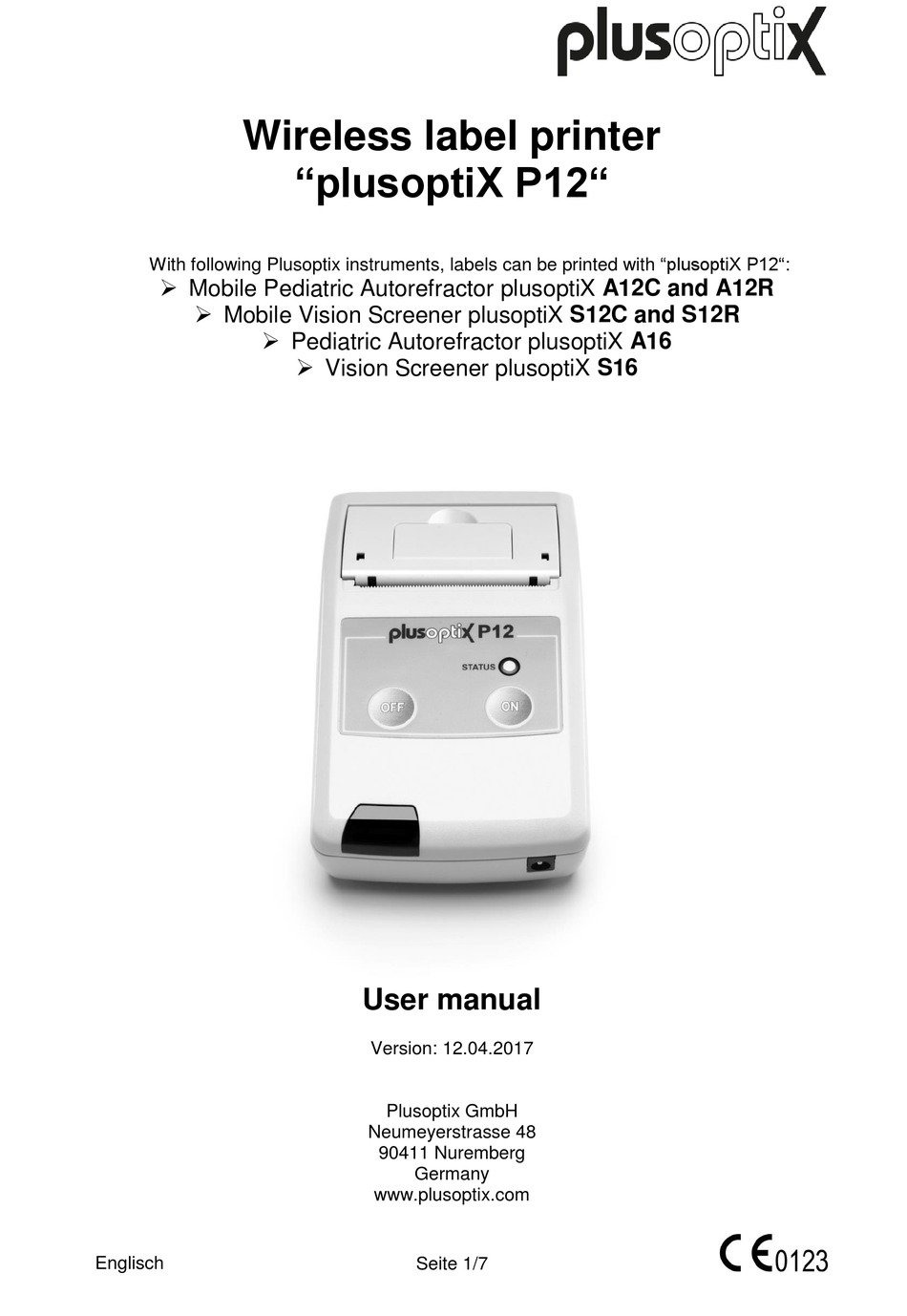

Wireless label printer
"plusoptiX P12"
With following Plusoptix instruments, labels can be printed with "plusoptiX P12":
 Mobile Pediatric Autorefractor plusoptiX A12C and A12R
 Mobile Vision Screener plusoptiX S12C and S12R
 Pediatric Autorefractor plusoptiX A16
 Vision Screener plusoptiX S16
User manual
Version: 12.04.2017
Plusoptix GmbH
Neumeyerstrasse 48
90411 Nuremberg
Germany
www.plusoptix.com
Englisch
Seite 1/7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P12 and is the answer not in the manual?

Questions and answers

Related Manuals for PLUSOPTIX P12

Summary of Contents for PLUSOPTIX P12

  • Page 1 Wireless label printer “plusoptiX P12“ With following Plusoptix instruments, labels can be printed with “plusoptiX P12“:  Mobile Pediatric Autorefractor plusoptiX A12C and A12R  Mobile Vision Screener plusoptiX S12C and S12R  Pediatric Autorefractor plusoptiX A16  Vision Screener plusoptiX S16 User manual Version: 12.04.2017...

  • Page 2: Table Of Contents

    Please read this user manual before using the “plusoptiX P12” for the first time! It explains how the device functions. Table of contents Description ........................3 Checking scope of supply ....................4 Inserting and charging rechargeable batteries ..............4 Inserting paper ....................... 5 Switching printer on and off ....................

  • Page 3: Description

    Description The “plusoptiX P12“ is a wireless, battery-operated thermal printer with infrared interface. It is not included in the scope of delivery and has to be ordered separately. Attention: The printer drivers are pre-installed on all “plusoptiX 12” devices from the supplement “01D”...

  • Page 4: Checking Scope Of Supply

    1. Checking scope of supply The scope of delivery includes the “plusoptiX P12“, four rechargeable Nickel-metal hydride NiMH/AA HR6 batteries and a roll of self-adhesive labels. For charging the batteries, use the medical power supply MES30B-3P1J. That is the same power supply that is also used for charging the batteries of the Plusoptix device.

  • Page 5: Inserting Paper

    To charge the batteries use the medical power supply unit MES30B-3P1J. This is the same power supply unit that is also used to charge the batteries of the Plusoptix device. Once you have inserted the batteries, close the cover of the battery compartment and place the printer in front of you.

  • Page 6: Printing

    After each measurement with the Plusoptix device, any number of labels for documenting the measurement results can be printed out. To do so, align the Plusoptix device with the infrared receiver of the printer. The distance between Plusoptix device and the printer should be approximately 1 m (3,28 ft).

  • Page 7: Technical Details

    7. Technical details Attention: For charging the rechargeable batteries, exclusively use the power supply MES30B-3P1J supplied with your Plusoptix device. Interface IR-receiver Temperature 0 to +50°C Storage Humidity 10 to 80% non-condensing Temperature +10 to +50°C Operation Humidity 20 to 80% non-condensing Dimensions 159.6 x 89.6 x 45.6 mm...
