Plusoptix GmbH · Neumeyerstr. 48 · 90411 Nuremberg · Germany · www.plusoptix.com

Software-update preparation

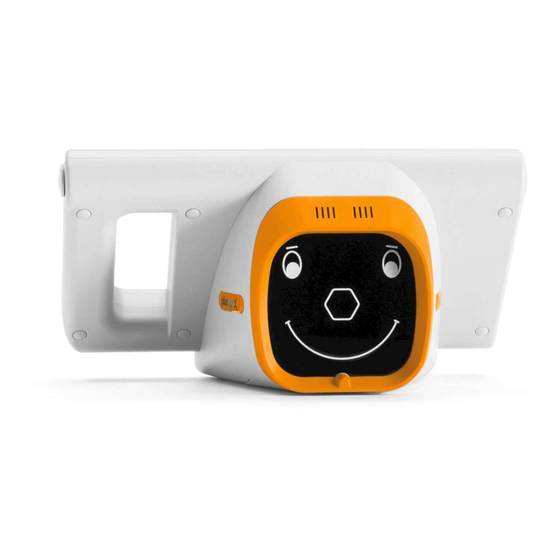

plusoptiX S12C

Prepare an empty SD card with a minimum capacity of 1 GB.

Click on the download-link with the newest software update which you can find on our

homepage and save the file on your computer.

You will need the following tools to make an update for the plusoptiX 12:

Win32Diskimager

and

7Zip 32Bit

7Zip

64Bit.

1. Please extract the downloaded 7z-file to somewhere using 7zip. You will get a file ending

with .img

2. Insert an empty at least 1 GB large SD-Card, it will be mounted to a volume letter like F:

3. Open with win32diskimager the .img-file and select the SD-Card (F:) as destination and

proceed.

4. When finished you can insert for testing the SD-Card into a switched off plusoptiX S12C

and switch it on. You will get a message, whether to make an update instead of the normal

software.

Seite 1 von 2

MS 21.04.2016

Table of Contents

Do you have a question about the S12C and is the answer not in the manual?

Page 1 3. Open with win32diskimager the .img-file and select the SD-Card (F:) as destination and proceed. 4. When finished you can insert for testing the SD-Card into a switched off plusoptiX S12C and switch it on. You will get a message, whether to make an update instead of the normal software.
Page 2 Plusoptix GmbH · Neumeyerstr. 48 · 90411 Nuremberg · Germany · www.plusoptix.com Software update instructions plusoptiX S12C Switch device off. Connect 12V power supply. Insert software update SD card with connectors facing up. 12V power On/Off supply SD card button SD card Switch device on.
