PLUSOPTIX S12C Short Manual

plusoptiX S12C & S12R – Short Manual

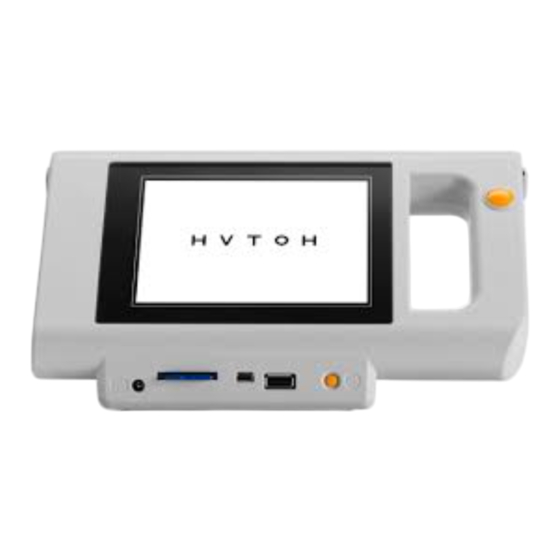

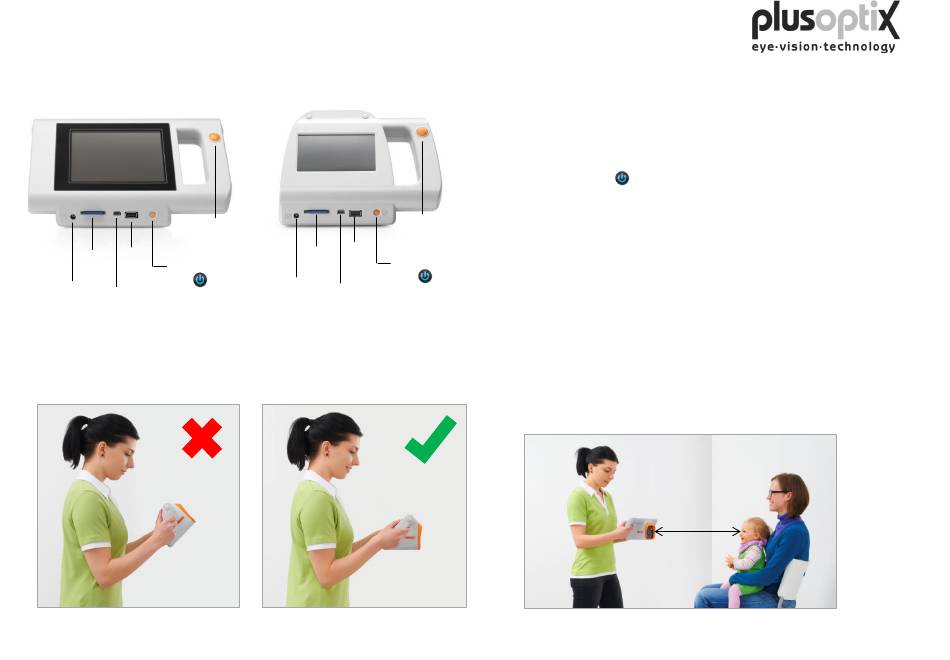

plusoptiX S12C
Touchscreen
Shutter
button
SD USB
On/Off button
card
12VDC Mini
input USB
Handling of the device
wrong
plusoptiX S12R
Touchscreen
Shutter
button
SD
USB
On/Off button
card
12VDC Mini
input USB
right
Measurement requirements
1. The examination room should only be slightly illuminated, i.e. no direct
daylight. Halogen spotlights and light bulbs are emitting infrared light and
should be switched off during measurements. Fluorescent lamps and
energy-saving lamps are permitted for lightning the room.
2. Please make sure that the child is not distracted during the measurement.
3. Switch on the device . When the start screen appears, please select the
age-group of the child and start the measurement by pressing the orange
measurement button next to the screen.
4. The measurement is performed from a distance of one meter (+/- 5 cm)
from the child. Start the measurement from approximately 1,2 m distance
to the child. Move forward until the pupils are clear and outlined with
green circles. At this moment the sound will appear again to signalize that
the measurement starts now.
5. It is important to hold the camera on eye-level when performing a
measurement. Please make sure that the pupils are not covered by
eyelashes, the eyelid or hair. If no screening result appears, a status
message will be displayed. In this case please follow the instructions,
outlined on the rear side of this page.
1m ± 5 cm
English, MS, 20.01.2016
