BOOMERANG EP

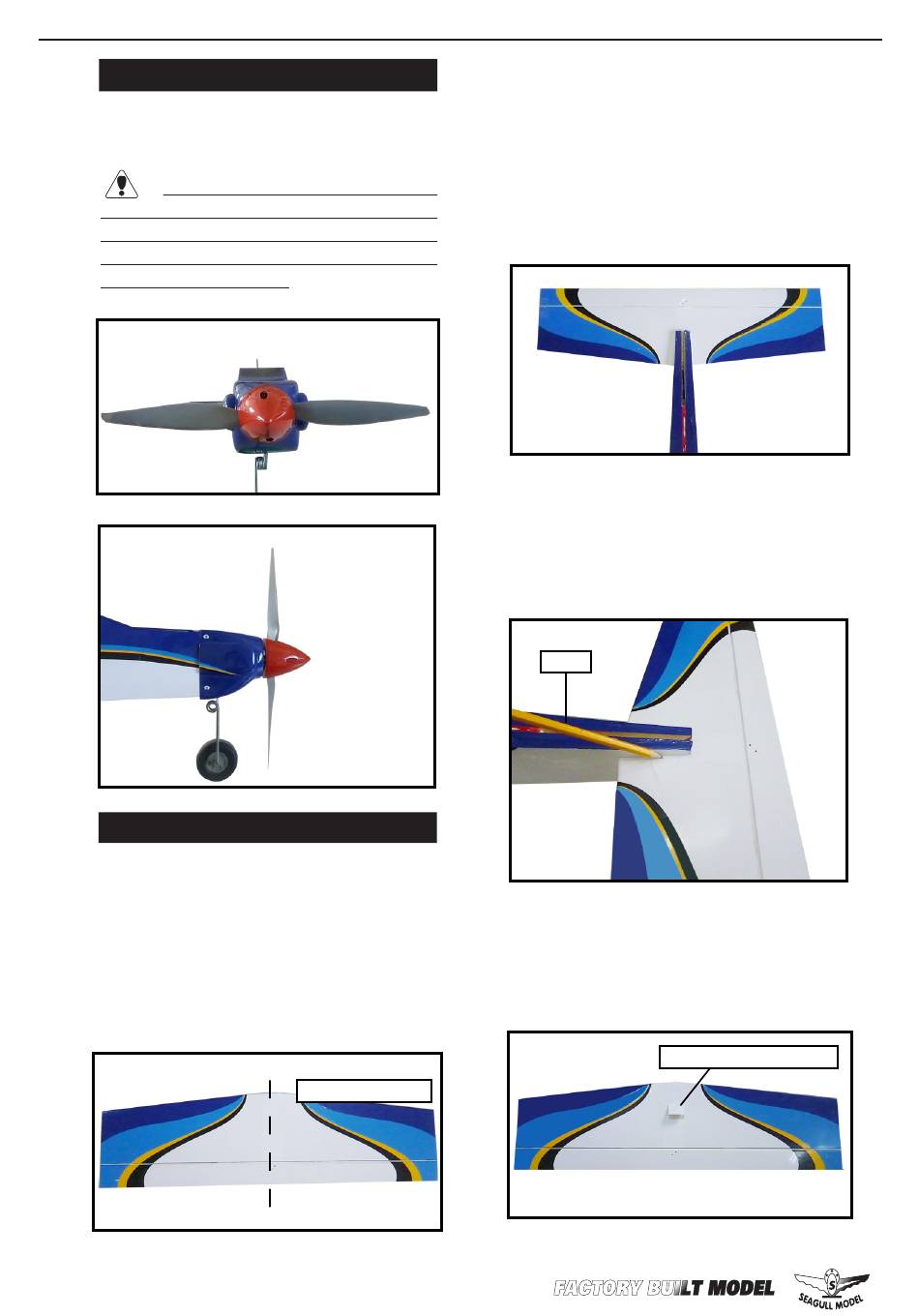

INSTALLING THE SPINNER.

Install the spinner backplate, propeller and
spinner cone.
The propeller should not touch any
part of the spinner cone. If it does, use a
sharp modeling knife and carefully trim
away the spinner cone where the propeller
comes in contact with it.

HORIZONTAL STABILIZER.

1) Using a ruler and a pen, locate the center-
line of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge
of the stabilizer.
10
Draw center line
Instruction Manual.
2) Using a modeling knife, carefully remove
the covering from over the vertical stabilizer
mounting slot in the top of the fuselage.
3) Slide the stabilizer into place in the precut
slot in the rear of the fuselage. The stabilizer
should be pushed firmly against the front of
the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
Pen.
5) Remove the stabilizer. Using the lines you
just drew as a guide, carefully remove the
covering from between them using a mod-
eling knife.
Remove the covering
