BOOMERANG EP

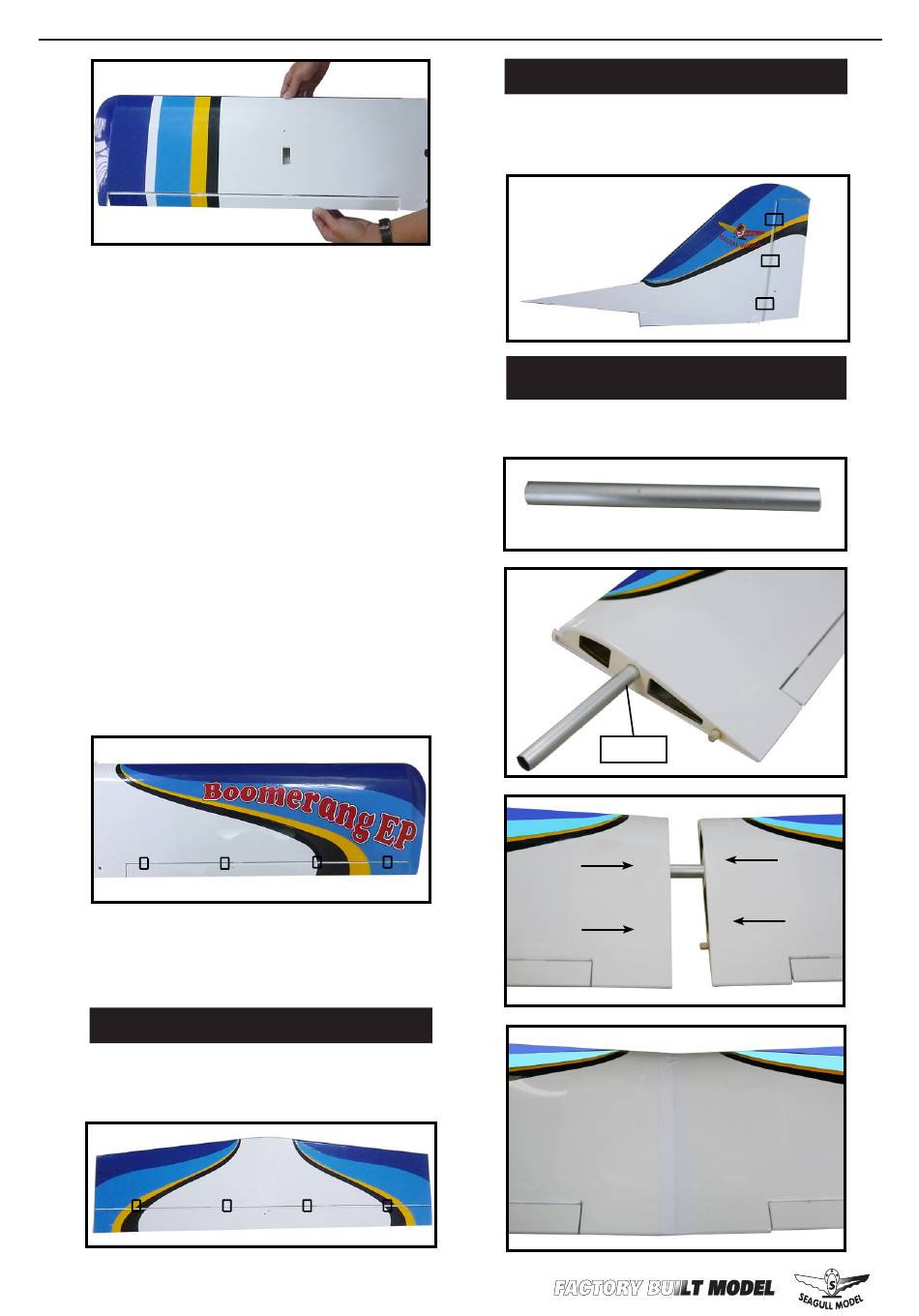

5) Turn the wing panel over and deflect the
aileron in the opposite direction from the
opposite side. Apply thin C/A glue to each
hinge, making sure that the C/A pene-
trates into both the aileron and wing panel.
6) Using C/A remover/debonder and a pa-
per towel, remove any excess C/A glue that
may have accumulated on the wing or in the
aileron hinge area.
7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully ap-
plying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Note : Work the aileron up and down sev-
eral times to "work in" the hinges
and check for proper movement.

HINGING THE ELEVATOR.

Glue the elevator hinges in place using the
same techniques used to hinge the ailerons.
4
Instruction Manual.

HINGING THE RUDDER.

Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
WING ASSEMBLY.
See below pictures.
Aluminium wing tube
Epoxy.
