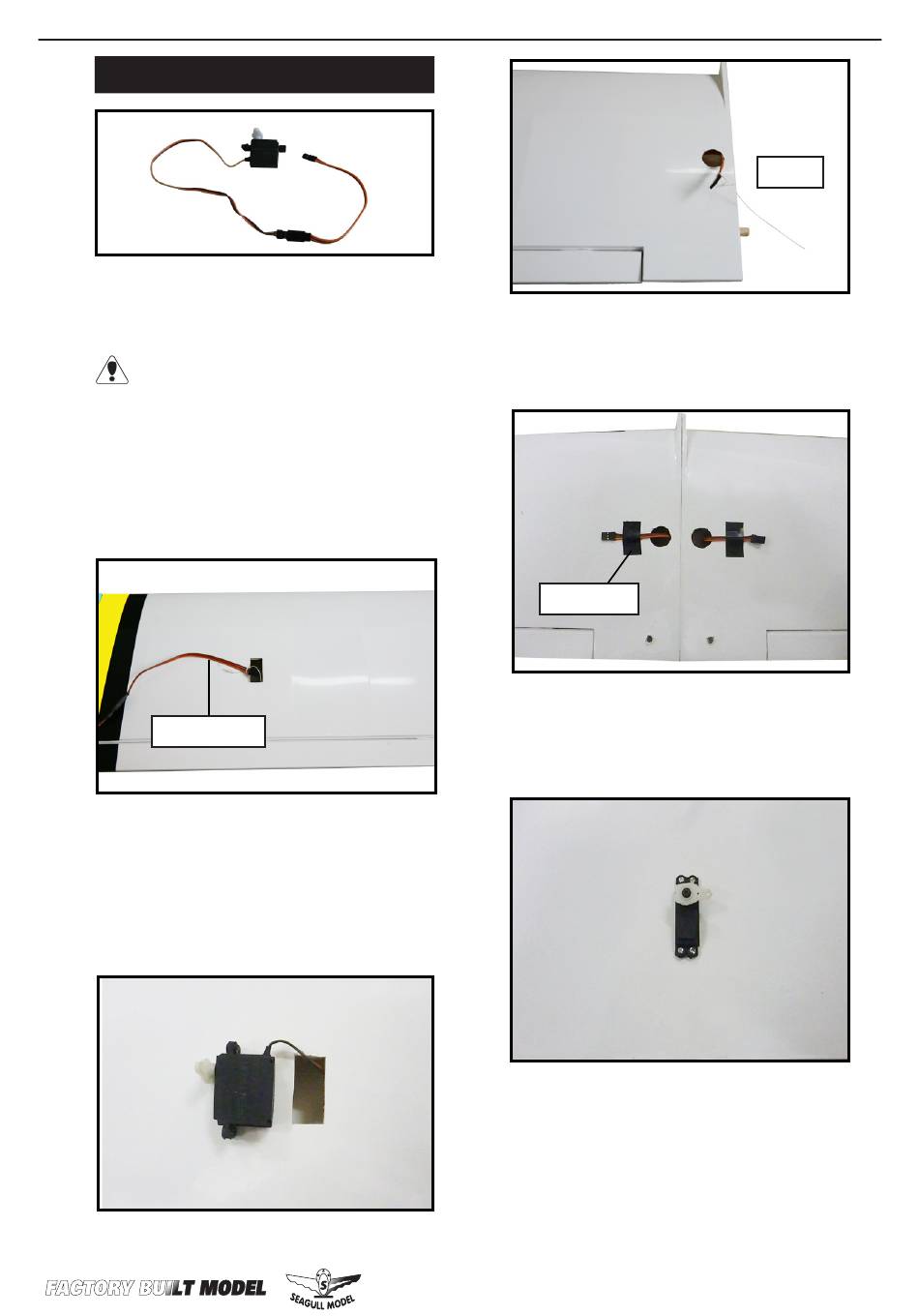

INSTALLING THE AILERON SERVO.

.
1) Install the rubber grommets and brass
collets onto the aileron servo. Test fit the
servo into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut openingin
the mount. The notch in the sides of the mount
allow the servo lead to pass through.
2) Using a small weight (Weighted fuel pick-
up works well) and thread, feed the string
through the wing as indicated.
Electric wire.
3) Attach servo lead to the aileron servo. At-
tach the string to the servo lead and care-
fully thread it though the wing. Once you
have thread the lead throught the wing, re-
move the string so it can use for the other
servo lead.
WWW.SEAGULLMODELS.COM
.
.
4) Tape the servo lead to the wing to prevent
it from falling back into the wing.
Plastic tape.
5) Reinstall the servo into the servo mount
and secure the servo inplace using the wood
screws provided with you radio system.
Repeat the procedure for the other wing
half.
Thread.
